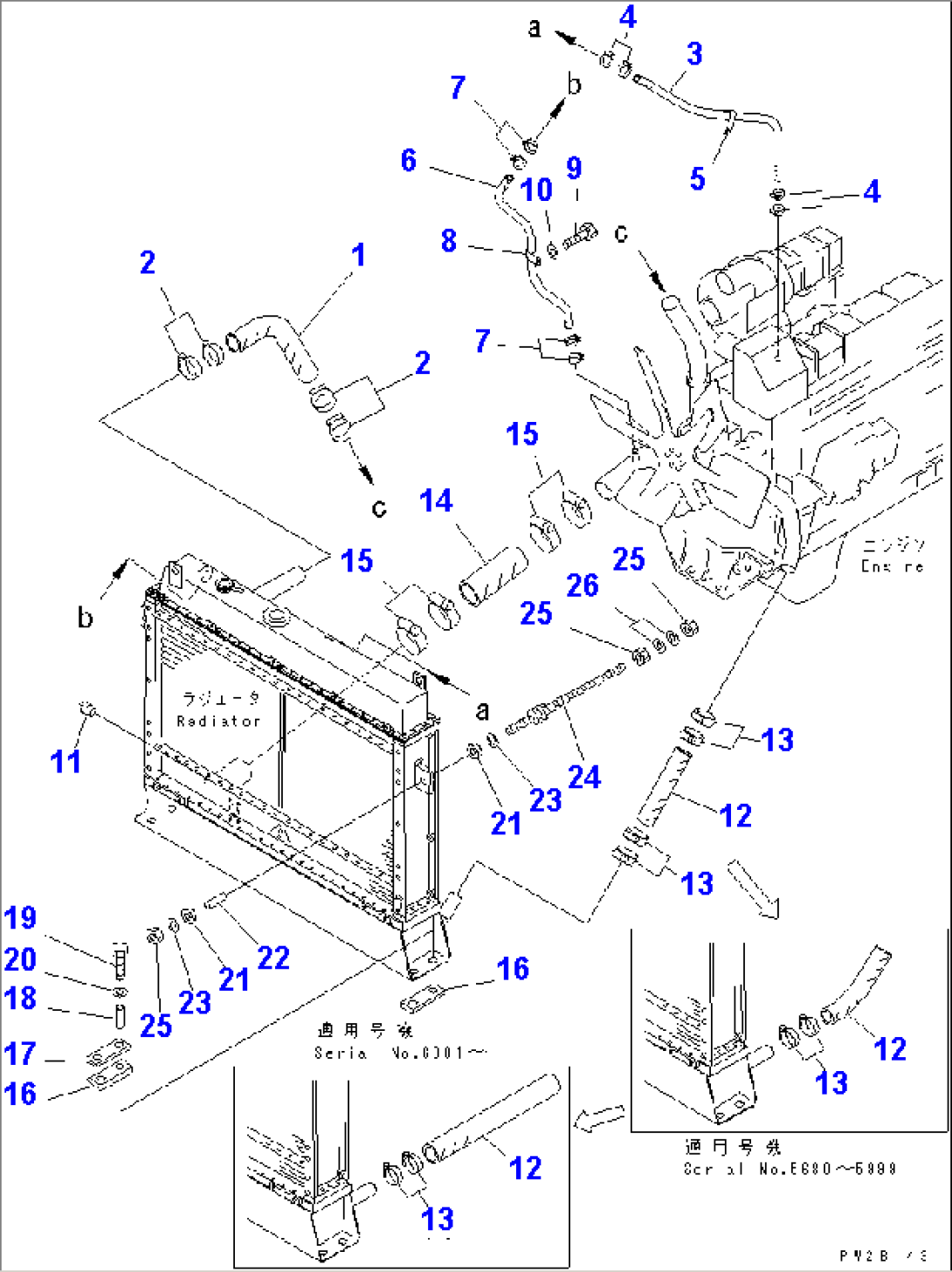

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-03-6E210 | HOSE | 5485- | |
| 2 | 07289-00080 | CLAMP | 5485- | |
| 3 | 09483-40310 | HOSE | 5485- | |
| 4 | 07281-10197 | CLAMP | 5485- | |
| 5 | 08036-01414 | CLIP | 5485- | |
| 6 | 09483-46110 | HOSE | 5485- | |
| 7 | 07281-10419 | CLAMP | 5485- | |
| 8 | 566-03-12620 | CLAMP | 5485- | |
| 9 | 565-95-18260 | COLLAR | 5485- | |
| 10 | 01010-81060 | BOLT | 5485- | |
| 11 | 07042-70415 | PLUG | 5485- | |
| 12 | 562-03-12380 | HOSE | 6001- | |
| 566-03-6E230 | HOSE | 5680-5999 | ||
| 566-03-6E220 | HOSE | 5485-5679 | ||
| 13 | 07289-00070 | CLAMP | 5485- | |
| 14 | 566-03-42150 | HOSE | 6001- | |
| 566-03-82120 | HOSE | 5485-5999 | ||
| 15 | 07289-00105 | CLAMP | 5485- | |
| 16 | 285-03-11120 | CUSHION | 5485- | |
| 17 | 285-03-11140 | PLATE | 5485- | |
| 18 | 566-03-42270 | SPACER | 5485- | |
| 19 | 01010-81680 | BOLT | 5485- | |
| 20 | 01643-31645 | WASHER | 5485- | |
| 21 | 285-03-11160 | CUSHION | 5485- | |
| 22 | 566-03-42270 | SPACER | 5485- | |
| 23 | 285-03-11170 | PLATE | 5485- | |
| 24 | 569-03-61780 | ROD | 5485- | |
| 25 | 01582-11613 | NUT | 5485- | |
| 26 | 01643-31645 | WASHER | 5485- |
