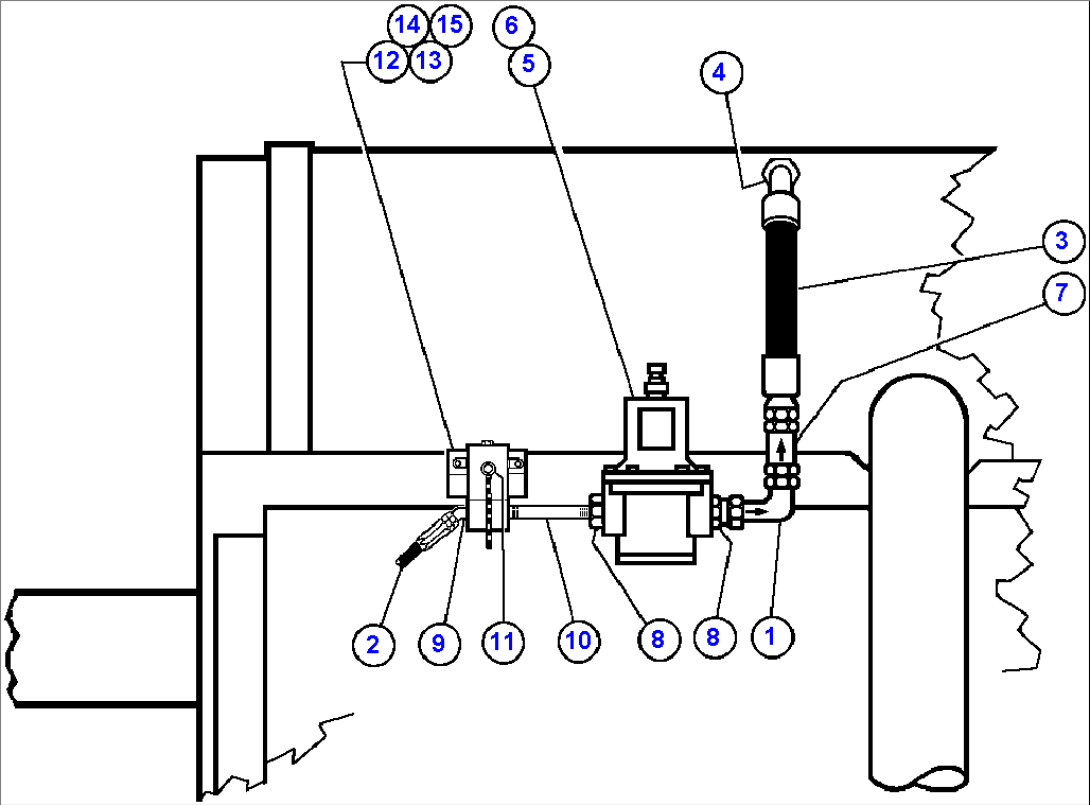

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SC3265 | ELBOW, STREET - 90 DEG | ||
| 2 | VM4237 | HOSE | ||
| 3 | VM4217 | HOSE | ||
| 4 | VH4272 | FITTING, TUBE | ||
| 5 | PB3215 | REGULATOR, PRESSURE (SEE INDEX) | ||
| 5 | TM6380 | BRACKET, MOUNTING | ||
| 6 | WA2853 | SELF-TAP SCREW - #12 | ||
| 7 | PB6042 | VALVE, CHECK | ||
| 8 | SD5209 | BUSHING, PIPE | ||
| 9 | TH6086 | FITTING, ELBOW - 45 DEG | ||
| 10 | R3172 | NIPPLE, LONG | ||
| 11 | VH2584 | TERMINAL, RING | ||
| 12 | VZ3502 | SOLENOID VAVLE (SEE INDEX) | ||
| 13 | VM1464 | MACHINE SCREW - #10 - 24NC X 5/8" | ||
| 14 | DC3101 | LOCKWASHER - #10 | ||
| 15 | EB1783 | BRACKET |
