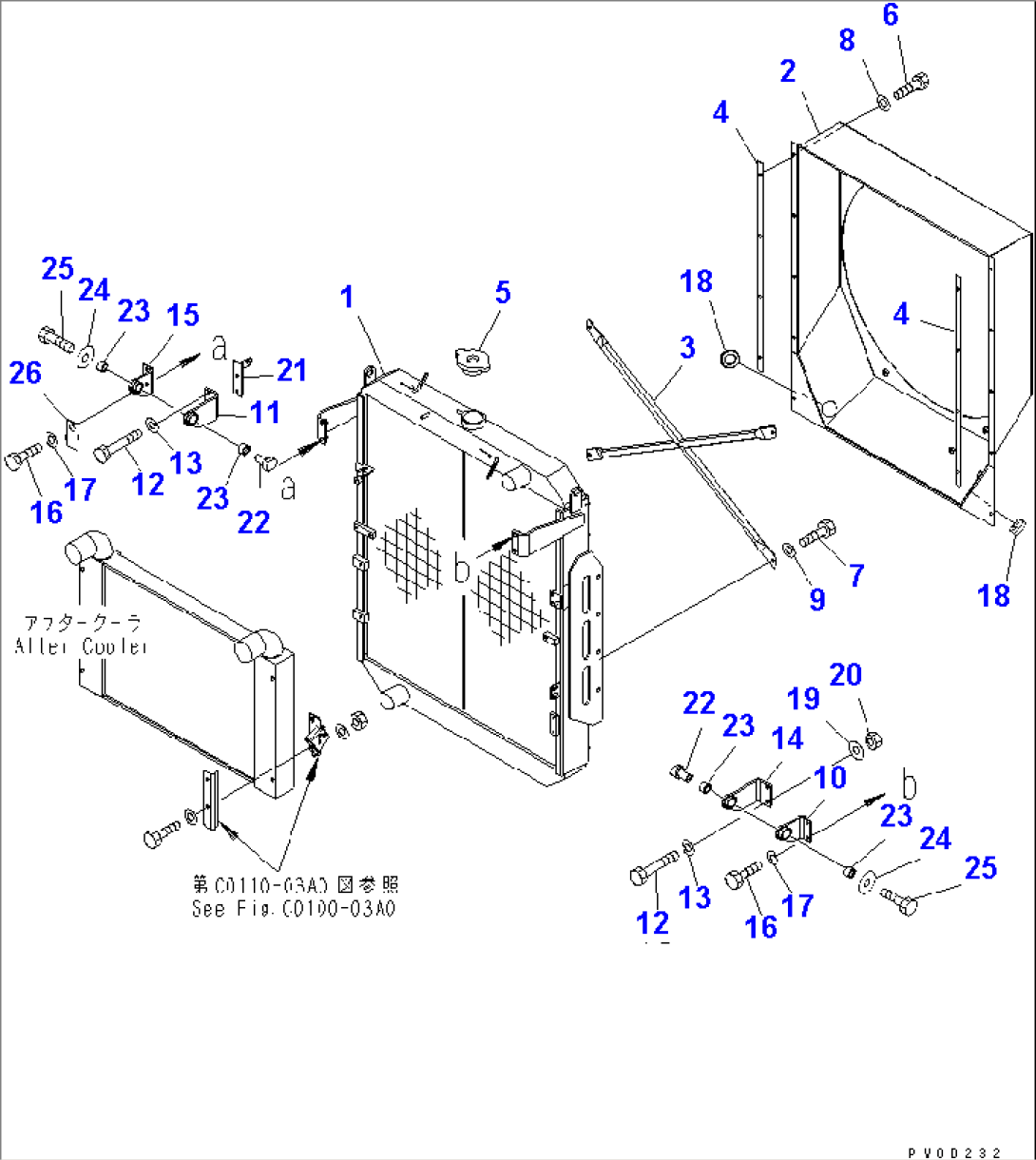

| Item | Part No. | Part Name | Qty | Serial No. |
| 421-03-31115 | RADIATOR ASS'Y | 80038- | ||
| 421-03-31114 | RADIATOR ASS'Y | 80001-80037 | ||
| 1 | 421-03-31551 | CORE ASS'Y | 80038- | |
| 1 | 421-03-31550 | CORE ASS'Y | 80001-80037 | |
| 2 | 421-03-31560 | SHROUD | 80001- | |
| 3 | 421-03-31570 | STAY | 80001- | |
| 4 | 421-03-31580 | PACKING | 80001- | |
| 5 | 416-03-11170 | CAP | 80001- | |
| 6 | 01010-D0820 | BOLT | 80001- | |
| 7 | 01010-D1025 | BOLT | 80001- | |
| 8 | 01643-70823 | WASHER | 80001- | |
| 9 | 01643-71032 | WASHER | 80001- | |
| 10 | 421-03-32330 | BRACKET | 80001- | |
| 11 | 421-03-32340 | BRACKET | 80001- | |
| 12 | 01011-81010 | BOLT | 80001- | |
| 13 | 01643-31032 | WASHER | 80001- | |
| 14 | 421-03-32350 | BRACKET | 80001- | |
| 15 | 421-03-32360 | BRACKET | 80001- | |
| 16 | 01010-81030 | BOLT | 80001- | |
| 17 | 01643-31032 | WASHER | 80001- | |
| 18 | 09415-03614 | CAP | 80001- | |
| 19 | 424-09-12650 | WASHER | 80001- | |
| 20 | 01580-11008 | NUT | 80001- | |
| 21 | 421-03-32380 | BRACKET | 80001- | |
| 22 | 421-03-32370 | SHAFT | 80001- | |
| 23 | 06124-02520 | BEARING | 80001- | |
| 24 | 415-64-13120 | WASHER | 80001- | |
| 25 | 01010-81016 | BOLT | 80001- | |
| 26 | 424-04-31190 | BRACKET | 80001- |
