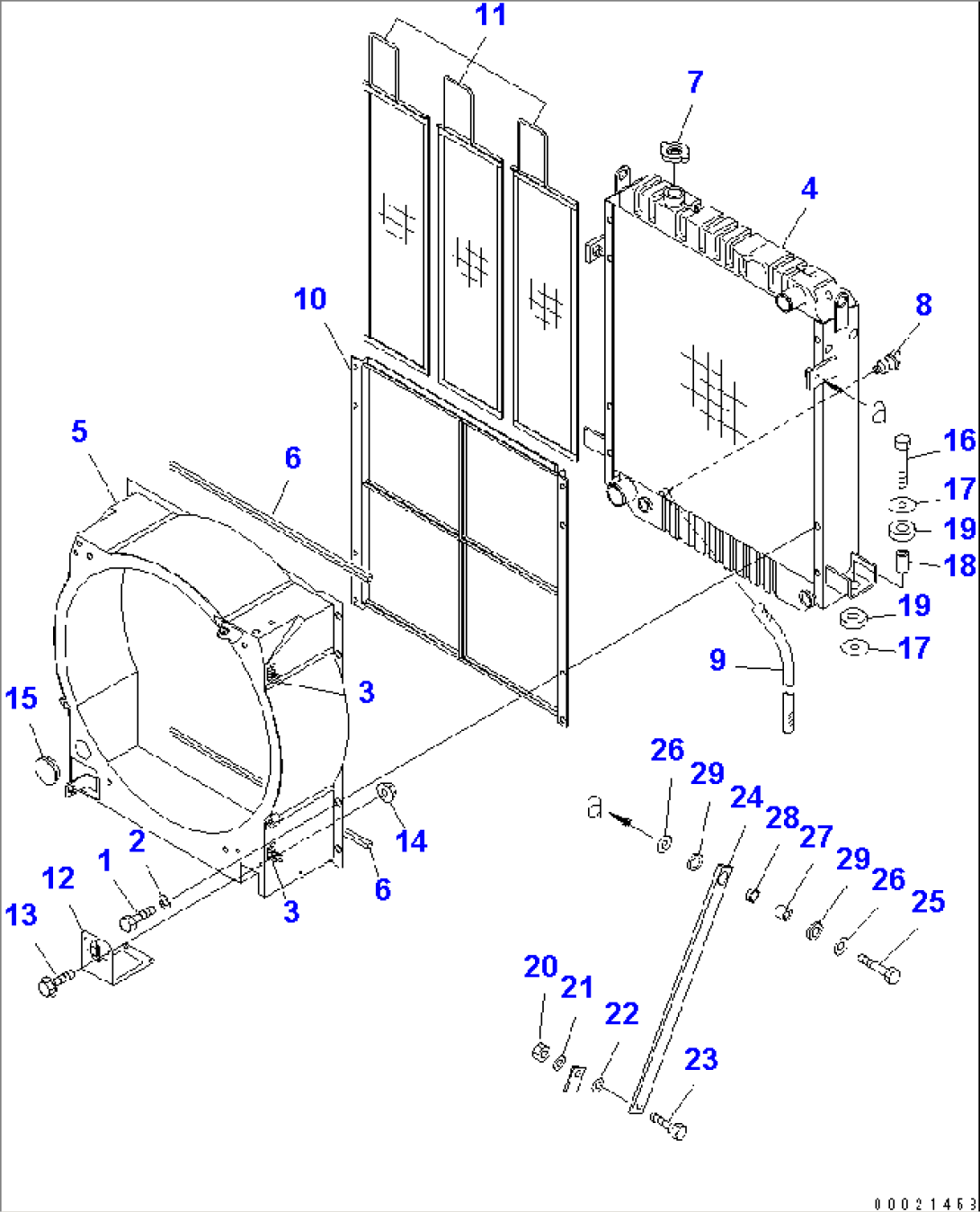

| Item | Part No. | Part Name | Qty | Serial No. |
| 415-03-21370 | RADIATOR | 12001-@ | ||
| 1 | 01010-80820 | BOLT | 12001-@ | |
| 2 | 01643-30823 | WASHER | 12001-@ | |
| 3 | 08036-D1630 | CLIP | 12001-@ | |
| 4 | 415-03-21330 | CORE ASS'Y | 12001-@ | |
| 5 | 415-03-21340 | SHROUD | 12001-@ | |
| 6 | 415-03-21360 | PACKING | 12001-@ | |
| 7 | 416-03-11170 | CAP | 10001-@ | |
| 8 | 415-03-11150 | COCK | 10001-@ | |
| 8 | 415-03-11160 | O-RING | 10001-@ | |
| 9 | 416-03-11151 | HOSE | 12001-@ | |
| 10 | 415-03-21280 | NET | 10001-@ | |
| 11 | 415-03-21380 | NET | 12001-@ | |
| 12 | 415-03-21310 | COVER | 10001-@ | |
| 13 | 01435-00612 | BOLT | 10001-@ | |
| 14 | 01584-00605 | NUT | 10001-@ | |
| 15 | 09415-03614 | CAP | 10001-@ | |
| 16 | 01010-81265 | BOLT | 10001-@ | |
| 17 | 416-03-11210 | WASHER | 10001-@ | |
| 18 | 415-03-11210 | SPACER | 10001-@ | |
| 19 | 416-03-11221 | CUSHION | 10001-@ | |
| 20 | 01580-01210 | NUT | 10001-@ | |
| 21 | 01643-31232 | WASHER | 10001-@ | |
| 22 | 01643-31232 | WASHER | 10001-@ | |
| 23 | 416-03-11281 | BOLT | 11607-@ | |
| 24 | 415-03-21151 | PLATE | 11607-@ | |
| 25 | 01010-81245 | BOLT | 10001-@ | |
| 26 | 419-43-17920 | WASHER | 10001-@ | |
| 27 | 416-03-11270 | SPACER | 10001-@ | |
| 28 | 416-03-11250 | CUSHION | 10001-@ | |
| 29 | 416-03-11260 | CUSHION | 10001-@ |
