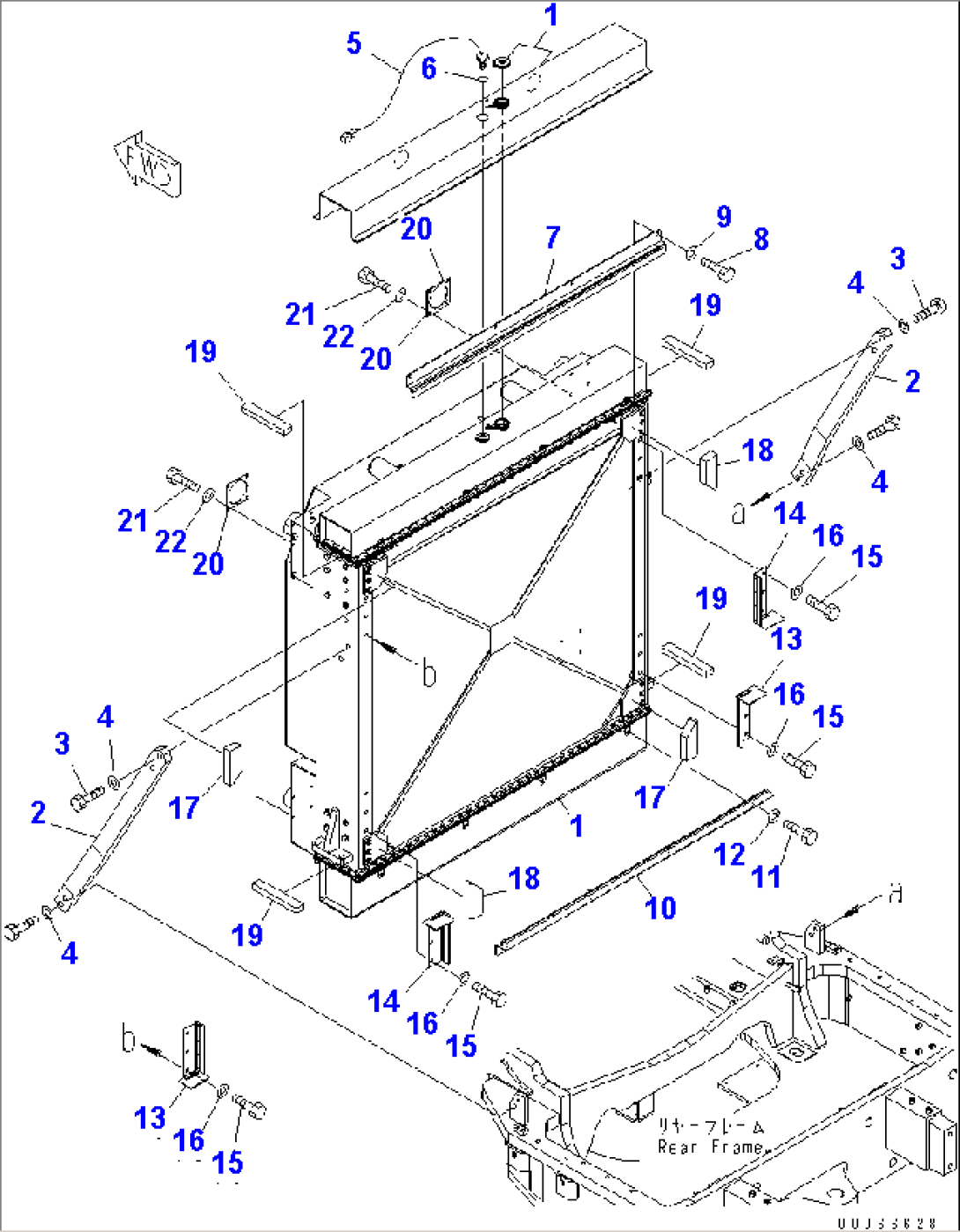

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (427-03-22702) | RADIATOR ASS'Y | 60001- | |
| 2 | 427-03-29111 | SUPPORT | 60001- | |
| 3 | 01010-62090 | BOLT | 60001- | |
| 4 | 01643-32060 | WASHER | 60001- | |
| 5 | 7861-93-4500 | SENSOR,FUEL LEVEL | 60001- | |
| 6 | 07002-23634 | O-RING | 60001- | |
| 7 | 427-03-32141 | BAFFLE | 60001- | |
| 8 | 01010-D1225 | BOLT | 60001- | |
| 9 | 01643-71232 | WASHER | 60001- | |
| 10 | 427-03-22851 | BAFFLE | 60001- | |
| 11 | 01010-D1225 | BOLT | 60001- | |
| 12 | 01643-71232 | WASHER | 60001- | |
| 13 | 427-03-22862 | BAFFLE | 60001- | |
| 14 | 427-03-22872 | BAFFLE | 60001- | |
| 15 | 01010-D1230 | BOLT | 60001- | |
| 16 | 01643-71232 | WASHER | 60001- | |
| 17 | 427-03-32170 | SEAL | 60001- | |
| 18 | 427-03-32180 | SEAL | 60001- | |
| 19 | 427-03-32240 | SEAL | 60001- | |
| 20 | 427-03-22880 | PLATE | 60001- | |
| 21 | 01010-80820 | BOLT | 60001- | |
| 22 | 01643-30823 | WASHER | 60001- |
