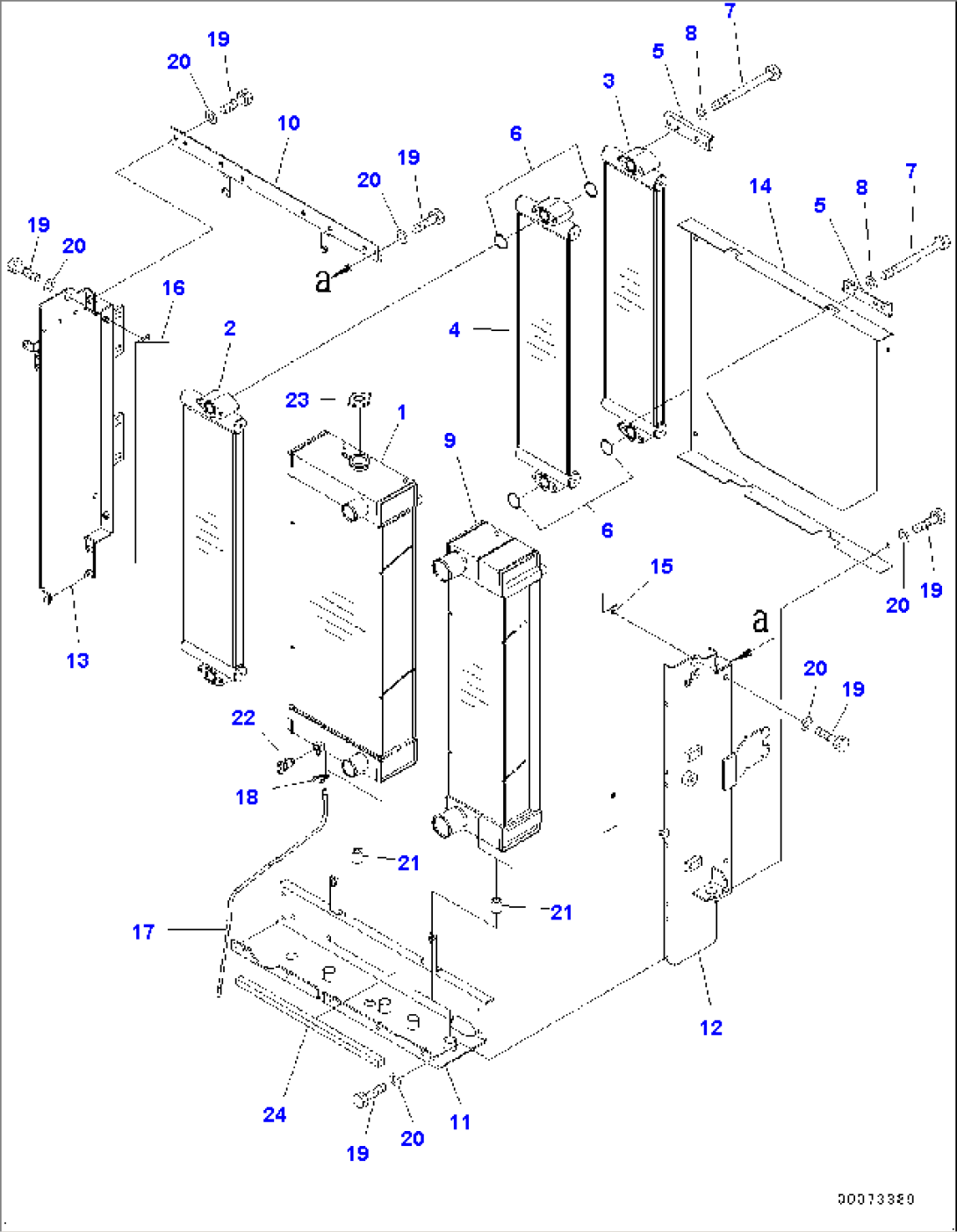

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-48102 | Radiator Assembly | 75225-77724 | ||
| 1 | 418-03-48151 | Radiator | 75225-77724 | |
| 1 | 418-03-48162 | Oil Cooler | 75225-@ | |
| 2 | 418-03-48260 | Oil Cooler | 75225-@ | |
| 3 | 418-03-48270 | Oil Cooler | 75225-@ | |
| 4 | 418-03-48280 | Oil Cooler | 75225-@ | |
| 5 | 419-03-31531 | Plate | 75225-@ | |
| 6 | 07000-13035 | O-ring | 75225-@ | |
| 7 | 01011-81045 | Bolt | 75225-@ | |
| 8 | 01643-31032 | Washer | 75225-@ | |
| 9 | 418-03-48171 | Aftercooler | 75225-@ | |
| 10 | 418-03-41410 | Plate | 75225-77724 | |
| 11 | 418-03-48111 | Frame | 75225-77724 | |
| 12 | 418-03-48132 | Frame | 75225-@ | |
| 13 | 418-03-48122 | Frame | 75225-@ | |
| 14 | 418-03-41450 | Shroud | 75225-@ | |
| 15 | 419-03-31460 | Plate | 75225-@ | |
| 16 | 419-03-31470 | Plate | 75225-@ | |
| 17 | 418-03-31570 | Hose | 75225-@ | |
| 18 | 20Y-03-11330 | Clip | 75225-@ | |
| 19 | 01010-81020 | Bolt | 75225-77724 | |
| 20 | 01643-31032 | Washer | 75225-77724 | |
| 21 | 418-03-31480 | Cushion | 75225-77724 | |
| 22 | 205-03-62660 | Plug | 75225-@ | |
| 07000-11007 | O-ring | 75225-@ | ||
| 23 | 416-S14-2270 | Cap | 75225-@ | |
| 24 | 418-03-41360 | Rubber | 75225-@ |
