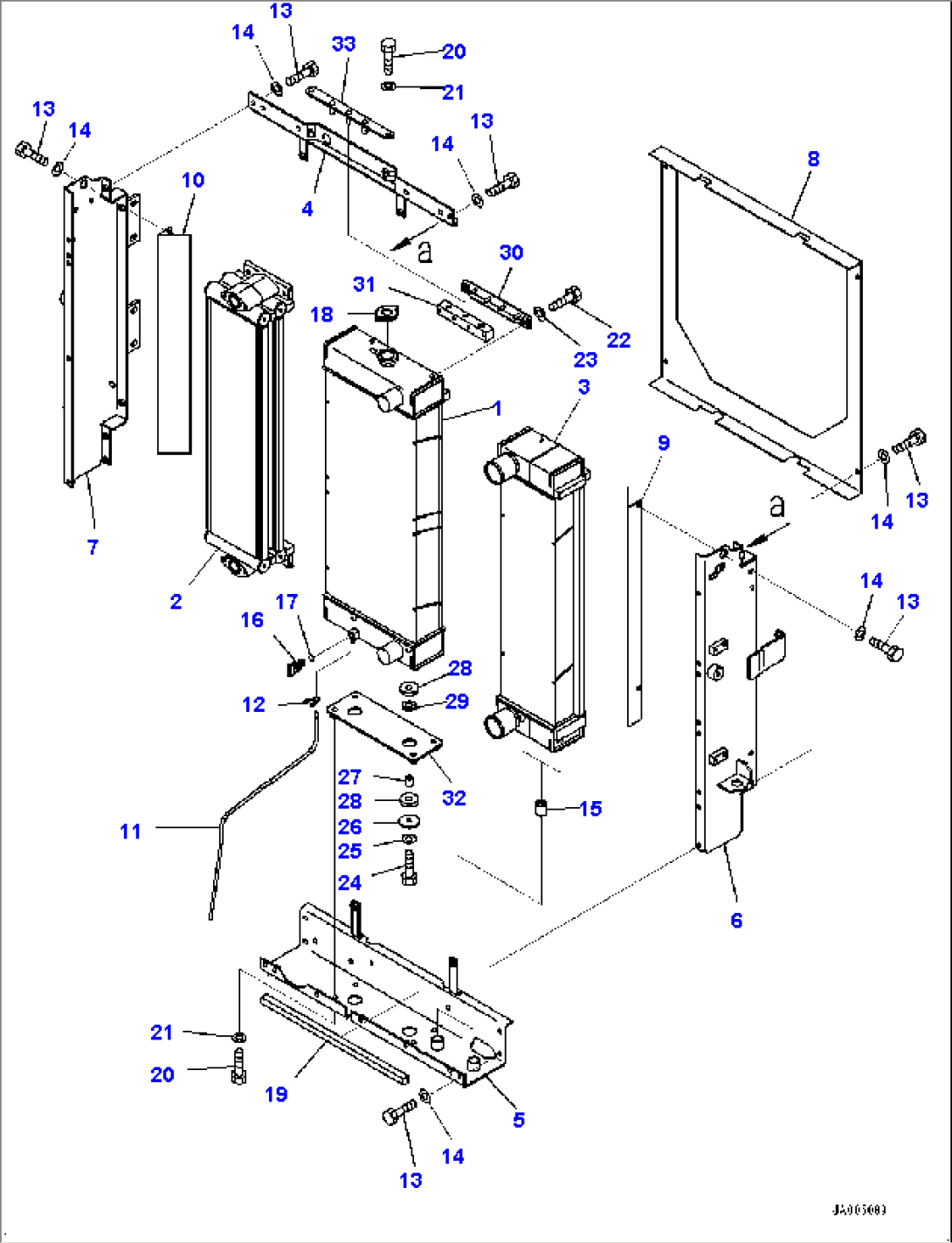

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-41103 | Radiator Assembly | 76161- | ||
| 418-03-41102 | Radiator Assembly | 75811-76160 | ||
| 1 | 418-03-41140 | Radiator | 75811- | |
| 2 | 418-03-41121 | Oil Cooler | 75746- | |
| 3 | 418-03-41131 | Aftercooler | 76161- | |
| 3 | 418-03-41130 | Aftercooler | 75053-76160 | |
| 4 | 418-03-41470 | Plate | 75811- | |
| 5 | 418-03-41480 | Frame | 75811- | |
| 6 | 418-03-41430 | Frame | 75053- | |
| 7 | 418-03-41440 | Frame | 75053- | |
| 8 | 418-03-41450 | Shroud | 75053- | |
| 9 | 419-03-31460 | Plate | 75053- | |
| 10 | 419-03-31470 | Plate | 75053- | |
| 11 | 418-03-31570 | Hose | 75053- | |
| 12 | 20Y-03-11330 | Clip | 75053- | |
| 13 | 01010-81020 | Bolt | 75811- | |
| 14 | 01643-31032 | Washer | 75811- | |
| 15 | 418-03-31480 | Cushion | 75811- | |
| 16 | 205-03-62660 | Plug | 75053- | |
| 17 | 07000-11007 | O-ring | 75053- | |
| 18 | 416-S14-2270 | Cap | 75053- | |
| 19 | 418-03-41360 | Rubber | 75053- | |
| 20 | 01010-81025 | Bolt | 75811- | |
| 21 | 01643-31032 | Washer | 75811- | |
| 22 | 01010-81030 | Bolt | 75811- | |
| 23 | 01643-31032 | Washer | 75811- | |
| 24 | 01010-81045 | Bolt | 75811- | |
| 25 | 01643-31032 | Washer | 75811- | |
| 26 | 11Y-03-32260 | Washer | 75811- | |
| 27 | 22T-56-23290 | Spacer | 75811- | |
| 28 | 423-03-41370 | Cushion | 75811- | |
| 29 | 423-03-41430 | Cushion | 75811- | |
| 30 | 418-03-41610 | Plate | 75811- | |
| 31 | 418-03-41620 | Rubber | 75811- | |
| 32 | 418-03-41630 | Plate | 75811- | |
| 33 | 418-03-41650 | Plate | 75811- |
