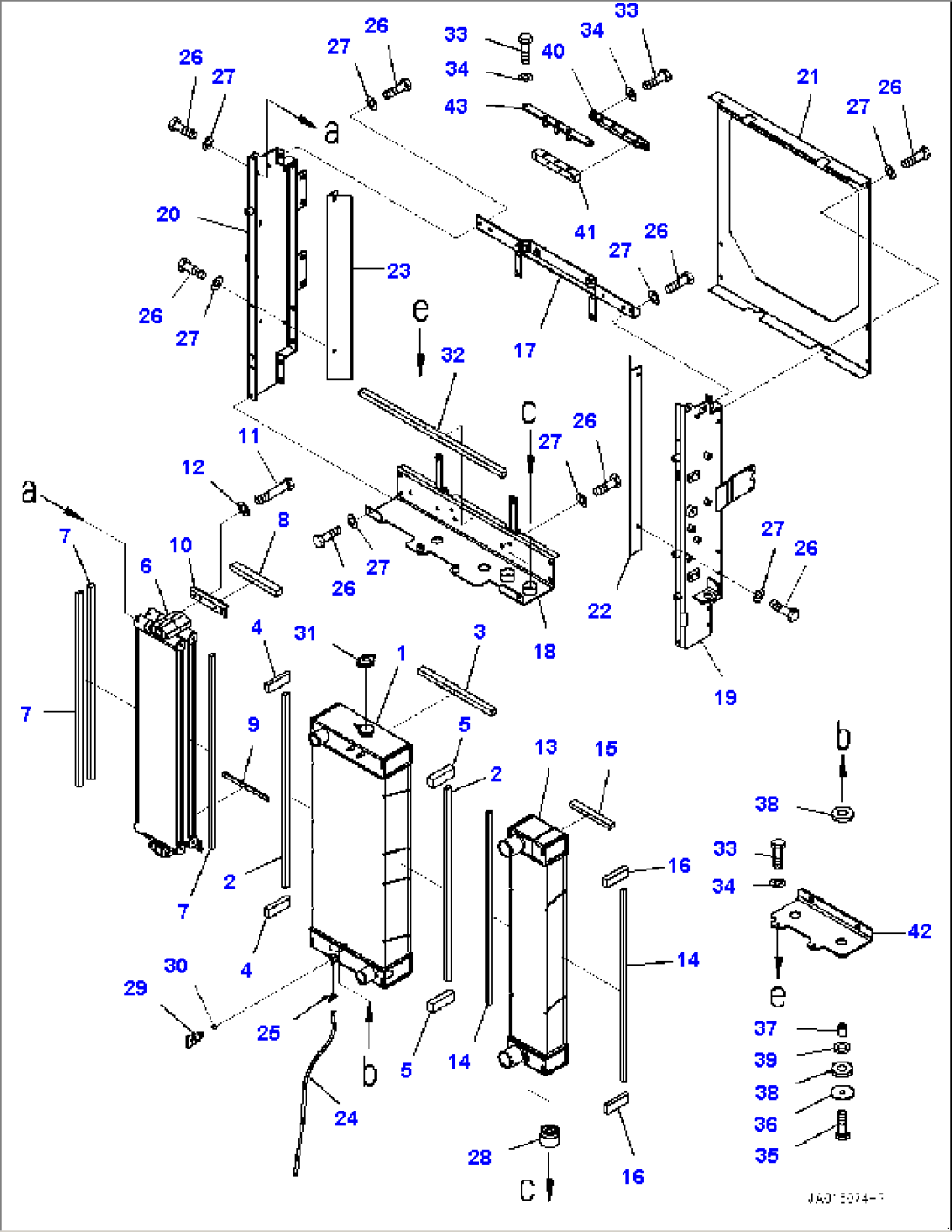

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-03-51100 | Radiator Assembly | 80001- | ||
| 1 | 417-03-51140 | Radiator | 80001- | |
| 2 | 417-03-51220 | Seal | 80001- | |
| 3 | 417-03-51320 | Seal | 80001- | |
| 4 | 417-03-51330 | Seal | 80001- | |
| 5 | 417-03-51340 | Seal | 80001- | |
| 6 | 417-03-51120 | Oil Cooler Assembly | 80001- | |
| 7 | 417-03-51220 | Seal | 80001- | |
| 8 | 417-03-51240 | Seal | 80001- | |
| 9 | 417-03-51270 | Seal | 80001- | |
| 10 | 419-03-31531 | Plate | 80001- | |
| 11 | 01010-81080 | Bolt | 80001- | |
| 12 | 01643-31032 | Washer | 80001- | |
| 13 | 417-03-51130 | Aftercooler Assembly | 80001- | |
| 14 | 417-03-51210 | Seal | 80001- | |
| 15 | 417-03-51250 | Seal | 80001- | |
| 16 | 417-03-51330 | Seal | 80001- | |
| 17 | 417-03-51410 | Bracket | 80001- | |
| 18 | 417-03-51420 | Frame | 80001- | |
| 19 | 417-03-51430 | Frame | 80001- | |
| 20 | 417-03-51440 | Frame | 80001- | |
| 21 | 417-03-51450 | Shroud | 80001- | |
| 22 | 417-03-51460 | Plate | 80001- | |
| 23 | 417-03-51470 | Plate | 80001- | |
| 24 | 418-03-31570 | Hose | 80001- | |
| 25 | 20Y-03-11330 | Clip | 80001- | |
| 26 | 01010-81020 | Bolt | 80001- | |
| 27 | 01643-31032 | Washer | 80001- | |
| 28 | 23C-03-51751 | Cushion | 80001- | |
| 29 | 205-03-62660 | Plug | 80001- | |
| 30 | 07000-11007 | O-ring | 80001- | |
| 31 | 416-S14-2270 | Cap | 80001- | |
| 32 | 417-03-51260 | Seal | 80001- | |
| 33 | 01010-81030 | Bolt | 80001- | |
| 34 | 01643-31032 | Washer | 80001- | |
| 35 | 01010-81040 | Bolt | 80001- | |
| 36 | 14X-03-51770 | Washer | 80001- | |
| 37 | 22T-56-23290 | Spacer | 80001- | |
| 38 | 423-03-41370 | Cushion | 80001- | |
| 39 | 423-03-41430 | Cushion | 80001- | |
| 40 | 416-03-51660 | Plate | 80001- | |
| 41 | 416-03-51670 | Rubber | 80001- | |
| 42 | 417-03-51630 | Plate | 80001- | |
| 43 | 416-03-51680 | Plate | 80001- |
