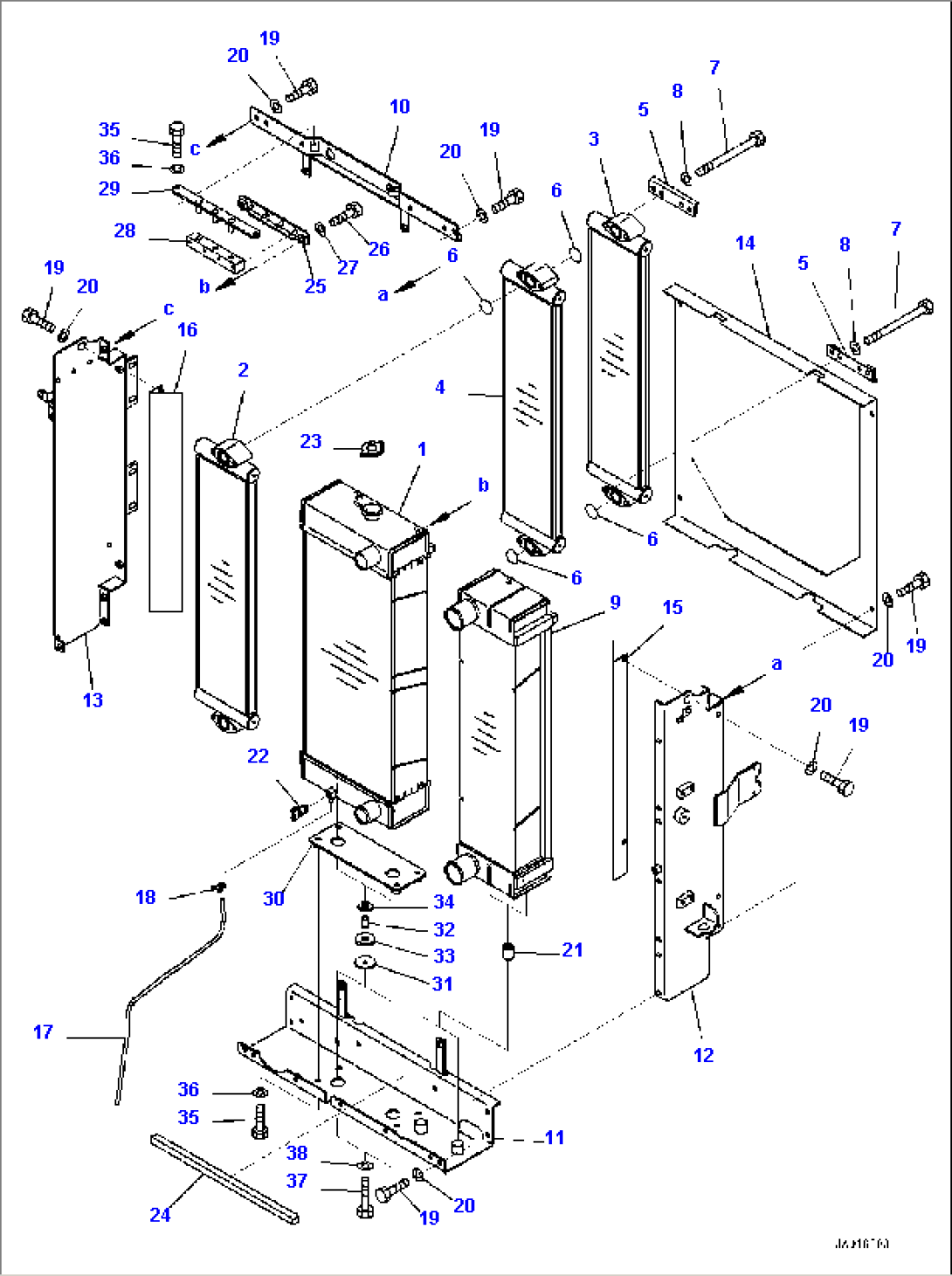

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-48103 | RADIATOR ASSEMBLY | H00458- | ||
| 1 | 418-03-48250 | RADIATOR | H00458- | |
| 418-03-48162 | OIL COOLER | H00051- | ||
| 2 | 418-03-48260 | OIL COOLER | H00051- | |
| 3 | 418-03-48270 | OIL COOLER | H00051- | |
| 4 | 418-03-48280 | OIL COOLER | H00051- | |
| 5 | 419-03-31531 | PLATE | H00051- | |
| 6 | 07000-13035 | O-RING | H00051- | |
| 7 | 01011-81045 | BOLT | H00051- | |
| 8 | 01643-31032 | WASHER | H00051- | |
| 9 | 418-03-48171 | AFTER COOLER | H00051- | |
| 10 | 418-03-41470 | PLATE | H00458- | |
| 11 | 418-03-48190 | FRAME | H00458- | |
| 12 | 418-03-48132 | FRAME | H00051- | |
| 13 | 418-03-48122 | FRAME | H00051- | |
| 14 | 418-03-41450 | SHROUD | H00051- | |
| 15 | 419-03-31460 | PLATE | H00051- | |
| 16 | 419-03-31470 | PLATE | H00051- | |
| 17 | 418-03-31570 | HOSE | H00051- | |
| 18 | 20Y-03-11330 | CLIP | H00051- | |
| 19 | 01010-81020 | BOLT | H00458- | |
| 20 | 01643-31032 | WASHER | H00458- | |
| 21 | 418-03-31480 | CUSHION | H00458- | |
| 22 | 205-03-62660 | PLUG | H00051- | |
| 22 | 07000-11007 | O-RING | H00051- | |
| 23 | 416-S14-2270 | CAP | H00051- | |
| 24 | 418-03-41360 | RUBBER | H00051- | |
| 25 | 418-03-41610 | PLATE | H00458- | |
| 26 | 01010-81030 | BOLT | H00458- | |
| 27 | 01643-31032 | WASHER | H00458- | |
| 28 | 418-03-41620 | RUBBER | H00458- | |
| 29 | 418-03-41650 | PLATE | H00458- | |
| 30 | 418-03-41630 | PLATE | H00458- | |
| 31 | 11Y-03-32260 | WASHER | H00458- | |
| 32 | 22T-56-23290 | SPACER | H00458- | |
| 33 | 423-03-41370 | CUSHION | H00458- | |
| 34 | 423-03-41430 | CUSHION | H00458- | |
| 35 | 01010-81025 | BOLT | H00458- | |
| 36 | 01643-31032 | WASHER | H00458- | |
| 37 | 01010-81045 | BOLT | H00458- | |
| 38 | 01643-31032 | WASHER | H00458- |
