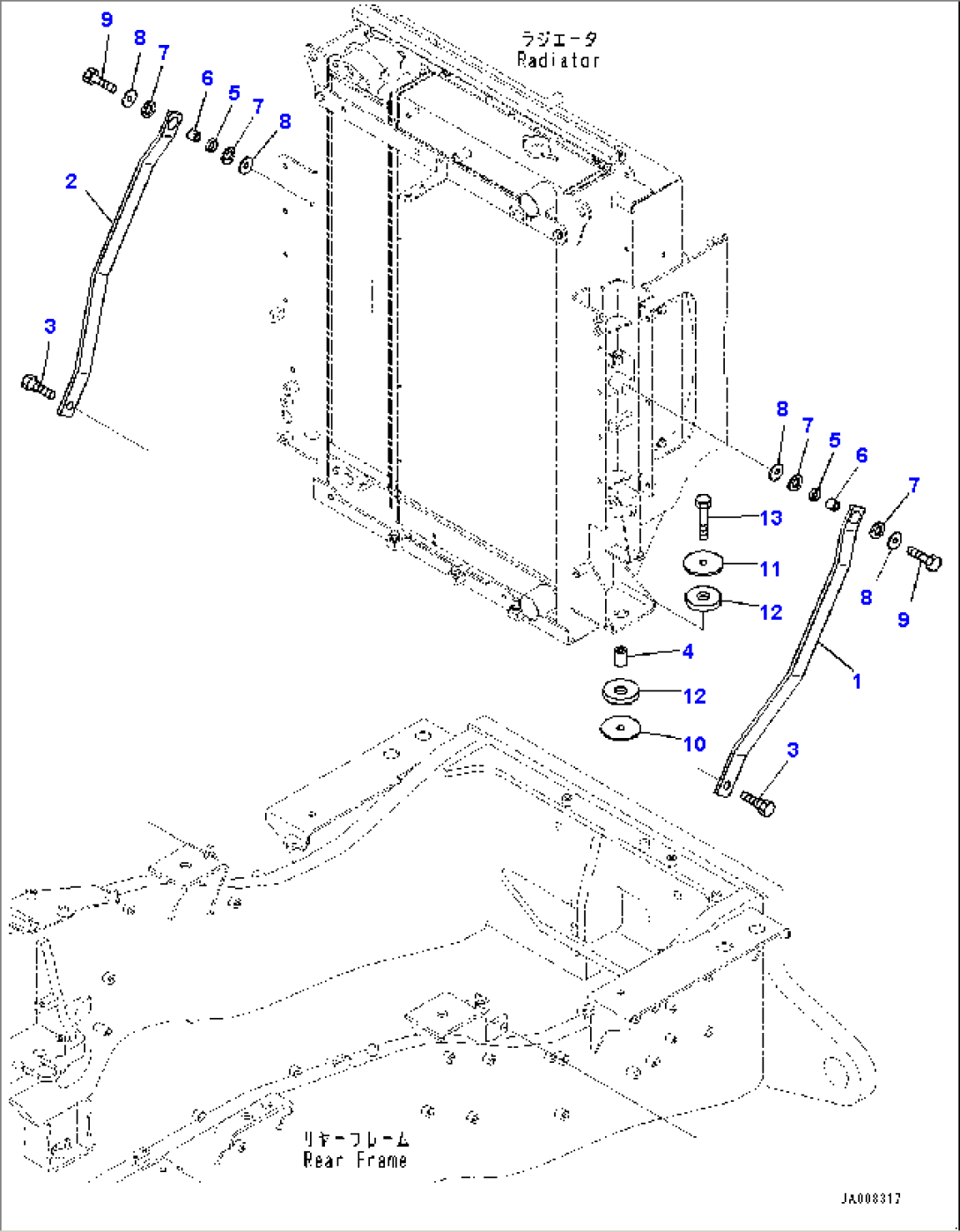

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23C-03-63280 | Stay | 10001- | |
| 2 | 23C-03-63270 | Stay | 10001- | |
| 3 | 416-03-11282 | Bolt | 10001- | |
| 4 | 421-03-31281 | Spacer | 10001- | |
| 5 | 416-03-11250 | Cushion | 10001- | |
| 6 | 416-03-11270 | Spacer | 10001- | |
| 7 | 416-03-11260 | Cushion | 10001- | |
| 8 | 419-43-17920 | Washer | 10001- | |
| 9 | 01010-81250 | Bolt | 10001- | |
| 10 | 23C-03-63670 | Washer | 10001- | |
| 11 | 23C-03-63660 | Washer | 10001- | |
| 12 | 23C-03-63510 | Cushion | 10001- | |
| 13 | 01010-81465 | Bolt | 10001- |
