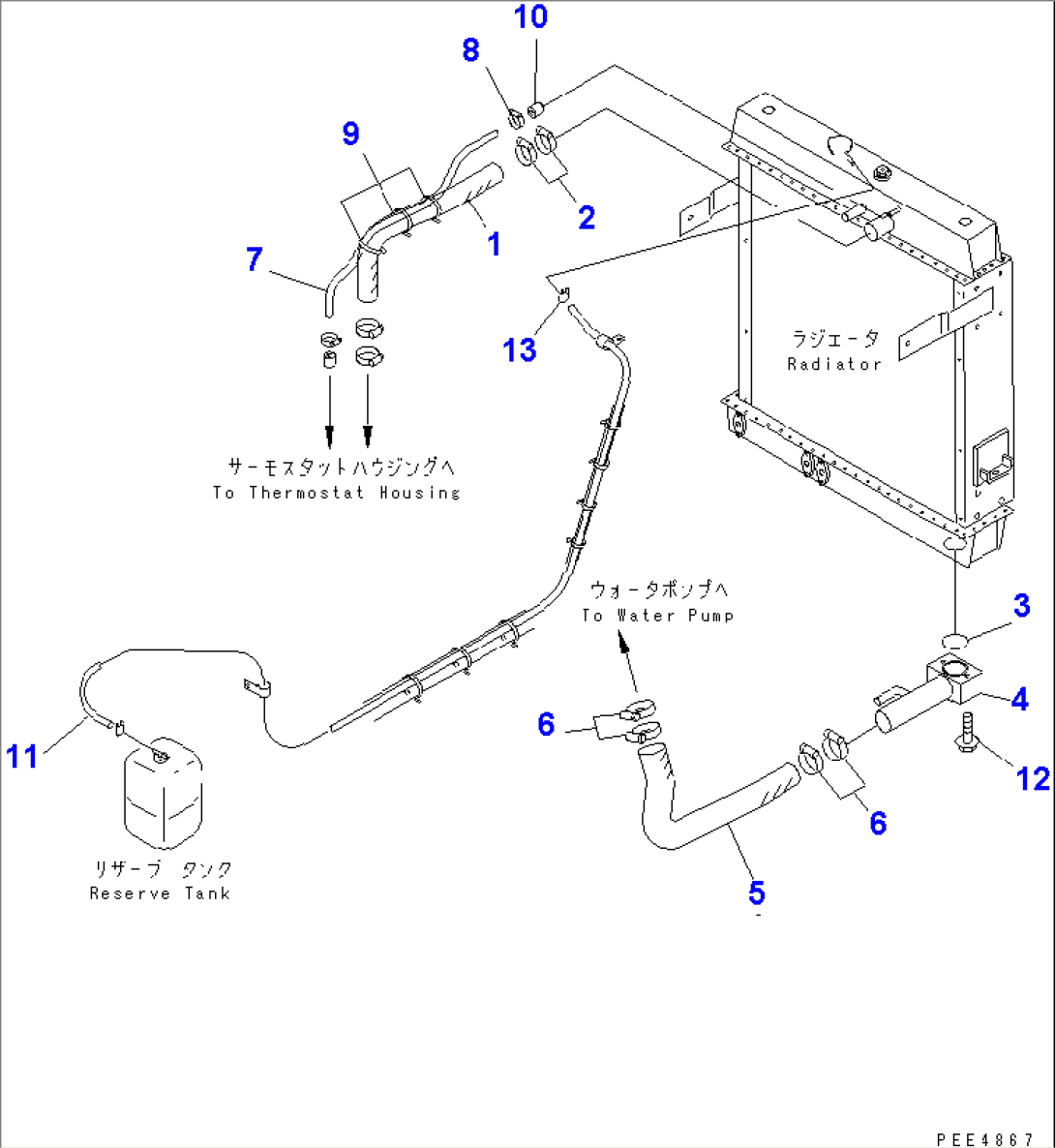

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-03-22210 | HOSE | 54001- | |
| 2 | 07289-00070 | CLAMP | 54110- | |
| 2 | 07281-00809 | CLAMP | 54001-54109 | |
| 3 | 07000-12075 | O-RING | 54001- | |
| 4 | 421-03-22140 | TUBE | 54001- | |
| 5 | 421-03-22120 | HOSE | 54001- | |
| 6 | 07289-00080 | CLAMP | 54110- | |
| 6 | 07281-00909 | CLAMP | 54001-54109 | |
| 7 | 07260-20990 | HOSE | 54136- | |
| 7 | 07270-21087 | TUBE | 54001-54135 | |
| 8 | 11Y-09-11140 | CLIP | 54136- | |
| 8 | 07281-00167 | CLAMP | 54001-54135 | |
| 9 | 08034-20536 | BAND | 54001- | |
| 10 | 423-03-11531 | TUBE | 54001- | |
| 11 | 421-03-22130 | HOSE | 54001- | |
| 12 | 01435-01290 | BOLT | 54001- | |
| 13 | 206-03-43340 | CLIP | 54001- |
