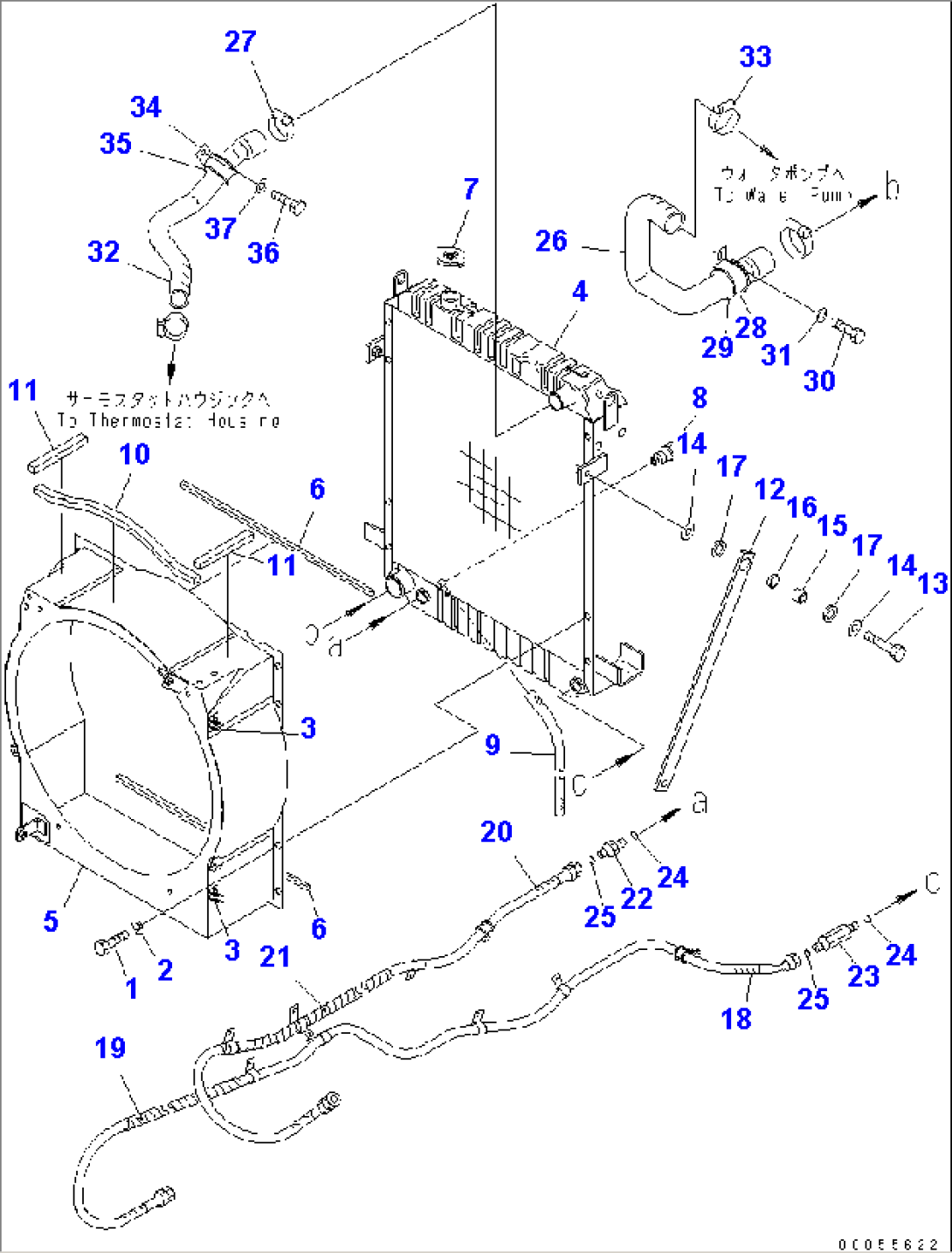

| Item | Part No. | Part Name | Qty | Serial No. |
| 415-03-21321 | RADIATOR ASS'Y | 11501- | ||
| 1 | 01010-80820 | BOLT | 11501- | |
| 2 | 01643-30823 | WASHER | 11501- | |
| 3 | 08036-D1630 | CLIP | 11501- | |
| 4 | 415-03-21330 | CORE ASS'Y | 11501- | |
| 5 | 415-03-21340 | SHROUD | 11501- | |
| 6 | 415-03-21360 | PACKING | 11501- | |
| 7 | 416-03-11170 | CAP | 10001- | |
| 8 | 415-03-11150 | COCK | 10001- | |
| 8 | 415-03-11160 | O-RING | 10001- | |
| 9 | 416-03-11151 | HOSE | 10001- | |
| 10 | 417-03-31530 | SHEET (BONDED) | 12060- | |
| 11 | 415-03-21650 | SHEET (BONDED) | 12060- | |
| 12 | 415-03-21151 | PLATE | 11193- | |
| 13 | 01010-81245 | BOLT | 10001- | |
| 14 | 419-43-17920 | WASHER | 10001- | |
| 15 | 416-03-11270 | SPACER | 10001- | |
| 16 | 416-03-11250 | CUSHION | 10001- | |
| 17 | 416-03-11260 | CUSHION | 10001- | |
| 18 | 415-18-21622 | HOSE | 11508- | |
| 19 | 08210-01807 | SPIRAL TUBE | 11508- | |
| 20 | 415-18-21680 | HOSE | 11508- | |
| 21 | 08210-01802 | SPIRAL TUBE | 11508- | |
| 22 | 11Y-62-12210 | NIPPLE | 11508- | |
| 23 | 21K-62-71290 | NIPPLE | 11508- | |
| 24 | 07002-12434 | O-RING | 11508- | |
| 25 | 02896-11018 | O-RING | 11508- | |
| 26 | 415-03-21510 | HOSE | 11508- | |
| 27 | 07289-00055 | CLAMP | 11508- | |
| 28 | 6205-11-5930 | CLIP | 11508- | |
| 29 | 07095-01453 | CUSHION | 11508- | |
| 30 | 01010-81025 | BOLT | 11508- | |
| 31 | 01643-31032 | WASHER | 11508- | |
| 32 | 415-03-21520 | HOSE | 11508- | |
| 33 | 07289-00055 | CLAMP | 11508- | |
| 34 | 234-885-3660 | CLIP | 11508- | |
| 35 | 07095-01241 | CUSHION | 11508- | |
| 36 | 01010-81020 | BOLT | 11508- | |
| 37 | 01643-31032 | WASHER | 11508- |
