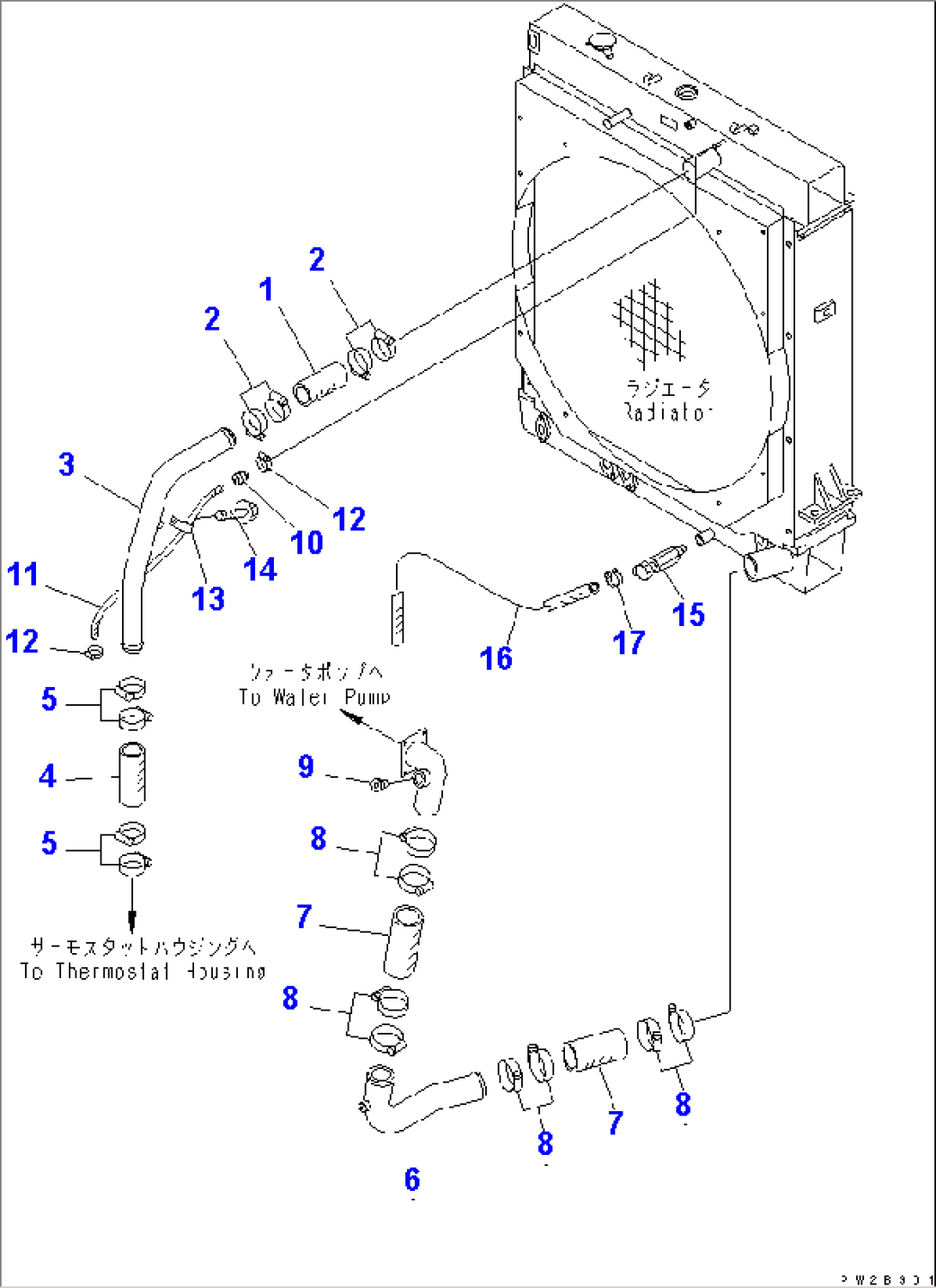

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-25818 | HOSE | 52001- | |
| 2 | 07289-00070 | CLAMP | 52001- | |
| 3 | 425-03-22311 | TUBE | 52001- | |
| 4 | 07260-25818 | HOSE | 52001- | |
| 5 | 07289-00070 | CLAMP | .- | |
| \0\07281-00809 | CLAMP | 52001-. | ||
| 6 | 425-03-22130 | TUBE | 52001- | |
| 7 | 425-03-12180 | HOSE | 50001- | |
| 8 | 07289-00095 | CLAMP | 52001- | |
| 9 | 02720-41616 | PLUG | 52001- | |
| 10 | 423-03-11531 | PIPE | 50001- | |
| 11 | 09483-00308 | HOSE | 50001- | |
| 12 | 07281-00197 | CLAMP | 50001- | |
| 13 | 04434-51610 | CLIP | 52001- | |
| 14 | 01435-01016 | BOLT | 52001- | |
| 15 | 07730-30004 | VALVE | 50001- | |
| 16 | 07260-21490 | HOSE | 50001- | |
| 17 | 07281-00259 | CLAMP | 50001- |
