| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-54-41160 | SUPPORT | 85001- | |
| 2 | 421-54-42410 | PLATE | 85001- | |
| 3 | 01010-81230 | BOLT | 85001- | |
| 4 | 01643-31232 | WASHER | 85001- | |
| 5 | 01010-81225 | BOLT | 85001- | |
| 6 | 01643-31232 | WASHER | 85001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n 85001 90215 (ecot3)
- Cooling system
- Radiator (rear support)(#85001 )
Поиск по каталогу

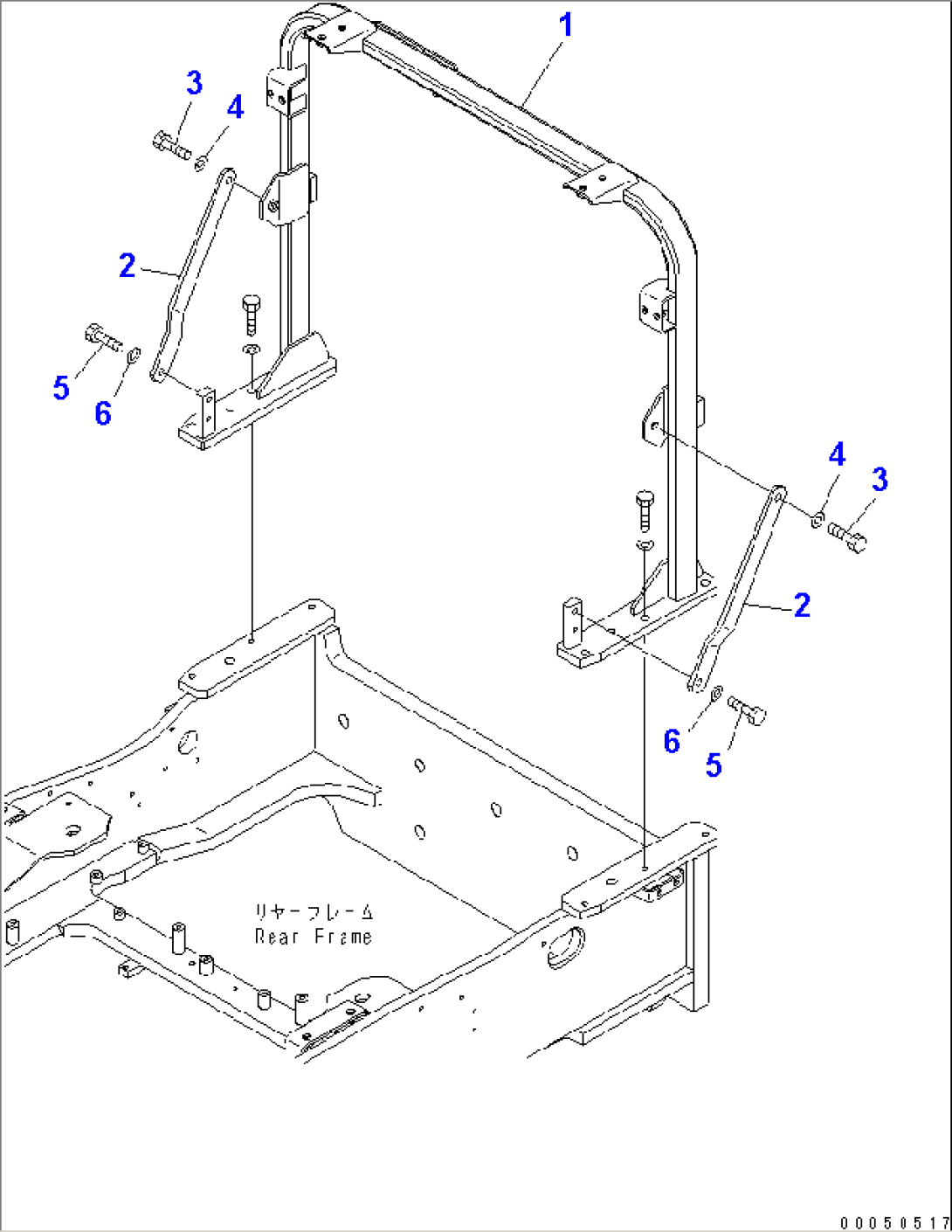

RADIATOR (REAR SUPPORT)(#85001-)
