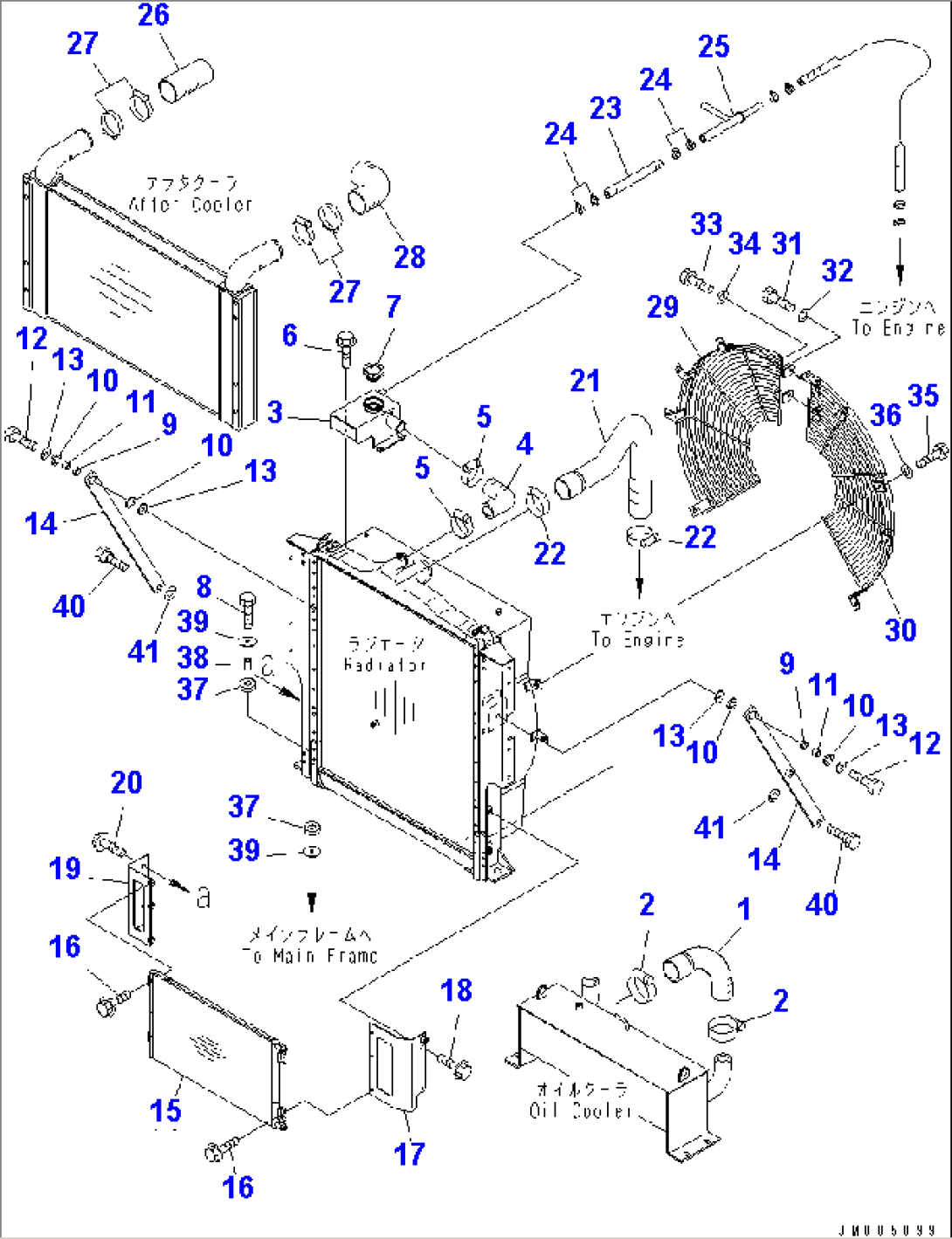

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-03-41532 | HOSE | 1601- | |
| 2 | 07299-00080 | CLAMP | 1601- | |
| 3 | 567-03-72211 | TANK | 1735- | |
| 3 | \0\567-03-72210 | TANK | 1601-1734 | |
| 4 | 281-03-12230 | HOSE | 1601- | |
| 5 | 07299-00055 | CLAMP | 1601- | |
| 6 | 01435-01020 | BOLT | 1601- | |
| 7 | 569-03-81510 | CAP | 1601- | |
| 8 | 01010-81265 | BOLT | 1601- | |
| 9 | 416-03-11250 | CUSHION | 1601- | |
| 10 | 416-03-11260 | CUSHION | 1601- | |
| 11 | 416-03-11270 | SPACER | 1601- | |
| 12 | 01010-81250 | BOLT | 1601- | |
| 13 | 419-43-17920 | WASHER | 1601- | |
| 14 | 567-03-71310 | PLATE | 1601- | |
| 15 | 56E-07-21131 | CONDENSER ASS'Y | 1601- | |
| 16 | 01435-00816 | BOLT | 1601- | |
| 17 | 567-07-71210 | BRACKET | 1601- | |
| 18 | 01435-01025 | BOLT | 1601- | |
| 19 | 567-07-71220 | BRACKET | 1601- | |
| 20 | 01435-01025 | BOLT | 1601- | |
| 21 | 567-03-71521 | HOSE | 1601- | |
| 22 | 07299-00080 | CLAMP | 1601- | |
| 23 | 07260-21422 | HOSE | 1601- | |
| 24 | 07281-00259 | CLAMP | 1601- | |
| 25 | 567-03-72220 | TUBE | 1601- | |
| 26 | 56D-02-12250 | HOSE | 1601- | |
| 27 | 07299-00080 | CLAMP | 1601- | |
| 28 | 6743-11-4930 | HOSE | 1601- | |
| 29 | 567-03-71140 | COVER | 1601- | |
| 30 | 567-03-71150 | COVER | 1601- | |
| 31 | 01010-81025 | BOLT | 1601- | |
| 32 | 01643-31032 | WASHER | 1601- | |
| 33 | 01010-81030 | BOLT | 1601- | |
| 34 | 01643-31032 | WASHER | 1601- | |
| 35 | 01010-81025 | BOLT | 1601- | |
| 36 | 01643-31032 | WASHER | 1601- | |
| 37 | 418-03-11390 | CUSHION | 1601- | |
| 38 | 415-03-11210 | SPACER | 1601- | |
| 39 | 416-03-11210 | WASHER | 1601- | |
| 40 | 416-03-11281 | BOLT | 1601- | |
| 41 | 01643-31232 | WASHER | 1601- |
