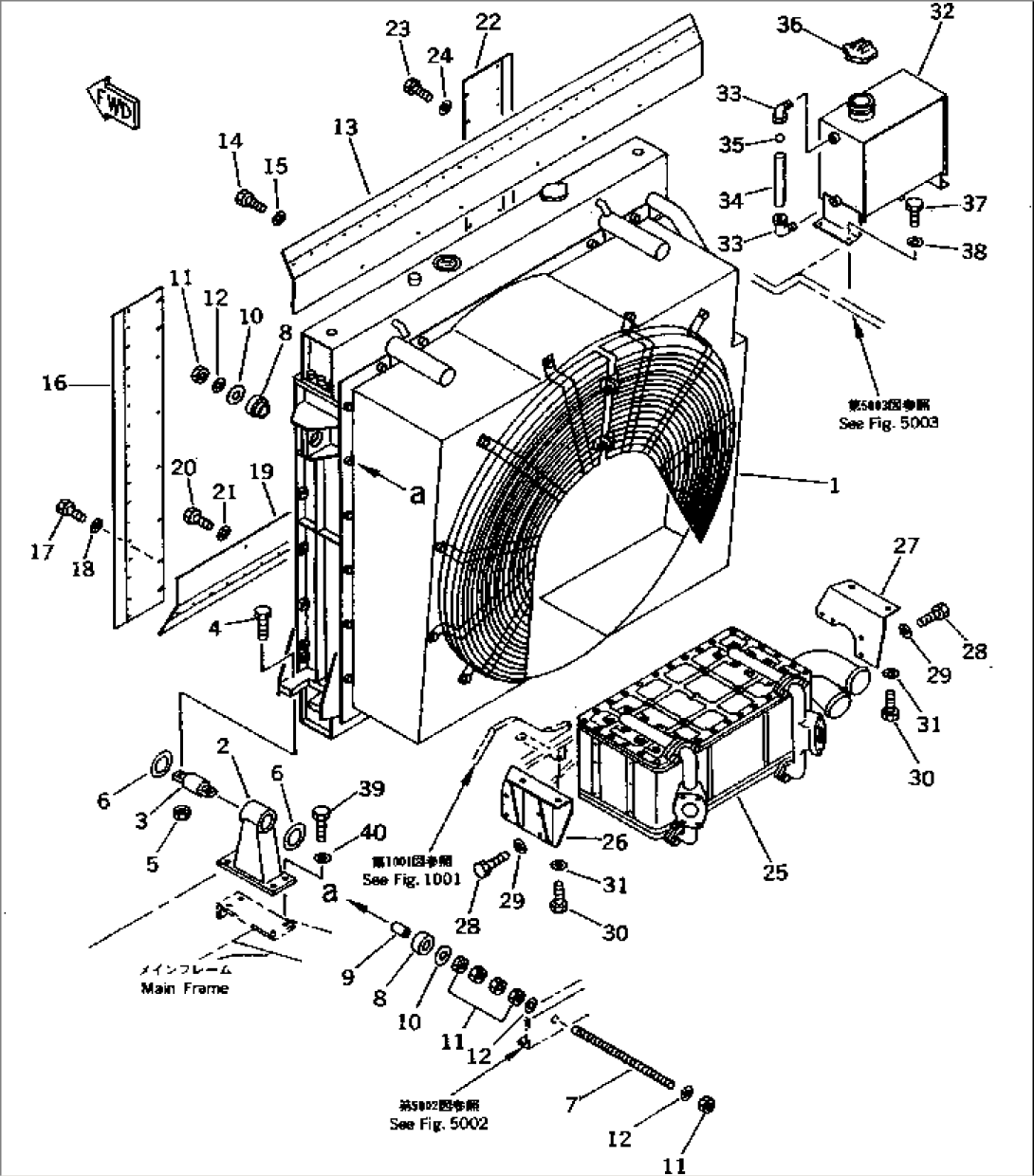

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (561-03-61102) | RADIATOR ASS'Y | 2001-2165 | |
| (\2\561-03-61101) | RADIATOR ASS'Y | (2001-2078) | ||
| (561-03-64101) | RADIATOR ASS'Y,(WITH SAE NET) | 2001- | ||
| (\2\561-03-64100) | RADIATOR ASS'Y,(WITH SAE NET) | (2001-.) | ||
| (561-03-64201) | RADIATOR ASS'Y,(FOR LARGE FAN) | 2001- | ||
| 2 | 561-03-61711 | BRACKET | 2001- | |
| 3 | 581-61-21520 | CUSHION | 2001- | |
| 4 | 01010-51480 | BOLT | 2001- | |
| 5 | 01598-01415 | NUT | 2001- | |
| 6 | 01640-24260 | WASHER | 2001- | |
| 7 | 582-03-13180 | ROD | 2001- | |
| 8 | 566-54-12212 | CUSHION | 2001- | |
| 9 | 566-54-21910 | BUSHING | 2001- | |
| 10 | 566-54-21920 | PLATE | 2001- | |
| 11 | 01582-12016 | NUT | 2001- | |
| 12 | 01643-32060 | WASHER | 2001- | |
| 13 | 561-03-61812 | BAFFLE | 2001- | |
| 14 | 01010-51225 | BOLT | 2001- | |
| 15 | 01643-31232 | WASHER | 2001- | |
| 16 | 561-03-61822 | BAFFLE | 2001- | |
| 17 | 01010-51225 | BOLT | 2001- | |
| 18 | 01643-31232 | WASHER | 2001- | |
| 19 | 561-03-61832 | BAFFLE | 2001- | |
| 20 | 01010-51225 | BOLT | 2001- | |
| 21 | 01643-31232 | WASHER | 2001- | |
| 22 | 561-03-61840 | BAFFLE | 2001- | |
| 23 | 01010-51225 | BOLT | 2001- | |
| 24 | 01643-31232 | WASHER | 2001- | |
| 25 | (561-03-63101) | OIL COOLER ASS'Y | 2001- | |
| 26 | 561-03-63413 | BRACKET | 2001- | |
| 27 | 561-03-63423 | BRACKET | 2001- | |
| 28 | 01010-51235 | BOLT | 2001- | |
| 29 | 01643-31232 | WASHER | 2001- | |
| 30 | 01010-51660 | BOLT | 2001- | |
| 31 | 01643-31645 | WASHER | 2001- | |
| 32 | 561-03-61912 | TANK | 2001- | |
| 33 | 208-04-19130 | ELBOW | 2001- | |
| 34 | 561-03-61940 | TUBE | 2001- | |
| 35 | 208-04-19160 | BALL,FLOAT | 2001- | |
| 36 | 07053-10000 | CAP | 2101- | |
| 07053-20000 | CAP | 2001-2100 | ||
| 37 | 01010-51225 | BOLT | 2001- | |
| 38 | 01643-31232 | WASHER | 2001- | |
| 39 | 01010-51650 | BOLT | 2001- | |
| 40 | 01643-31645 | WASHER | 2001- |
