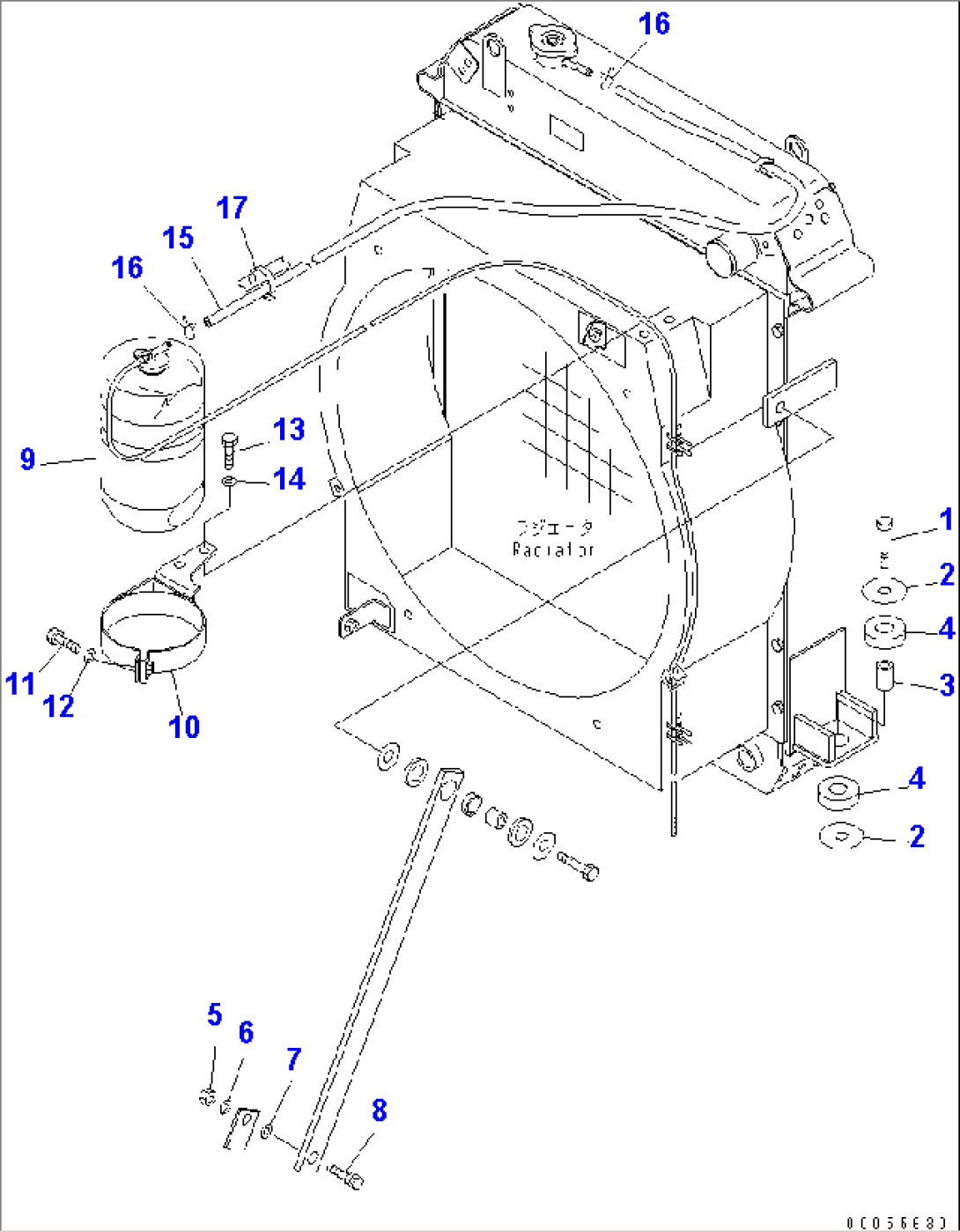

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81270 | BOLT | 12028- | |
| 2 | 416-03-11210 | WASHER | 12028- | |
| 3 | 415-03-11210 | SPACER | 12028- | |
| 4 | 416-03-11221 | CUSHION | 12028- | |
| 5 | 01580-01210 | NUT | 12028- | |
| 6 | 01643-31232 | WASHER | 12028- | |
| 7 | 01643-31232 | WASHER | 12028- | |
| 8 | 416-03-11281 | BOLT | 12028- | |
| 9 | 417-03-21291 | TANK | 12001- | |
| 9 | 417-03-21360 | CAP | 12001- | |
| 10 | 415-U47-2540 | BAND | 12001- | |
| 11 | 01010-80825 | BOLT | 12001- | |
| 12 | 01643-30823 | WASHER | 12001- | |
| 13 | 01010-81025 | BOLT | 12001- | |
| 14 | 01643-31032 | WASHER | 12001- | |
| 15 | 22T-03-22341 | HOSE | 12001- | |
| 16 | 206-03-43340 | CLIP | 12001- | |
| 17 | 08034-50536 | BAND | 12001- |
