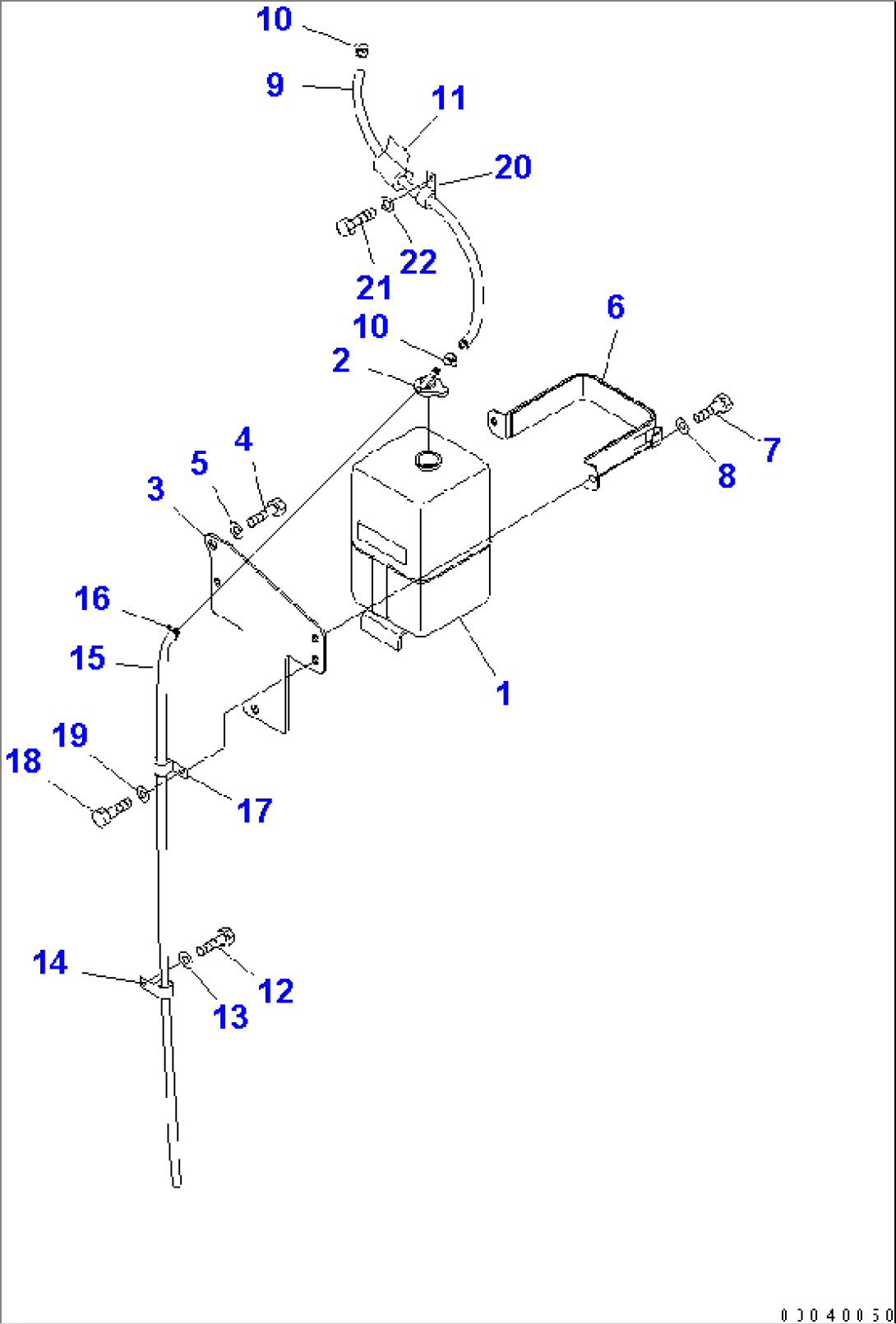

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-03-14111 | TANK | 11001- | |
| 2 | 17A-03-14120 | CAP ASS'Y | 11001- | |
| 3 | 154-03-75291 | BRACKET | 11001- | |
| 4 | 01010-81230 | BOLT | 11001- | |
| 5 | 01643-31232 | WASHER | 11001- | |
| 6 | 17A-03-14130 | BAND | 11001- | |
| 7 | 01010-81025 | BOLT | 11001- | |
| 8 | 01643-31032 | WASHER | 11001- | |
| 9 | 17M-03-23230 | HOSE | 11001- | |
| 10 | 07285-00130 | CLIP | 11001- | |
| 11 | 154-03-71770 | COVER | 11001- | |
| 12 | 01010-81230 | BOLT | 11001- | |
| 13 | 01643-31232 | WASHER | 11001- | |
| 14 | 04434-51612 | CLIP | 11001- | |
| 15 | 6128-61-9530 | HOSE | 11001- | |
| 16 | 206-03-43340 | CLIP | 11001- | |
| 17 | 04434-51610 | CLIP | 11001- | |
| 18 | 01010-81025 | BOLT | 11001- | |
| 19 | 01643-31032 | WASHER | 11001- | |
| 20 | 04434-51612 | CLIP | 11001- | |
| 21 | 01010-81230 | BOLT | 11001- | |
| 22 | 01643-31232 | WASHER | 11001- |
