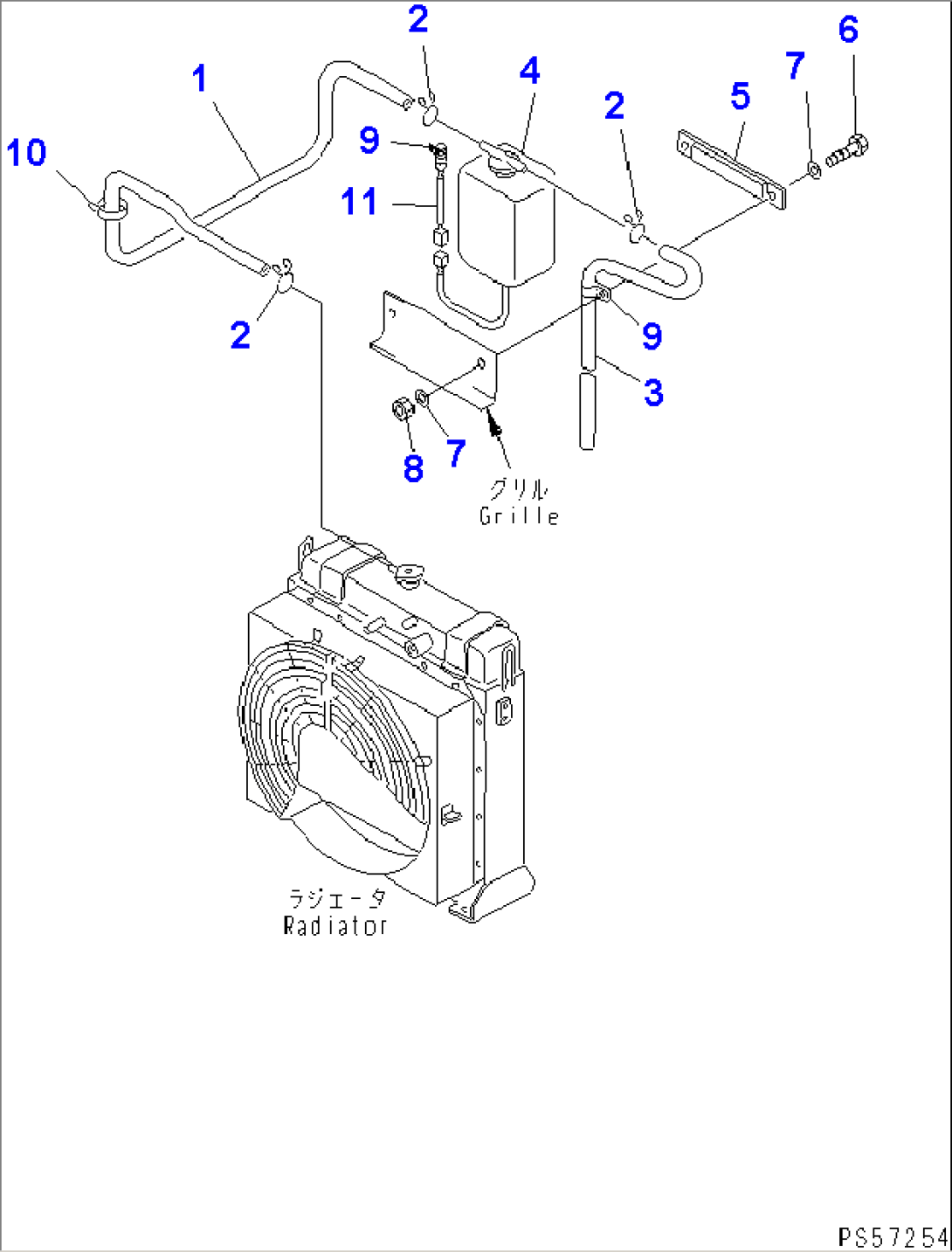

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-03-13130 | HOSE | 11001- | |
| 2 | 206-03-43340 | CLIP | 11003- | |
| 3 | 07270-60811 | TUBE | 11002- | |
| 4 | 23F-03-12310 | TANK | 11009- | |
| ND022500-2870 | CAP | 11009- | ||
| 5 | 23F-03-21330 | PLATE | 11009- | |
| 6 | 426-15-16410 | BOLT | 11009- | |
| 7 | 01643-31032 | WASHER | 11001- | |
| 8 | 01598-01011 | NUT | 11001- | |
| 9 | 08036-01214 | CLIP | 11001- | |
| 10 | 08034-00414 | BAND | 11001- | |
| 11 | (23F-06-11670) | HARNESS | 11009- |
