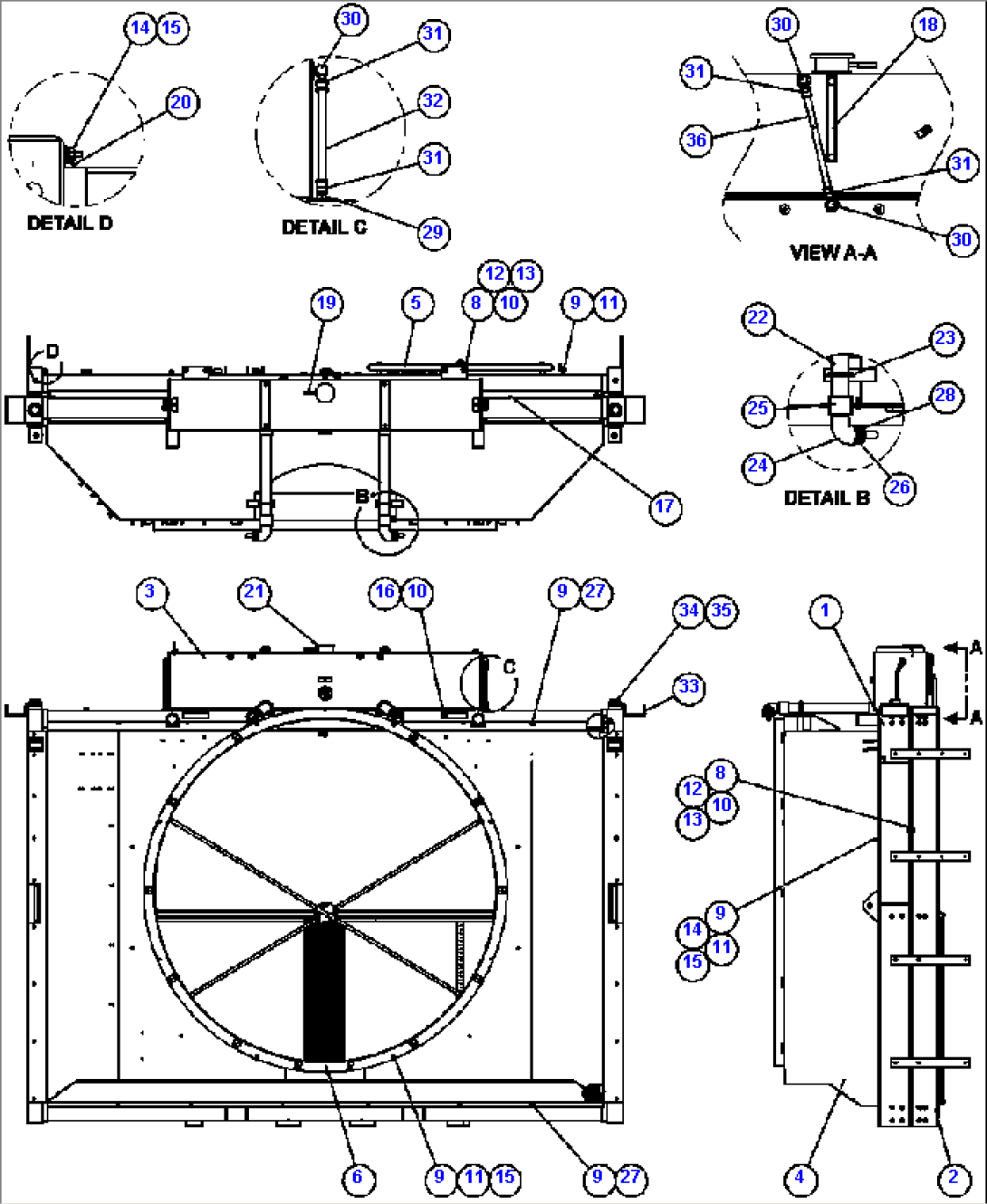

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA3518 | RADIATOR, JACKET WATER (HTC) (SEE FIG 61060) | | |
| 2 | XA3519 | RADIATOR, AFTERCOOLER (LTC) (SEE FIG 61060) | | |
| 3 | XA2081 | TANK, SURGE | | |
| 4 | XA2080 | SHROUD, FAN | | |
| 5 | XA2799 | COOLER, FUEL (SEE FIG 60817) | | |
| 6 | XA3516 | RING, FAN | | |
| 7 | | (NOT USED IN THIS APPLICATION) | | |
| 8 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | | |
| 9 | E3735 | FLAT WASHER - 3/8" | | |
| 10 | VE4440 | WASHER | | |
| 11 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 12 | C1540 | LOCKWASHER - 1/2" | | |
| 13 | VE3461 | NUT, HEX HEAD | | |
| 14 | C0312 | LOCKWASHER - 3/8" | | |
| 15 | C1521 | NUT - 3/8" - 16NC | | |
| 16 | VE3460 | CAPSCREW, HEX HEAD | | |
| 17 | BF5307 | BAFFLE | | |
| 18 | BF3625 | SIGHT GAUGE ASSEMBLY | | |
| 19 | XA3517 | HOSE, OVERFLOW | | |
| 20 | VE1223 | CLIP | | |
| 21 | VE1474 | CAP - 14 PSI | | |
| 22 | BF4956 | NIPPLE | | |
| 23 | BF4201 | U-BOLT ASSEMBLY | | |
| 24 | BE4441 | ELBOW | | |
| 25 | BF4949 | COUPLING, PIPE | | |
| 26 | VE8326 | BUSHING, HEX - REDUCER | | |
| 27 | VE4005 | CAPSCREW - 3/8" - 16NC X 3/4" | | |
| 28 | BF4464 | FITTING | | |
| 29 | BF4463 | ADAPTER | | |
| 30 | BF4461 | ELBOW | | |
| 31 | BF4462 | SWIVEL | | |
| 32 | XA2801 | HOSE - 1/2" X 9" | | |
| 33 | XA1900 | BRACKET | | |
| 34 | XA1901 | CAPSCREW - 1 1/4" | | |
| 35 | XA1902 | WASHER | | |
| 36 | BF4460 | HOSE | | |
