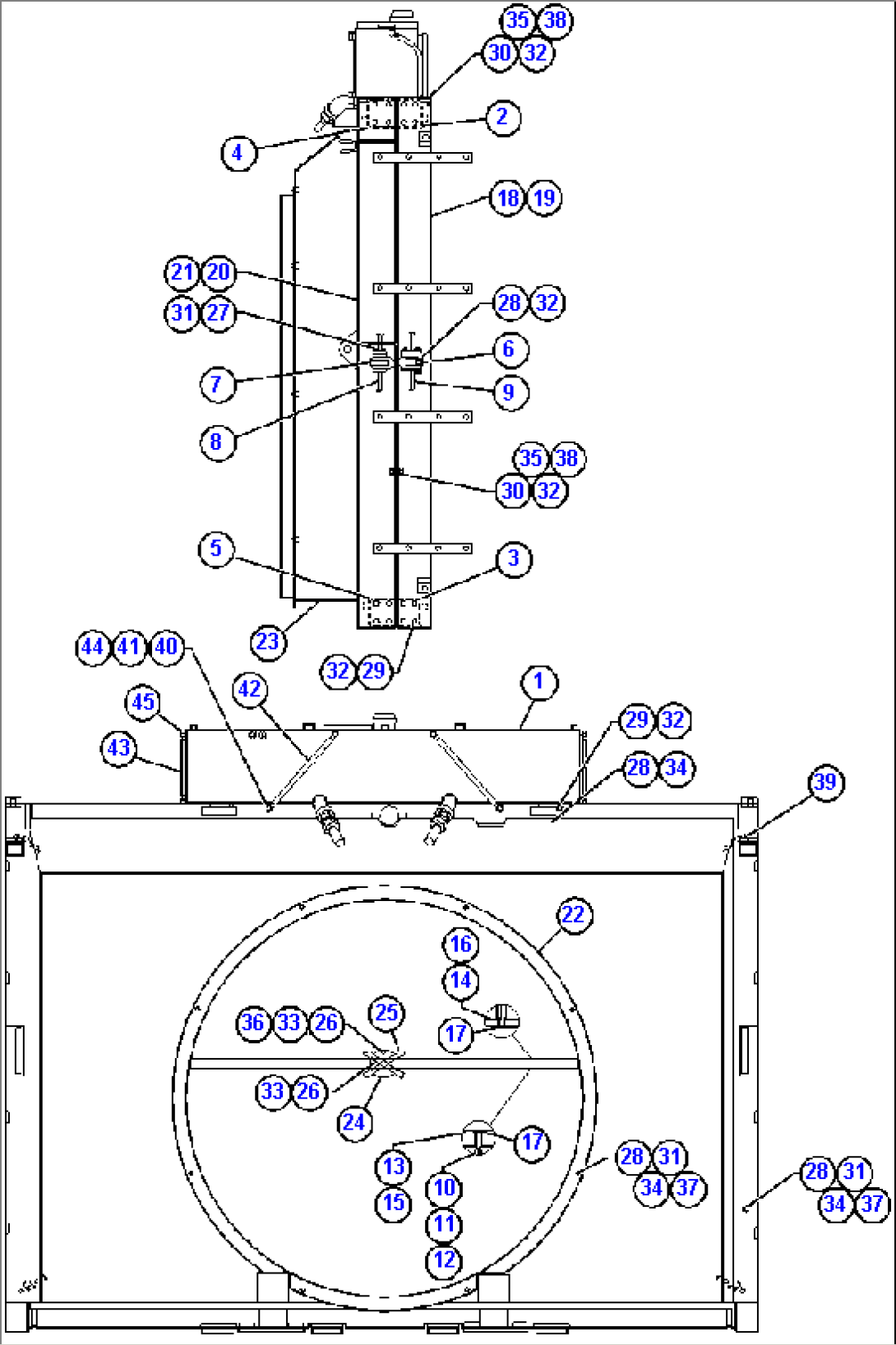

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF2999 | TANK, SURGE | ||
| 2 | BF3000 | TANK, UPPER FRONT | ||
| 3 | BF3001 | TANK, LOWER FRONT | ||
| 4 | BF3002 | TANK, UPPER REAR | ||
| 5 | BF3003 | TANK, LOWER REAR | ||
| 6 | BF3004 | TANK, CENTER FRONT | ||
| 7 | BF3005 | TANK, CENTER REAR | ||
| 8 | BF3006 | SUPPORT, CENTER REAR | ||
| 9 | BF3007 | SUPPORT, CENTER FRONT | ||
| 10 | BF3008 | TUBE, LOCKING | ||
| 11 | BF3009 | TUBE ASSM, LOCKING | ||
| 12 | VE1219 | TUBE, STAY END | ||
| 13 | BF3010 | BAFFLE, AIR - TOP | ||
| 14 | BF3011 | BAFFLE, AIR - BOTTOM | ||
| 15 | BF3012 | BAFFLE, AIR - TOP | ||
| 16 | BF3013 | BAFFLE, AIR - BOTTOM | ||
| 17 | BF1415 | SEAL | ||
| 18 | BF3014 | MEMBER, SIDE - RH FRONT | ||
| 19 | BF3015 | MEMBER, SIDE - LH FRONT | ||
| 20 | BF3016 | MEMBER, SIDE - RH REAR | ||
| 21 | BF3017 | MEMBER, SIDE - LH REAR | ||
| 22 | BF3018 | RING, FAN | ||
| 23 | BF3019 | SHROUD, FAN | ||
| 24 | VE1285 | BRACKET, X-BRACE | ||
| 25 | BF3020 | ROD, X-BRACE | ||
| 26 | C5747 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 27 | VE4005 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 28 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 29 | VE3460 | CAPSCREW | ||
| 30 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 31 | C0312 | LOCKWASHER - 3/8" | ||
| 32 | C1540 | LOCKWASHER - 1/2" | ||
| 33 | VE5442 | FLAT WASHER - 5/16" | ||
| 34 | E3735 | FLAT WASHER - 3/8" | ||
| 35 | VE4440 | FLAT WASHER - 1/2" | ||
| 36 | VE6312 | NUT - 5/16" - 18NC | ||
| 37 | C1521 | NUT - 3/8" - 16NC | ||
| 38 | VE3461 | NUT - 1/2" - 13NC | ||
| 39 | C1528 | NUT - 3/4" - 16NC | ||
| 40 | VE4444 | ELBOW | ||
| 41 | VE4445 | NIPPLE | ||
| 42 | BF3021 | HOSE | ||
| 43 | BF3022 | HOSE | ||
| 44 | VE4011 | FITTING | ||
| 45 | VE4013 | FITTING |
