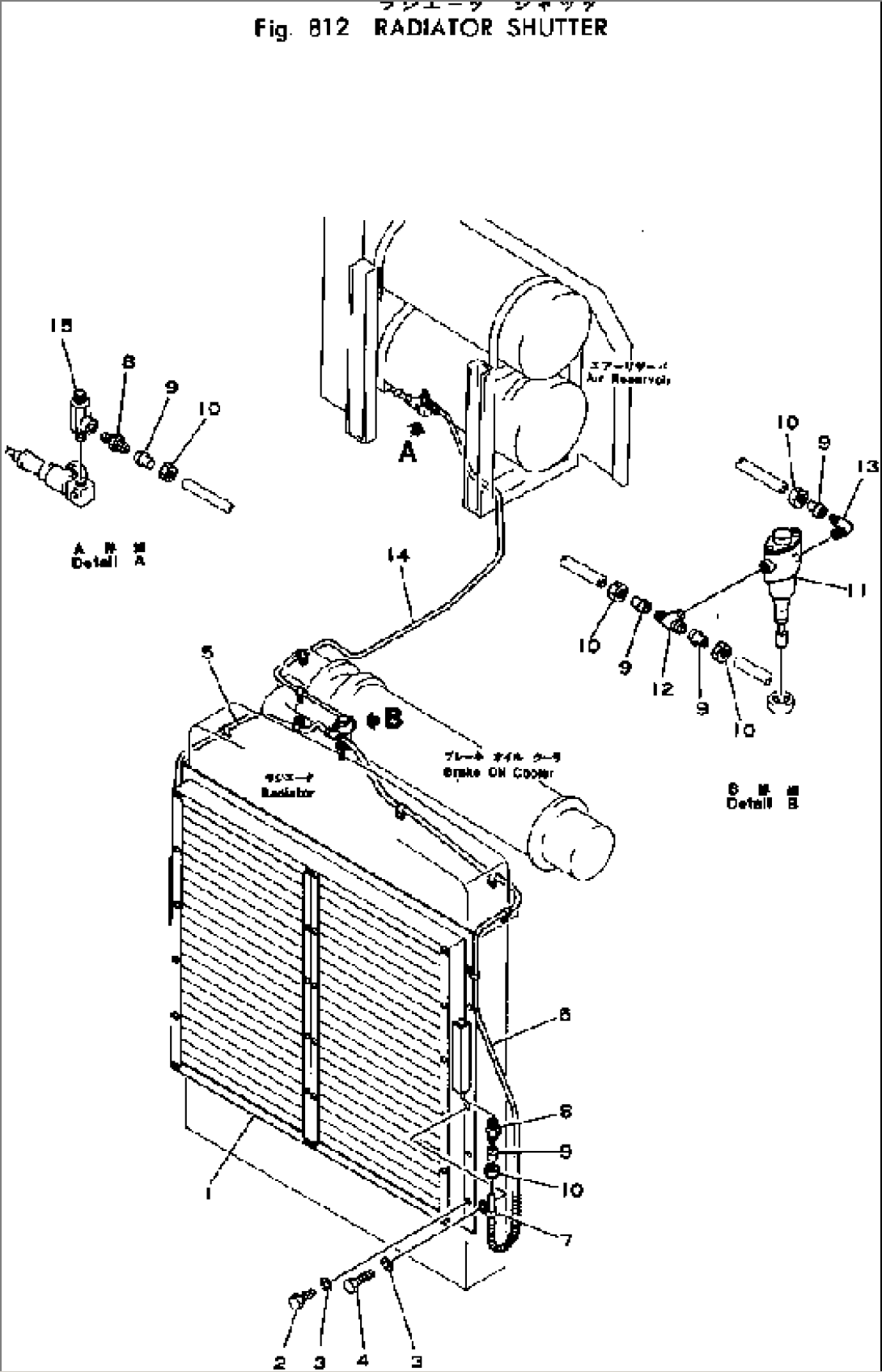

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-03-16101 | SHUTTER ASS'Y | 1002- | |
| 2 | 01010-51220 | BOLT | 1002- | |
| 3 | 01602-21236 | WASHER | 1002- | |
| 4 | 01010-51230 | BOLT | 1002- | |
| 5 | 07822-00422 | TUBE | 1002- | |
| 6 | 07822-00427 | TUBE | 1002- | |
| 7 | 08036-10814 | CLIP | 1002- | |
| 8 | 07836-00410 | CONNECTOR | 1002- | |
| 9 | 07831-00411 | SLEEVE | 1002- | |
| 10 | 07832-00410 | NUT | 1002- | |
| 11 | 568-03-26410 | SHUTTER STAT ASS'Y | 1002- | |
| 12 | 07835-00410 | TEE | 1002- | |
| 13 | 07834-00410 | ELBOW | 1002- | |
| 14 | 07832-00432 | NUT | 1002- | |
| 15 | 568-03-26421 | VALVE ASS'Y | 1002- |
