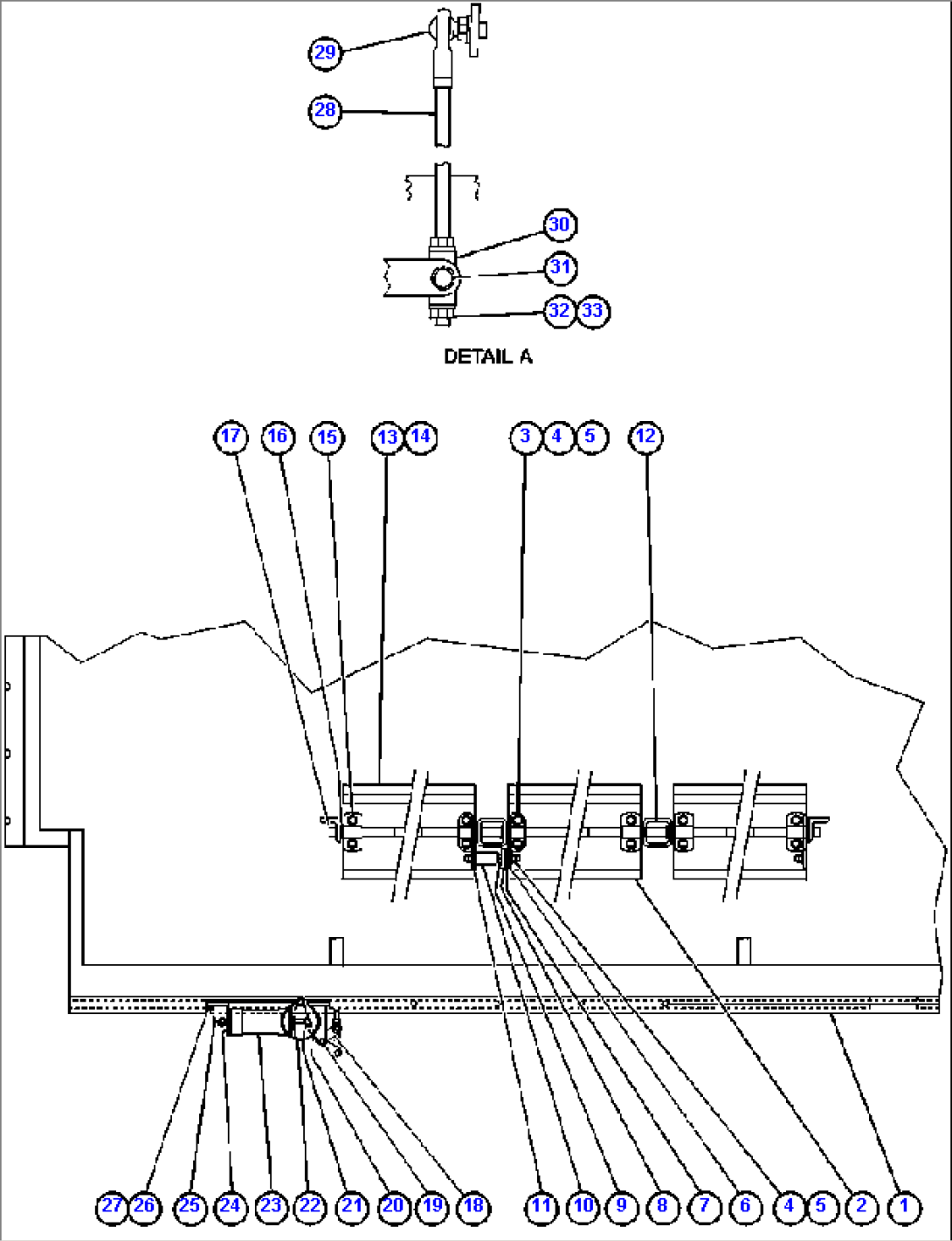

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF4626 | BOX ASSEMBLY | ||
| 2 | BF4628 | VANE | ||
| 3 | VE2700 | STUD, SPLINE - 1/4" - 20NC | ||
| 4 | C5774 | LOCKWASHER - 1/4" | ||
| 5 | C5780 | NUT - 1/4" - 20NC | ||
| 6 | VE2678 | CRANK - L.H. | ||
| 7 | VE2680 | BUSHING - PKG. 10 | ||
| 8 | BF4627 | BAR, CONTROL | ||
| 9 | VE2676 | PIN, CRANK | ||
| 10 | VE2675 | SLEEVE, CRANK | ||
| 11 | VE2677 | CRANK - R.H. | ||
| 12 | VE2672 | ROD, CENTER VANE | ||
| 13 | BF4630 | VANE | ||
| 14 | BF4629 | VANE | ||
| 15 | VE2682 | CLAMP, LOCK - PKG. 10 | ||
| 16 | VE2681 | BUSHING - PKG. 30 | ||
| 17 | VE2671 | ROD, END VANE | ||
| 18 | VE2688 | ARM ASSEMBLY | ||
| 19 | VE2696 | PIN ASSEMBLY | ||
| 20 | VE2687 | BRACKET | ||
| 21 | VE2695 | PIN | ||
| 22 | VE2691 | CYLINDER END ASSEMBLY | ||
| 23 | XA2543 | CYLINDER, CONTROL | ||
| 24 | VE2690 | CYLINDER MOUNT ASSEMBLY | ||
| 25 | VE2684 | CYLINDER BRACKET ASSEMBLY | ||
| 26 | C1598 | CAPSCREW - 5/16" - 18NC X 1" | ||
| 27 | C1538 | LOCKWASHER - 5/16" | ||
| 28 | VE2674 | ROD, CONTROL | ||
| 29 | VE2693 | END, BALL | ||
| 30 | VE2692 | BLOCK, ROD | ||
| 31 | VE2694 | PIN, BLOCK | ||
| 32 | C0312 | LOCKWASHER - 3/8" | ||
| 33 | C1522 | NUT - 3/8" - 24NF | ||
| NS|34 | NOTE: NS = NOT SHOWN | |||
| NS|35 | VE2683 | CLAMP, FRONT - PKG. 20 | ||
| NS|36 | VE5335 | BUTTON, PLUG |
