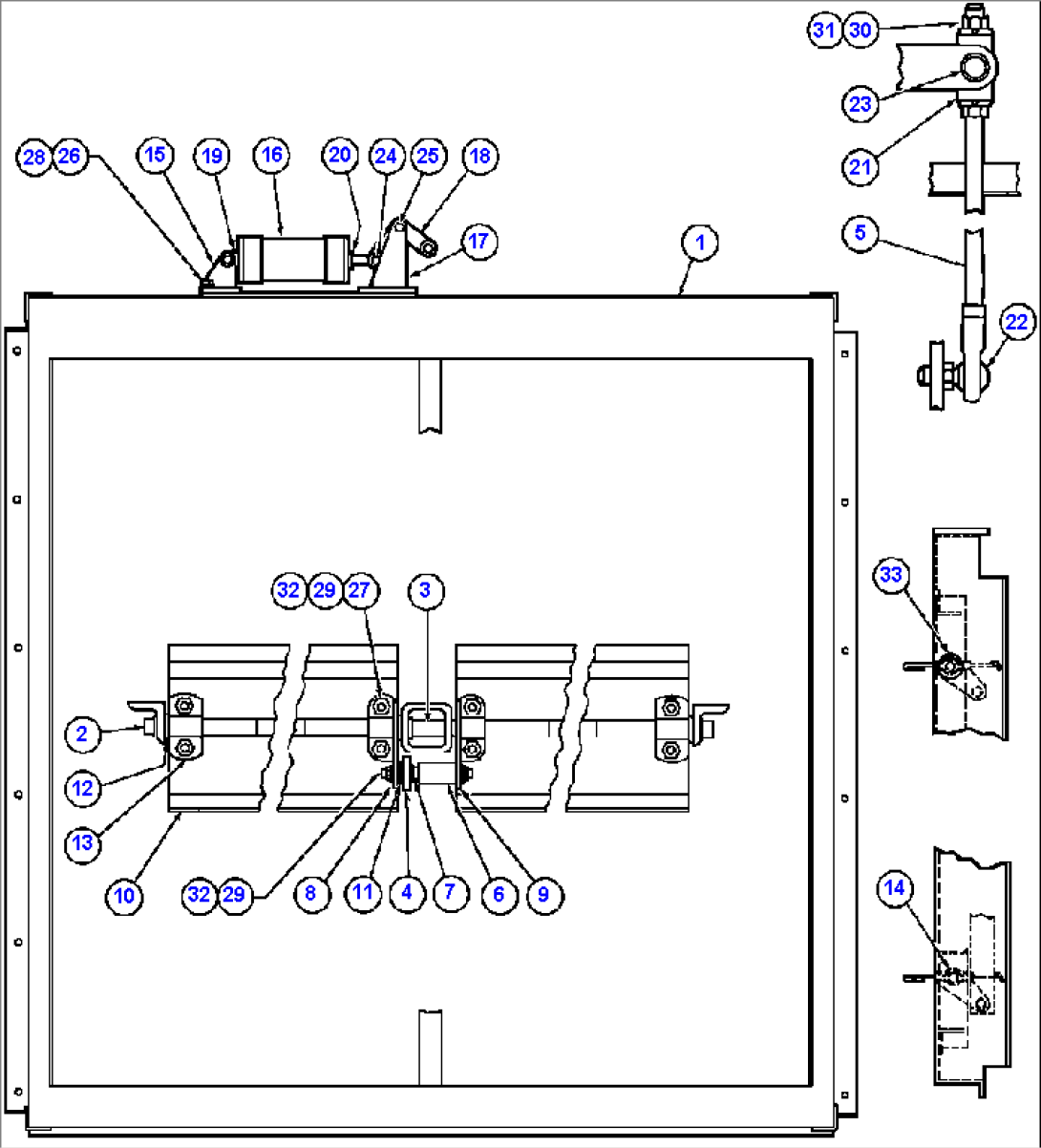

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE5458 | BOX ASSEMBLY (1) | ||
| 1 | VE5461 | BOX ASSEMBLY (2) | ||
| 2 | VE2671 | ROD, VANE - END (2) | ||
| 2 | VE2671 | ROD, VANE - END (1) | ||
| 3 | VE2672 | ROD, VANE - CENTER (2) | ||
| 3 | VE2672 | ROD, VANE - CENTER (1) | ||
| 4 | VE5459 | BAR, CONTROL (1) | ||
| 4 | VE2673 | BAR, CONTROL (2) | ||
| 5 | VE2674 | ROD, CONTROL (1) | ||
| 5 | VE5462 | ROD, CONTROL (2) | ||
| 6 | VE2675 | SLEEVE, CRANK (2) | ||
| 6 | VE2675 | SLEEVE, CRANK (1) | ||
| 7 | VE2676 | PIN, CRANK (2) | ||
| 7 | VE2676 | PIN, CRANK (1) | ||
| 8 | VE2677 | CRANK - RIGHT (2) | ||
| 8 | VE2677 | CRANK - RIGHT (1) | ||
| 9 | VE2678 | CRANK - LEFT (2) | ||
| 9 | VE2678 | CRANK - LEFT (1) | ||
| 10 | VE5460 | VANE (2) | ||
| 10 | VE5460 | VANE (1) | ||
| 11 | VE2680 | BUSHING (2) | ||
| 11 | VE2680 | BUSHING (1) | ||
| 12 | VE2681 | BUSHING (2) | ||
| 12 | VE2681 | BUSHING (1) | ||
| 13 | VE2682 | CLAMP, LOCK (2) | ||
| 13 | VE2682 | CLAMP, LOCK (1) | ||
| 14 | VE2683 | CLAMP, FRONT (2) | ||
| 14 | VE2683 | CLAMP, FRONT (1) | ||
| 15 | VE2684 | BRACKET, CYLINDER | ||
| 16 | VE2686 | CYLINDER | ||
| 17 | VE2687 | BRACKET, CYLINDER ARM | ||
| 18 | VE2688 | ARM, CYLINDER | ||
| 19 | VE2690 | MOUNT, CYLINDER | ||
| 20 | VE2691 | END, CYLINDER | ||
| 21 | VE2692 | BLOCK, ROD | ||
| 22 | VE2693 | BALL | ||
| 23 | VE2694 | PIN, BLOCK | ||
| 24 | VE2695 | PIN, CYLINDER ARM | ||
| 25 | VE2696 | PIN | ||
| 26 | C1598 | CAPSCREW - 5/16" - 18NC X 1" | ||
| 27 | VE2700 | STUD, SPLINED (2) | ||
| 27 | VE2700 | STUD, SPLINED (1) | ||
| 28 | C1538 | LOCKWASHER - 5/16" | ||
| 29 | C5774 | LOCKWASHER - 1/4" (2) | ||
| 29 | C5774 | LOCKWASHER - 1/4" (1) | ||
| 30 | C0312 | LOCKWASHER - 3/8" | ||
| 31 | C1522 | NUT - 3/8" - 24NF | ||
| 32 | C5780 | NUT - 1/4" - 20NC (2) | ||
| 32 | C5780 | NUT - 1/4" - 20NC (1) | ||
| 33 | VE5335 | BUTTON, PLUG | ||
| NS|51 | NOTE: (1) USED W/ 55" X 55" HEAVY DUTY RADIATOR. | |||
| NS|52 | (2) USED WITH 55" X 45" RADIATOR. |
