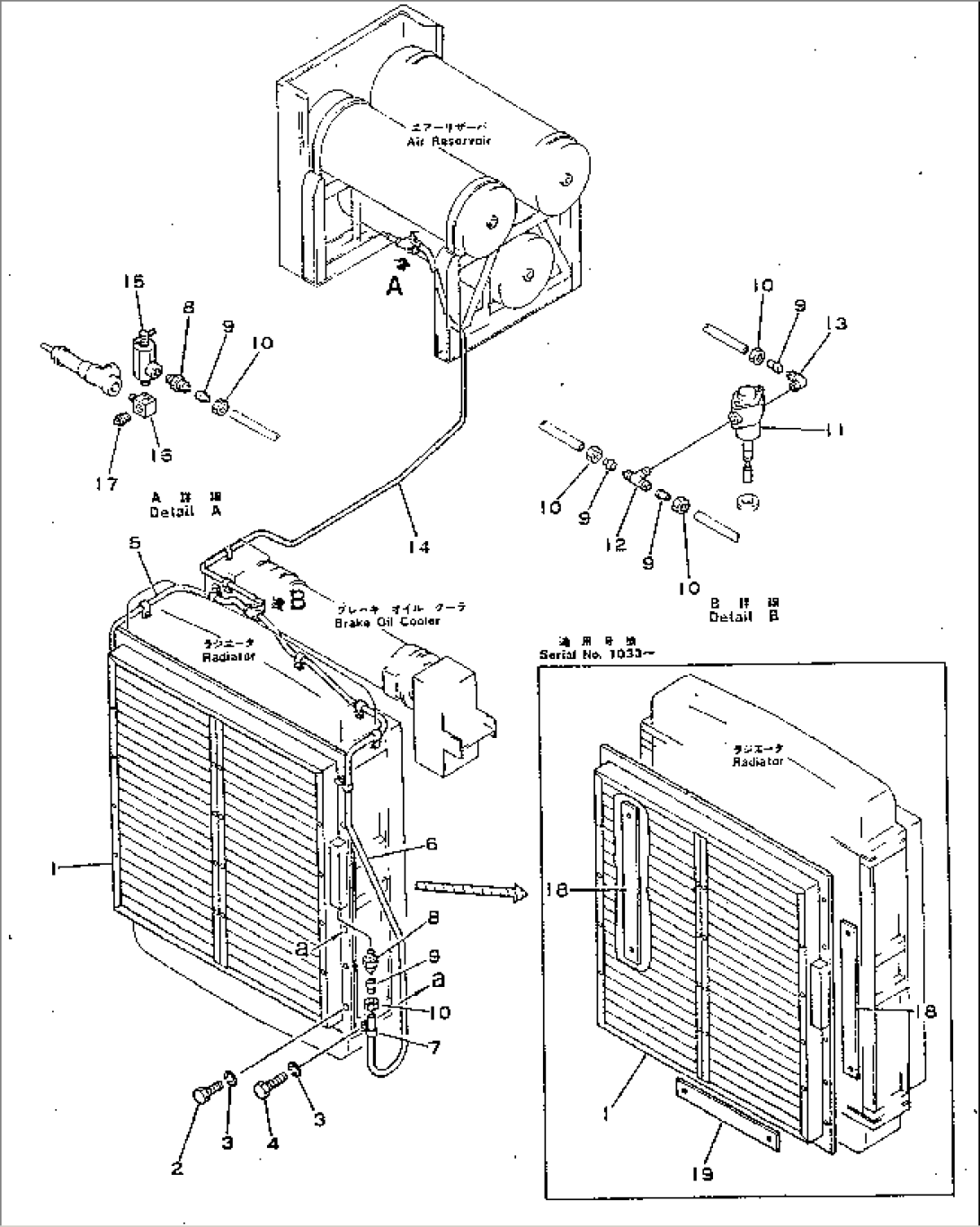

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-03-26001 | SHUTTER ASS'Y | 1033- | ||
| 568-03-26000 | SHUTTER ASS'Y | 1002-1032 | ||
| 1 | 568-03-26100 | SHUTTER | 1002- | |
| 2 | 01010-51230 | BOLT | 1033- | |
| 2 | 01010-51225 | BOLT | 1002-1032 | |
| 3 | 01602-21236 | WASHER | 1033- | |
| 3 | 01602-21236 | WASHER | 1002-1032 | |
| 4 | 01010-51235 | BOLT | 1033- | |
| 4 | 01010-51220 | BOLT | 1002-1032 | |
| 5 | 07822-00419 | TUBE | 1002- | |
| 6 | 07822-00422 | TUBE | 1002- | |
| 7 | 08036-10814 | CLIP | 1002- | |
| 8 | 07836-00410 | CONNECTOR | 1002- | |
| 9 | 07831-00411 | SLEEVE | 1002- | |
| 10 | 07832-00410 | NUT | 1002- | |
| 11 | 568-03-26410 | SHUTTER STAT ASS'Y | 1002- | |
| 12 | 07835-00410 | TEE | 1002- | |
| 13 | 07834-00410 | ELBOW | 1002- | |
| 14 | 07822-00440 | TUBE | 1002- | |
| 15 | 568-03-26421 | VALVE ASS'Y | 1002- | |
| 16 | 485-44-11470 | JOINT | 1002- | |
| 17 | 07042-00211 | PLUG | 1002- | |
| 18 | 568-03-26510 | PLATE | 1002- | |
| 19 | 568-03-26520 | PLATE | 1002- |
