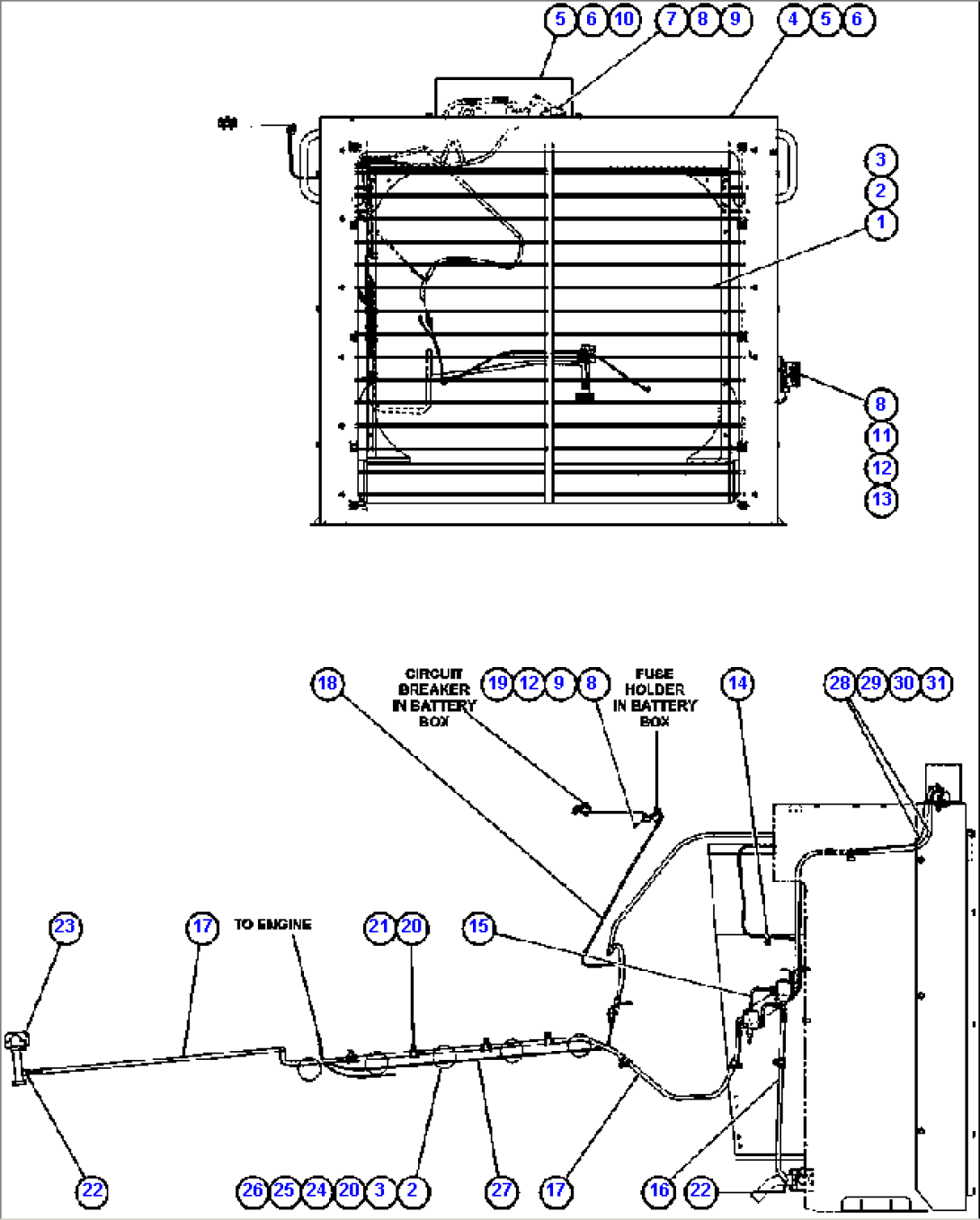

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC1138 | SHUTTER ASSEMBLY (SEE INDEX) | ||
| 2 | 01010-81016 | CAPSCREW | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | EJ7730 | EXTENSION, HOOD | ||
| 5 | 01010-61225 | CAPSCREW | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | PC1146 | RELAY - 24V | ||
| 8 | 01643-30623 | WASHER | ||
| 9 | 01580-10605 | NUT | ||
| 10 | EJ7731 | COVER | ||
| 11 | EH5421 | BOX, SWITCH (SEE INDEX) | ||
| 12 | 01010-80612 | CAPSCREW | ||
| 13 | TD2186 | GROMMET, RUBBER | ||
| 14 | TG2562 | CLAMP - 1/2" I.D. | ||
| 15 | EJ7736 | VALVE, SHUTTER CONTROL (SEE INDEX) | ||
| 16 | HA5648 | HOSE | ||
| 17 | HA7842 | HOSE | ||
| 18 | EJ9535 | HARNESS | ||
| 19 | EJ9185 | CLIP | ||
| 20 | VN9908 | CLAMP - 1" I.D. | ||
| 21 | 566-06-41290 | INSULATOR | ||
| 22 | PC0947 | ADAPTER, STRAIGHT | ||
| 23 | TUBE (SEE FIG 16374, TRANSMISSION PIPING) | |||
| 24 | WA4649 | CLAMP - 11/16" I.D. | ||
| 25 | 07095-20318 | CUSHION, HOSE | ||
| 26 | 01580-11008 | NUT | ||
| 27 | EJ9536 | HARNESS | ||
| 28 | HA5643 | HOSE | ||
| 29 | WB0261 | ELBOW - 90 DEG | ||
| 30 | 424243 | CLAMP - 3/8" I.D. | ||
| 31 | 22D-06-13290 | CLIP |
