| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-U42-1110 | GRILL,(MODIFIED PART) | 10001-19999 | |
| 2 | 01010-51220 | BOLT | 10001-19999 | |
| 3 | 01602-01236 | WASHER,SPRING | 10001-19999 | |
| 4 | 416-U42-1211 | SHUTTER | 10001-19999 | |
| 5 | 416-U42-1220 | HOOK | 10001-19999 |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa100 1 s/n 10001 up
- Frame and guard
- Radiator shutter(#10001 19999)
Поиск по каталогу

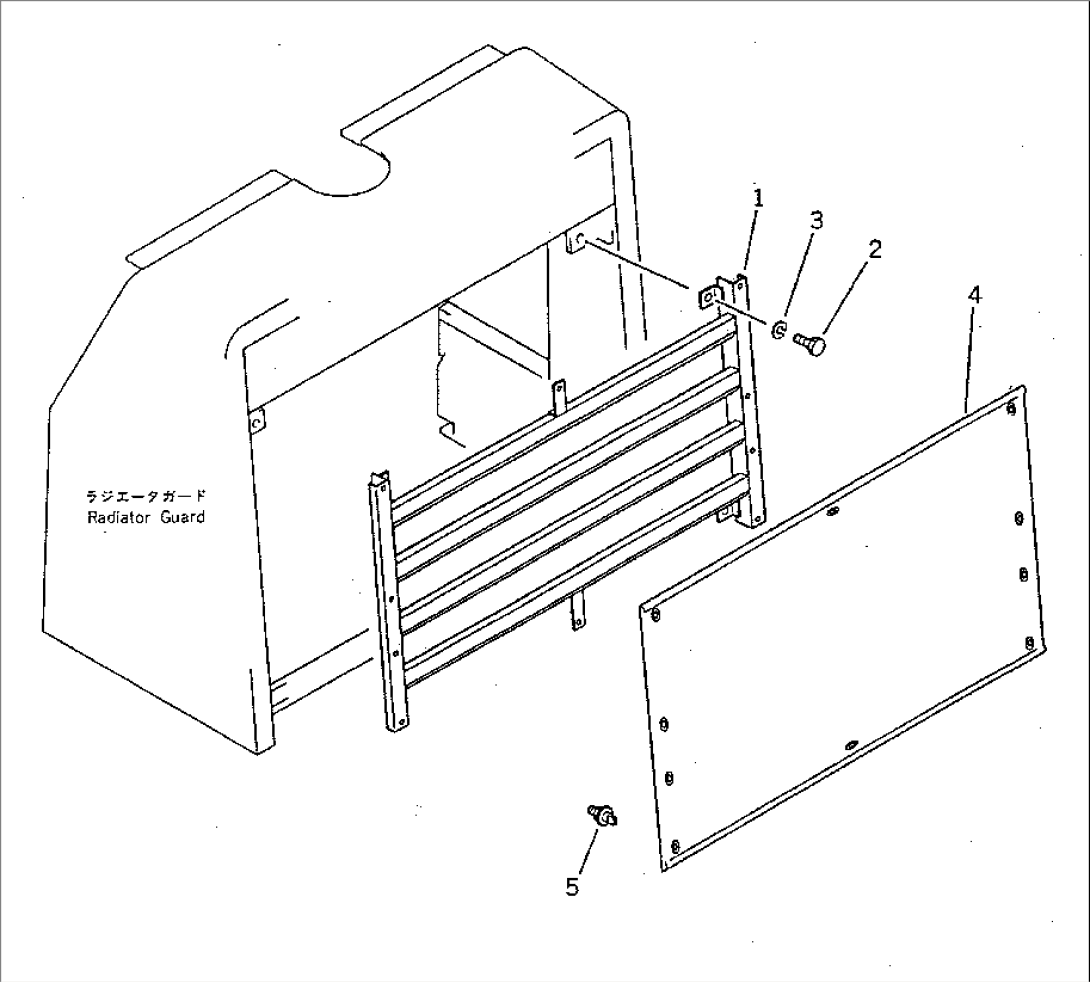

RADIATOR SHUTTER(#10001-19999)
