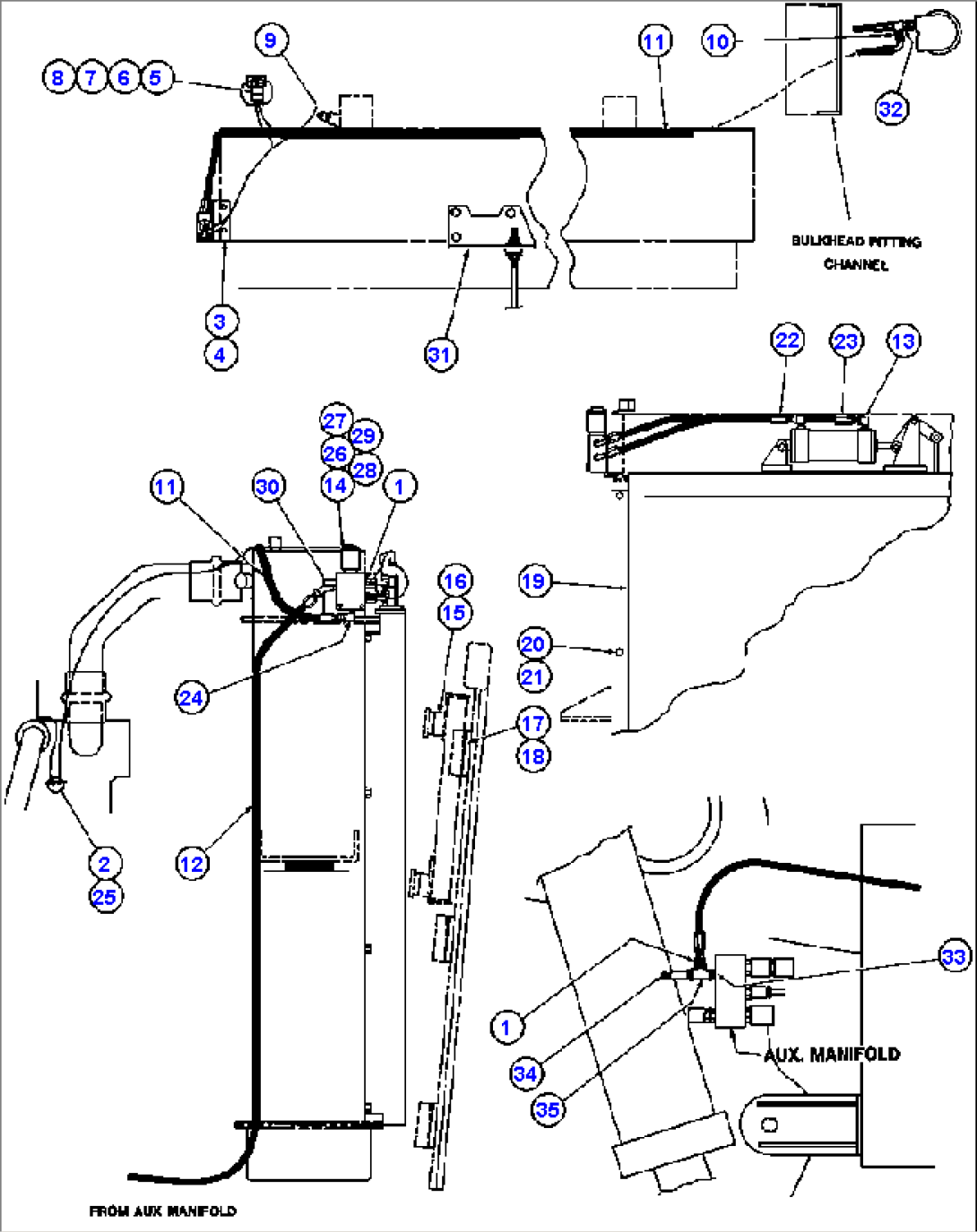

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TD9719 | ADAPTOR | ||
| 2 | PB7420 | SWITCH, TEMPERATURE | ||
| 3 | TZ6059 | BRACKET | ||
| 4 | H8620 | CAPSCREW - 5/16" - 18NC X 1 1/4" | ||
| 5 | PB4767 | RELAY | ||
| 6 | VF2231 | MACHINE SCREW - #10 X 3/8" | ||
| 7 | DC3101 | HARNESS | ||
| 8 | TZ8408 | PAD, TAPPED | ||
| 9 | TZ6065 | HARNESS | ||
| 10 | WB0241 | ADAPTOR, STRAIGHT | ||
| 11 | HA6440 | HOSE | ||
| 12 | HA2515 | HOSE | ||
| 13 | VY4902 | TUBE, FITTING | ||
| 14 | PB7422 | VALVE, SOLENOID | ||
| 15 | TZ6057 | SPACER | ||
| 16 | C1621 | CAPSCREW - 1/2" - 13NC X 3 1/4" | ||
| 17 | TZ6058 | SPACER | ||
| 18 | TR4065 | CAPSCREW - 1/4' - 20NC X 1 3/4" | ||
| 19 | SHUTTER ASSM (SEE FIG 15418) | |||
| 20 | C1598 | CAPSCRW - 5/16" - 18NC X 1" | ||
| 21 | C1538 | LOCKWASHER - 5/16" | ||
| 22 | HA6392 | HOSE | ||
| 23 | HA6393 | HOSE | ||
| 24 | DL2676 | TUBE, FITTING | ||
| 25 | VZ3039 | WIRE | ||
| 26 | C7591 | CAPSCREW - 1/4" - 20NC X 2" | ||
| 27 | C1546 | FLAT WASHER - 1/4" | ||
| 28 | C5774 | LOCKWASHER - 1/4" | ||
| 29 | C5780 | NUT - 1/4" - 20NC | ||
| 30 | DL4791 | FITTING, TUBE | ||
| 31 | TZ8403 | BRACKET | ||
| 32 | WB0089 | FITTING, TEE | ||
| 33 | SV5630 | ADAPTOR | ||
| 34 | PB7413 | COUPLING, QUICK DISCONNECT | ||
| 35 | R2508 | TEE |
