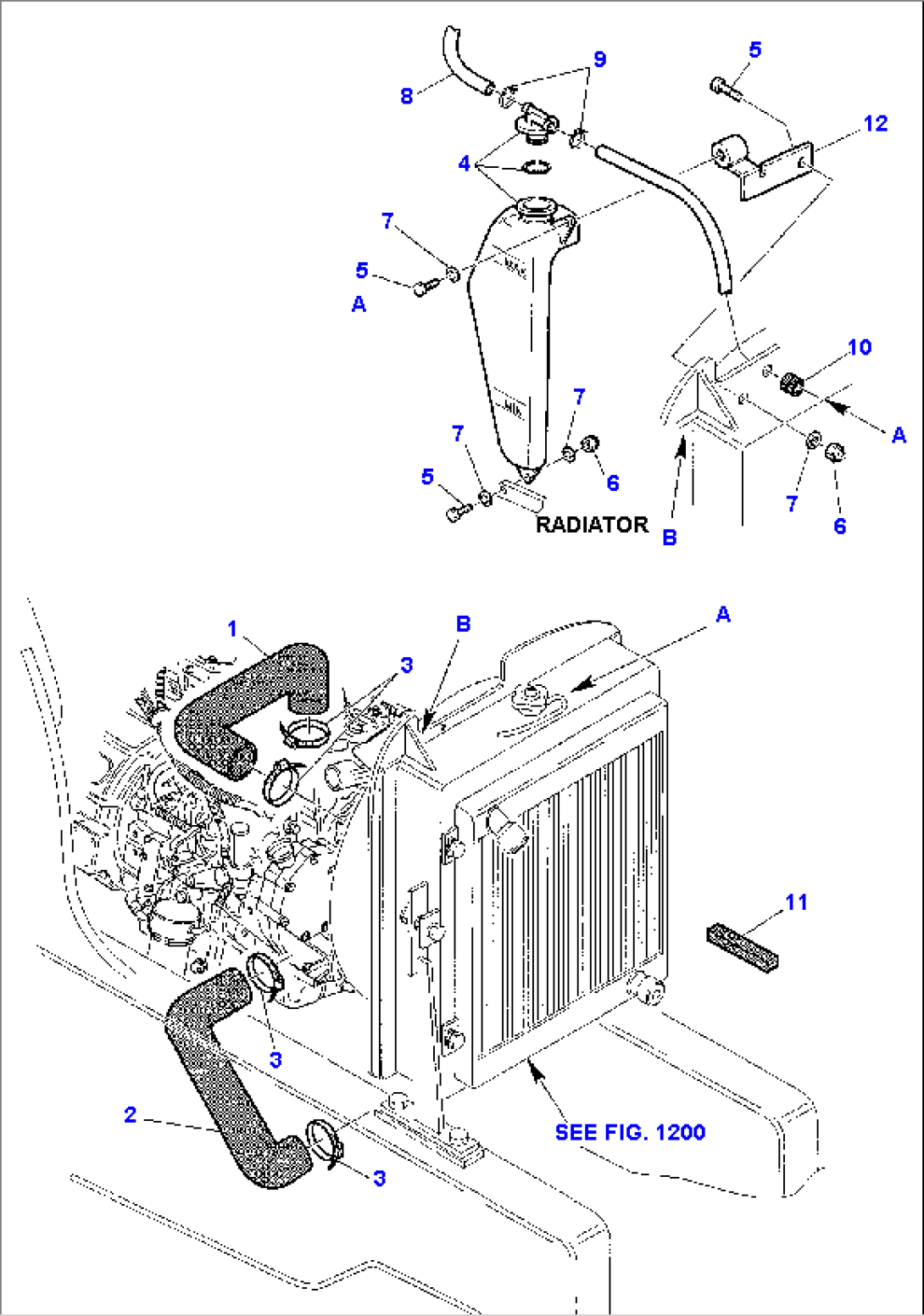

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312607684 | HOSE | 15050001- | |
| 2 | 312607683 | HOSE | 15050001- | |
| 3 | 802660012 | CLAMP | 15050001- | |
| 4 | 312607069 | CHAMBER | 15050001- | |
| 5 | 801015087 | BOLT | 15050001- | |
| 6 | 801880208 | SELF-LOCKING NUT | 15050001- | |
| 7 | 802170001 | WASHER | 15050001- | |
| 8 | 852990030 | PIPE | 15050001- | |
| 9 | 802660030 | CLAMP | 15050001- | |
| 10 | 885411159 | RUBBER | 15050001- | |
| 11 | 855710505 | GASKET | 15050001- | |
| 12 | 312607094 | UPPER SUPPORT | 15050001- | |
| SEE FIG. 1200 |
