| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-43-17930 | Cushion | 66847- | |
| 2 | 415-64-13130 | Cushion | 66847- | |
| 3 | 417-54-13470 | Spacer | 66847- | |
| 4 | 419-43-17920 | Washer | 66847- | |
| 5 | 01010-81245 | Bolt | 66847- | |
| 6 | 423-03-41510 | Seal | 66847- | |
| 7 | 423-03-41540 | Seal | 66847- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa380z 6 s/n 66847 up
- Cooling system
- Radiator, torque converter cooler mounting (#66847 )
Поиск по каталогу

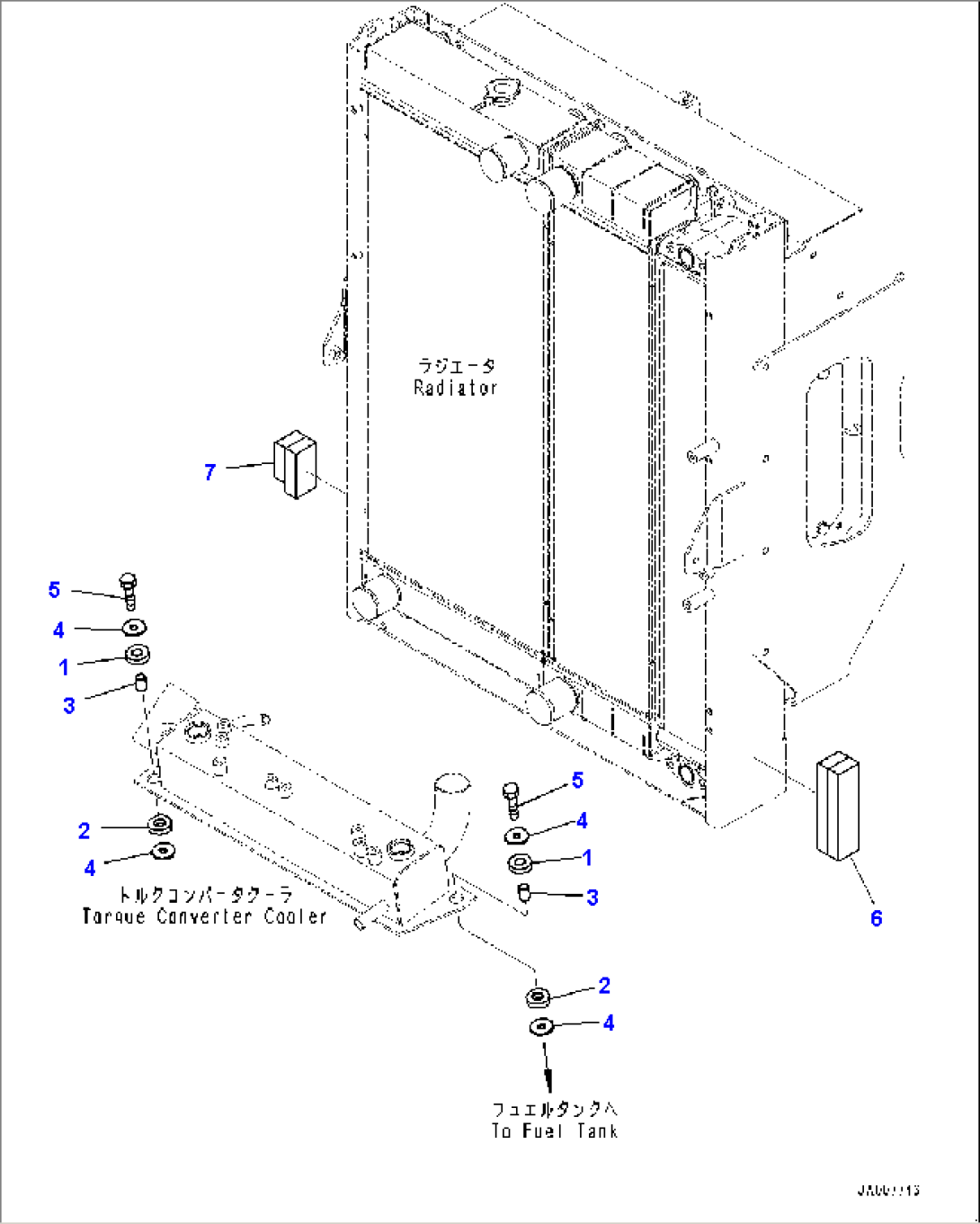

Radiator, Torque Converter Cooler Mounting (#66847-)
