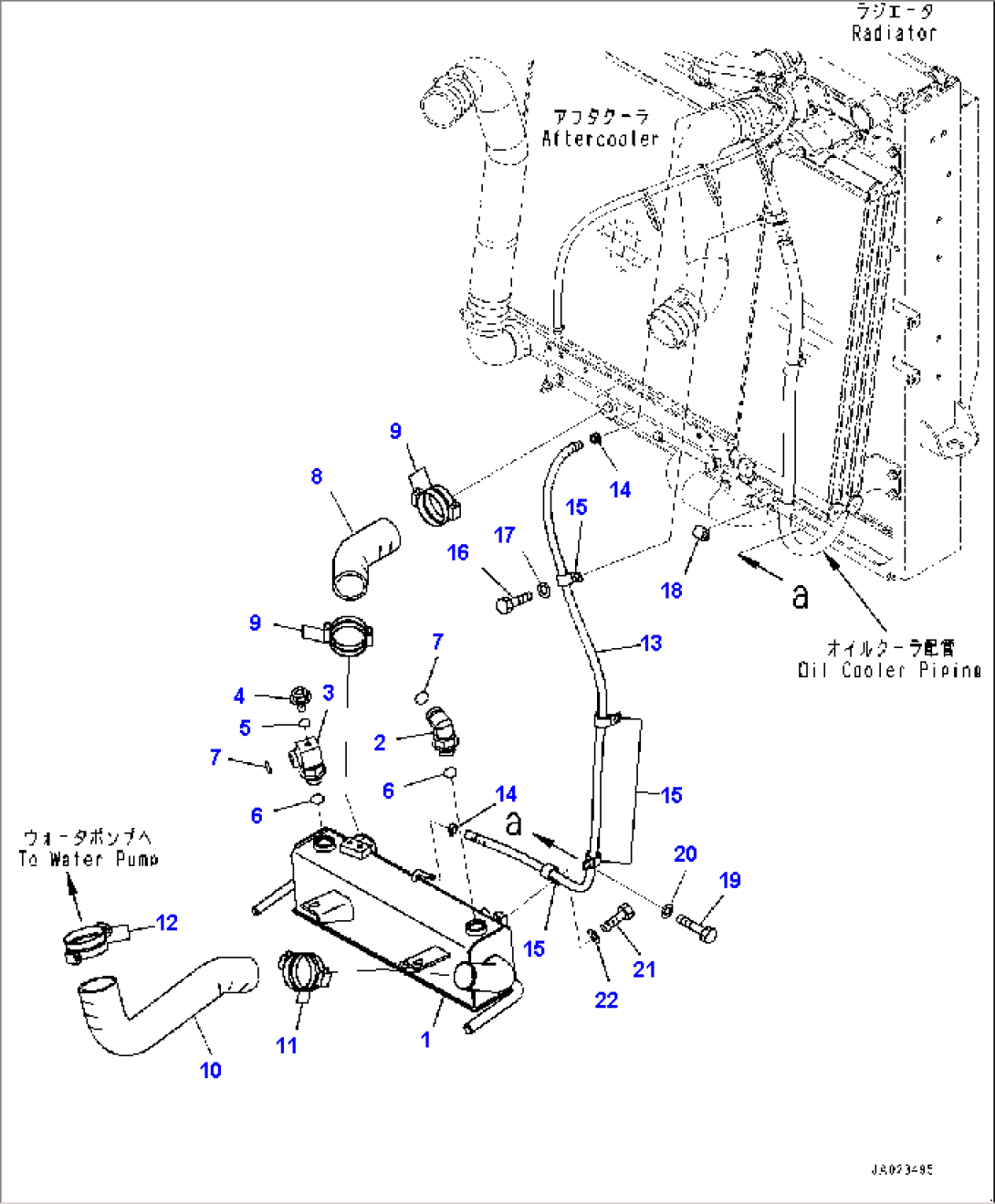

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-16-45160 | Cooler | 90216- | |
| 2 | 21W-62-42640 | Elbow | 90216- | |
| 3 | 421-03-42230 | Elbow | 90216- | |
| 4 | 708-8E-16150 | Plug | 90216- | |
| 5 | 07002-11023 | O-ring | 90216- | |
| 6 | 07002-23334 | O-ring | 90216- | |
| 7 | 21T-09-31160 | O-ring | 91435- | |
| 7 | 421-09-31140 | O-ring | 90216-91434 | |
| 8 | 421-03-42250 | Hose | 90216- | |
| 9 | 07289-00070 | Clamp | 90216- | |
| 10 | 421-03-32132 | Hose | 90216- | |
| 11 | 07289-00070 | Clamp | 90216- | |
| 12 | 07289-00080 | Clamp | 90216- | |
| 13 | 421-16-41180 | Hose | 90216- | |
| 14 | 11Y-09-11140 | Clip | 90216- | |
| 15 | 04434-52312 | Clip | 90216- | |
| 16 | 01010-81020 | Bolt | 90216- | |
| 17 | 01643-31032 | Washer | 90216- | |
| 18 | 195-33-11220 | Spacer | 90216- | |
| 19 | 01010-81045 | Bolt | 90216- | |
| 20 | 01643-31032 | Washer | 90216- | |
| 21 | 01010-81016 | Bolt | 90216- | |
| 22 | 01643-31032 | Washer | 90216- |
