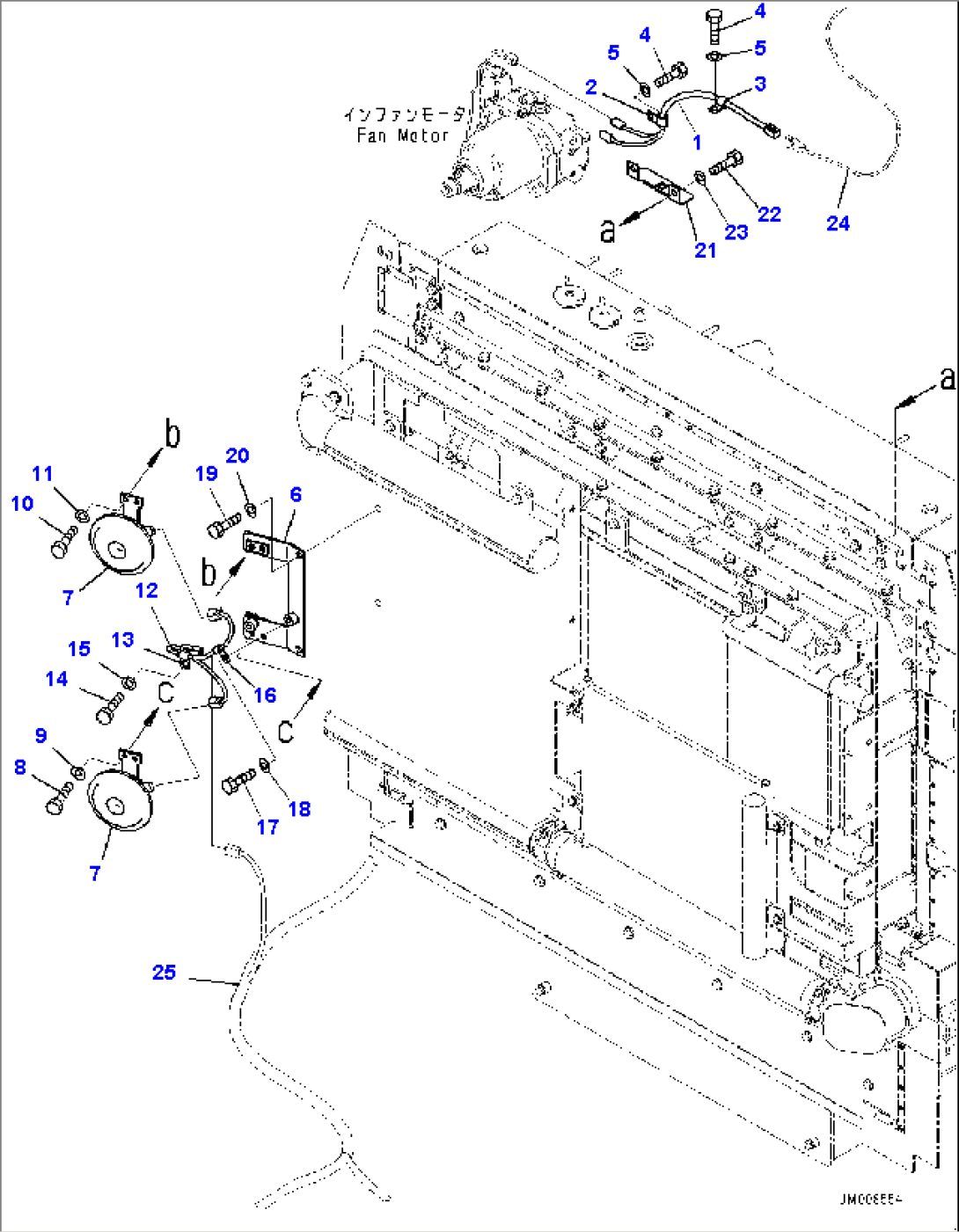

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-8L310 | Wiring Harness | 30001- | |
| 2 | 04434-51412 | Clip | 30001- | |
| 3 | 04434-51312 | Clip | 30001- | |
| 4 | 01010-81220 | Bolt | 30001- | |
| 5 | 01643-31232 | Washer | 30001- | |
| 5 | 569-06-8L131 | Horn Assembly | 30001- | |
| 6 | 569-06-8L341 | Bracket | 30001- | |
| 7 | 08160-82403 | Horn, 2 Set(s) | 30001- | |
| 8 | 01010-81025 | Bolt | 30001- | |
| 9 | 01643-31032 | Washer | 30001- | |
| 10 | 01010-81030 | Bolt | 30001- | |
| 11 | 01643-31032 | Washer | 30001- | |
| 12 | 569-06-8L551 | Wiring Harness | 30001- | |
| 13 | 04434-51012 | Clip | 30001- | |
| 14 | 01010-81220 | Bolt | 30001- | |
| 15 | 01643-31232 | Washer | 30001- | |
| 16 | 04434-50812 | Clip | 30001- | |
| 17 | 01010-81220 | Bolt | 30001- | |
| 18 | 01643-31232 | Washer | 30001- | |
| 19 | 01010-81230 | Bolt | 30001- | |
| 20 | 01643-31232 | Washer | 30001- | |
| 21 | 569-03-8M380 | Cover | 30001- | |
| 22 | 01010-81225 | Bolt | 30001- | |
| 23 | 01643-31232 | Washer | 30001- | |
| 24 | (569-06-8L221) | Wiring Harness | - | |
| 25 | (569-06-8L291) | Wiring Harness | - |
