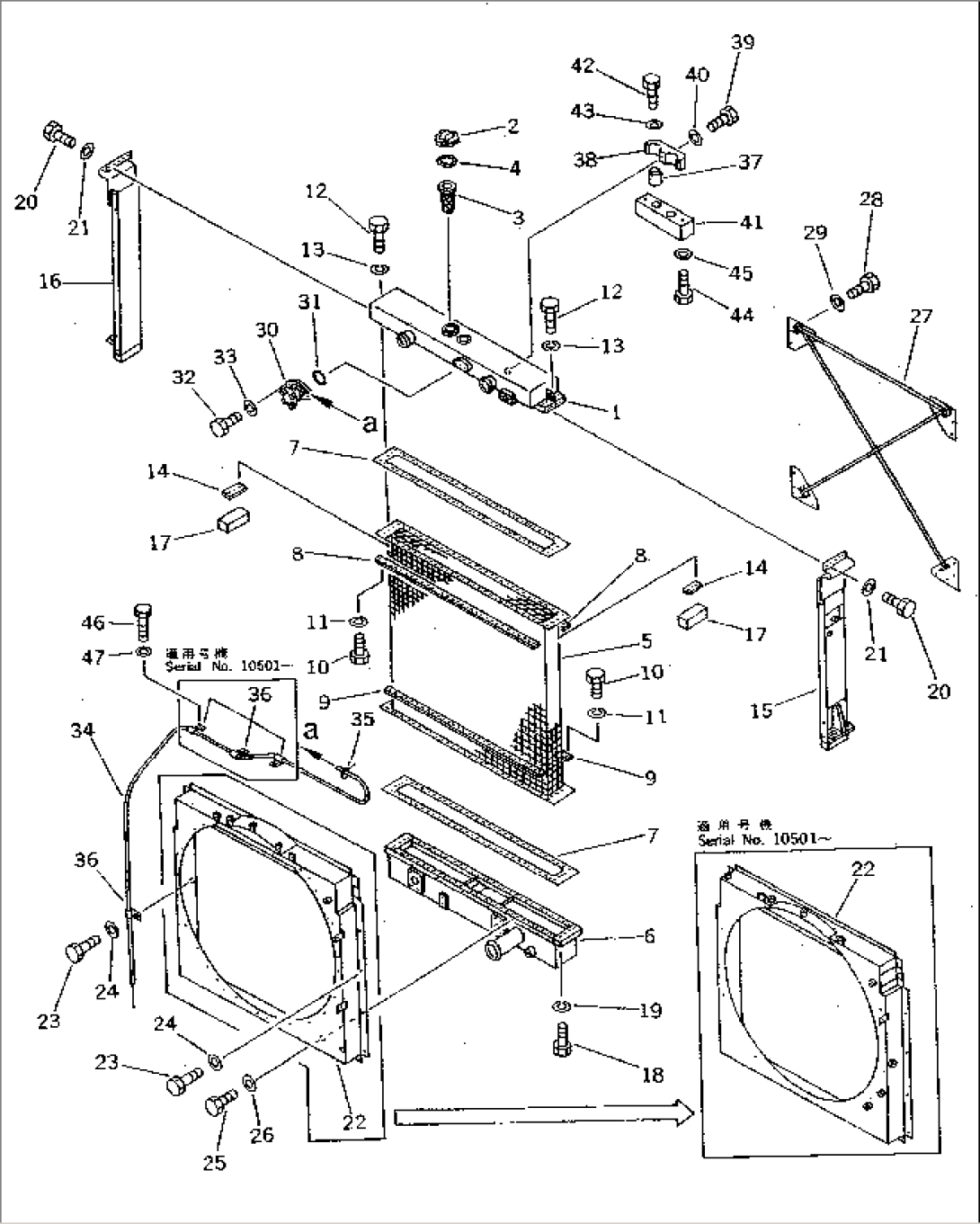

| Item | Part No. | Part Name | Qty | Serial No. |
| 427-03-11103 | RADIATOR ASS'Y | 10535-10585 | ||
| 427-03-11102 | RADIATOR ASS'Y | 10501-10534 | ||
| 427-03-11101 | RADIATOR ASS'Y | 10001-10499 | ||
| 1 | 427-03-11120 | TANK,UPPER | 10001-@ | |
| 2 | 07053-10001 | CAP | 10001-@ | |
| 07053-00002 | GASKET | 10001-@ | ||
| 3 | 07056-00048 | STRAINER | 10001-@ | |
| 4 | 170-03-91180 | RING,SNAP | 10001-@ | |
| 5 | 427-03-11130 | CORE | 10001-@ | |
| 6 | 427-03-11140 | TANK,LOWER (WITH OIL COOLER) | 10001-10585 | |
| 7 | 427-03-11190 | GASKET | 10001-@ | |
| 8 | 427-03-11150 | PLATE | 10001-@ | |
| 9 | 427-03-11160 | PLATE | 10001-@ | |
| 10 | 01010-81030 | BOLT | 10001-@ | |
| 11 | 01602-21030 | WASHER,SPRING | 10001-@ | |
| 12 | 01010-81250 | BOLT | 10001-@ | |
| 13 | 01602-21236 | WASHER,SPRING | 10001-@ | |
| 14 | 425-03-11180 | PLATE | 10001-@ | |
| 15 | 427-03-11170 | SUPPORT,L.H. | 10001-10585 | |
| 16 | 427-03-11180 | SUPPORT,R.H. | 10001-10585 | |
| 17 | 427-03-11210 | PACKING | 10001-@ | |
| 18 | 01010-81260 | BOLT | 10001-@ | |
| 19 | 01602-21236 | WASHER,SPRING | 10001-@ | |
| 20 | 01010-51225 | BOLT | 10001-10585 | |
| 21 | 01643-31232 | WASHER | 10001-@ | |
| 22 | 427-03-11223 | SHROUD | 10535-@ | |
| 427-03-11222 | SHROUD | 10501-10534 | ||
| 427-03-11221 | SHROUD | 10001-10499 | ||
| 23 | 01010-81225 | BOLT | 10001-@ | |
| 24 | 01643-31232 | WASHER | 10001-@ | |
| 25 | 01010-81220 | BOLT | 10001-@ | |
| 26 | 01643-31232 | WASHER | 10001-@ | |
| 27 | 427-03-11230 | STAY,CROSS | 10001-@ | |
| 28 | 01010-51230 | BOLT | 10001-10585 | |
| 29 | 01643-31232 | WASHER | 10001-10585 | |
| 30 | 154-03-11682 | VALVE | 10001-@ | |
| 31 | 07000-13045 | O-RING | 10001-@ | |
| 32 | 01010-81025 | BOLT | 10001-@ | |
| 33 | 01602-21030 | WASHER,SPRING | 10001-@ | |
| 34 | 427-03-11260 | PIPE | 10001-@ | |
| 35 | 04059-01010 | WIRE,LOCK | 10001-@ | |
| 36 | 175-03-11140 | CLIP | 10501-@ | |
| 175-03-11140 | CLIP | 10001-10499 | ||
| 37 | 198-03-22290 | ISOLATOR | 10001-@ | |
| 38 | 198-03-22330 | BRACKET | 10001-@ | |
| 39 | 01010-81260 | BOLT | 10001-@ | |
| 40 | 198-03-22450 | WASHER | 10001-@ | |
| 41 | 427-03-11250 | BLOCK | 10001-@ | |
| 42 | 01090-52290 | BOLT | 10001-@ | |
| 43 | 01643-32260 | WASHER | 10001-@ | |
| 44 | 01010-81025 | BOLT | 10001-@ | |
| 45 | 01643-31032 | WASHER | 10001-@ | |
| 46 | 01010-51016 | BOLT | 10501-@ | |
| 47 | 01643-31032 | WASHER | 10501-@ |
