| Item | Part No. | Part Name | Qty | Serial No. |

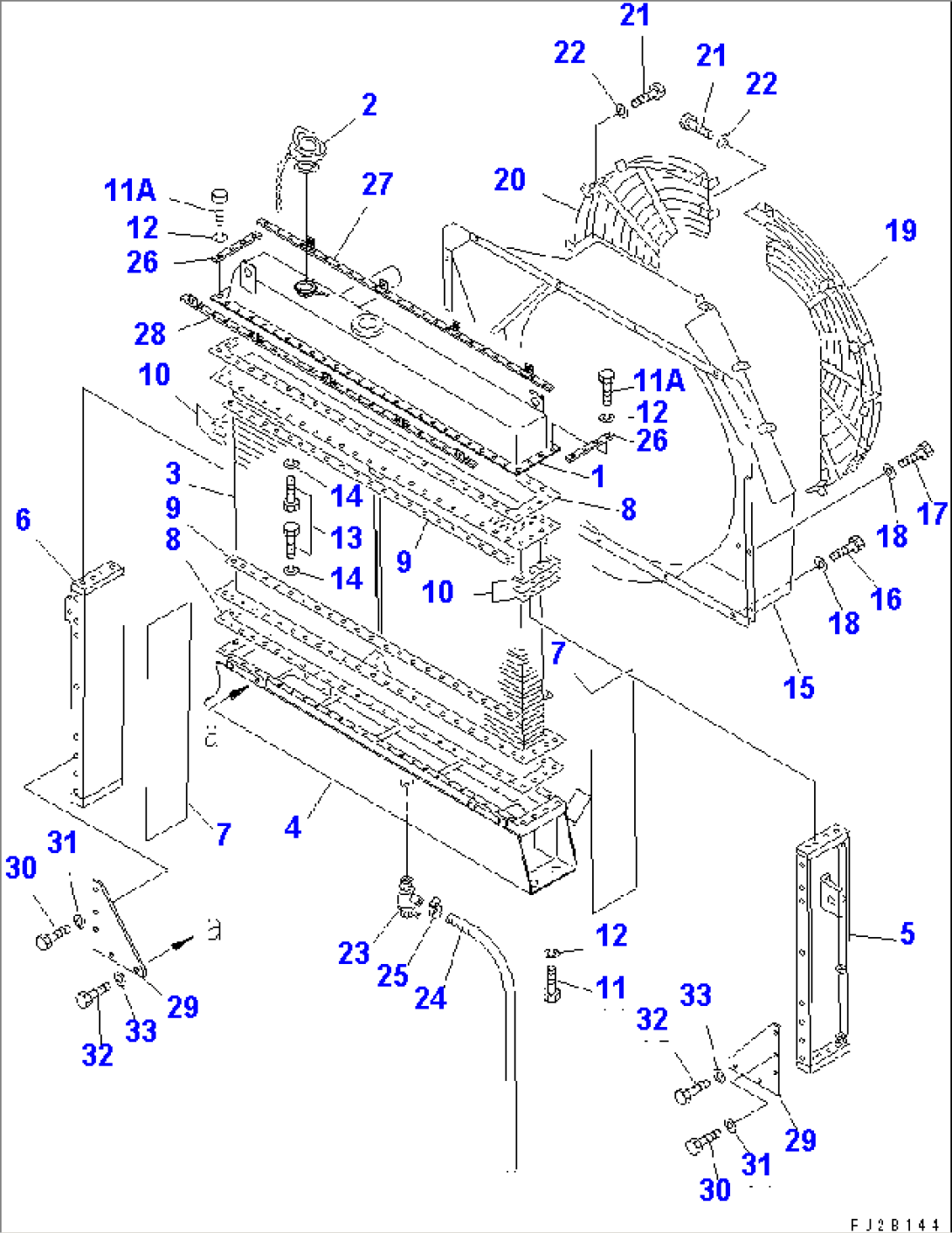

| 566-03-6A101 | RADIATOR ASS'Y | 1001-1054 | ||
| 1 | 566-03-6A111 | TANK,UPPER | 1001-@ | |
| 2 | 23S-03-11150 | CAP ASS'Y | 1001-@ | |
| 3 | 566-03-6A120 | CORE | 1001-@ | |
| 4 | 566-03-6A310 | TANK,LOWER | 1001-1054 | |
| 5 | 566-03-6A131 | SUPPORT,L.H. | 1001-@ | |
| 6 | 566-03-6A141 | SUPPORT,R.H. | 1001-@ | |
| 7 | 566-03-6A150 | PACKING | 1001-@ | |
| 8 | 566-03-6A320 | GASKET | 1001-@ | |
| 9 | 566-03-11451 | PLATE | 1001-@ | |
| 10 | 566-03-41160 | SHIM, 0.6MM | 1001-@ | |
| 11 | 01010-81265 | BOLT | 1001-@ | |
| 11A | 01010-81245 | BOLT | 1001-@ | |
| 12 | 01602-21236 | WASHER,SPRING | 1001-@ | |
| 13 | 01010-81030 | BOLT | 1001-@ | |
| 14 | 01602-21030 | WASHER,SPRING | 1001-@ | |
| 15 | 566-03-6A163 | SHROUD | 1001-@ | |
| 16 | 01010-81016 | BOLT | 1001-@ | |
| 17 | 01010-81025 | BOLT | 1001-@ | |
| 18 | 01643-31032 | WASHER | 1001-@ | |
| 19 | 566-03-41481 | NET,L.H. | 1001-@ | |
| 20 | 566-03-41491 | NET,R.H. | 1001-@ | |
| 21 | 01010-81025 | BOLT | 1001-@ | |
| 22 | 01643-31032 | WASHER | 1001-@ | |
| 23 | 195-03-13241 | VALVE,DRAIN | 1001-@ | |
| 24 | 07270-01515 | TUBE,DRAIN | 1001-@ | |
| 25 | 07281-00197 | CLAMP | 1001-@ | |
| 26 | 566-03-6A330 | PLATE | 1001-@ | |
| 27 | 566-03-6A340 | PLATE | 1001-@ | |
| 28 | 566-03-6A350 | PLATE | 1001-@ | |
| 29 | 566-03-6A370 | PLATE | 1001-@ | |
| 30 | 01010-81245 | BOLT | 1001-@ | |
| 31 | 01643-31232 | WASHER | 1001-@ | |
| 32 | 01010-81225 | BOLT | 1001-@ | |
| 33 | 01643-31232 | WASHER | 1001-@ |
