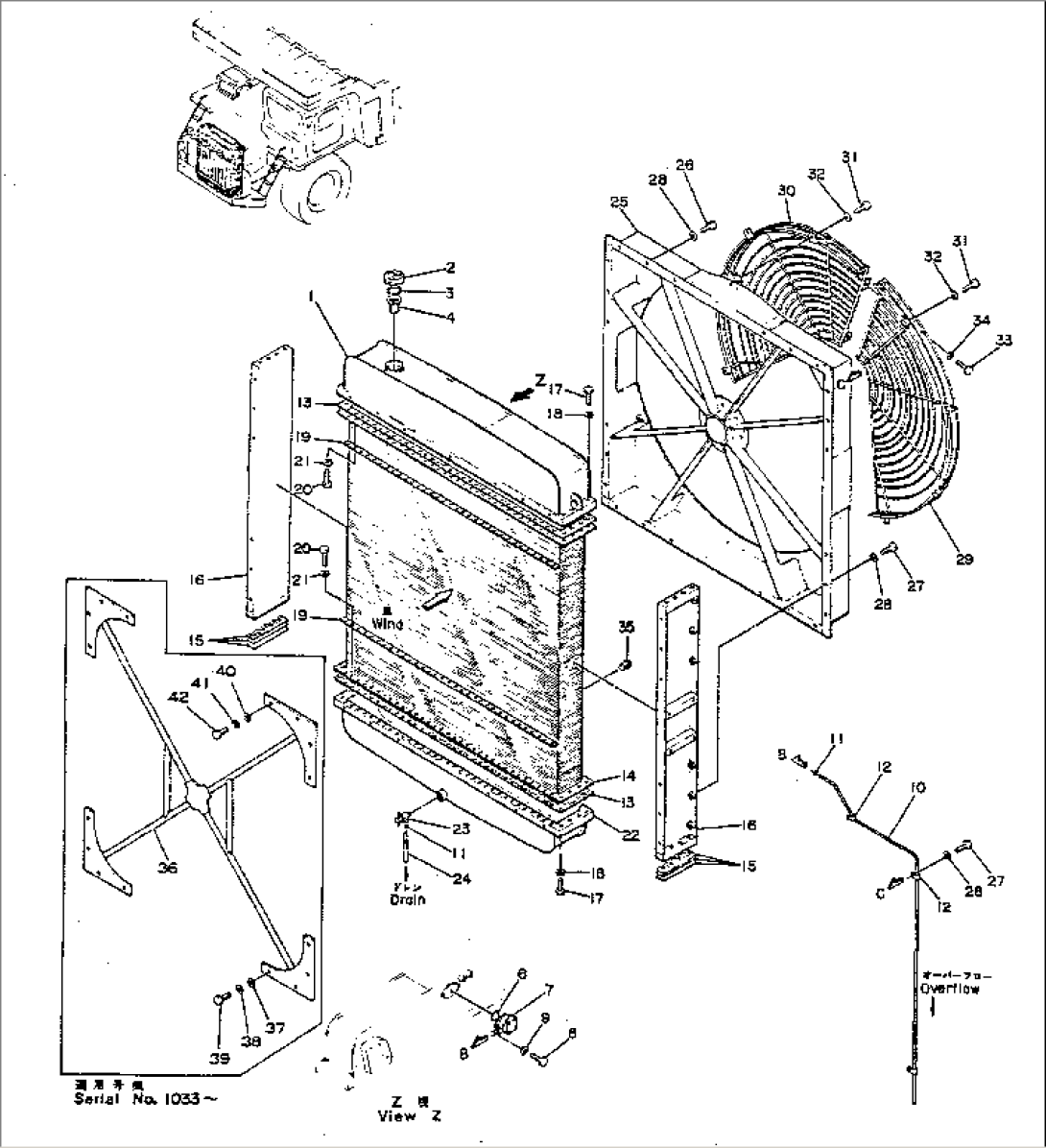

| Item | Part No. | Part Name | Qty | Serial No. |
| 568-03-21304 | RADIATOR ASS'Y | 1002-@ | ||
| \0\568-03-21302 | RADIATOR ASS'Y | 1033-1087 | ||
| \0\568-03-21301 | RADIATOR ASS'Y | 1002-1032 | ||
| 1 | 568-03-21310 | TANK | 1002-1087 | |
| 2 | 07053-10000 | CAP | 1002-@ | |
| 3 | 07057-03271 | RING | 1002-@ | |
| 4 | 07056-00048 | STRAINER | 1002-@ | |
| 6 | 07000-03045 | O-RING | 1002-@ | |
| 7 | 154-03-11681 | VALVE | 1002-@ | |
| 8 | 01010-51020 | BOLT | 1002-@ | |
| 9 | 01602-21030 | WASHER | 1002-@ | |
| 10 | 566-03-11240 | TUBE | 1002-@ | |
| 11 | 04059-01010 | WIRE | 1002-1087 | |
| 12 | 195-03-11690 | CLIP | 1002-@ | |
| 13 | 566-03-11151 | GASKET | 1002-@ | |
| 14 | 568-03-21340 | CORE | 1002-@ | |
| 15 | 566-03-11160 | SHIM, 0.6MM | 1002-1087 | |
| 16 | 568-03-21330 | SUPPORT | 1002-1087 | |
| 17 | 01010-51260 | BOLT | 1002-@ | |
| 18 | 01602-21236 | WASHER | 1002-@ | |
| 19 | 566-03-11451 | PLATE | 1002-@ | |
| 20 | 01010-51025 | BOLT | 1002-@ | |
| 21 | 01602-21030 | WASHER | 1002-@ | |
| 22 | 568-03-21320 | TANK | 1002-@ | |
| 23 | 195-03-13241 | VALVE | 1002-@ | |
| 24 | 07270-01515 | TUBE | 1002-@ | |
| 25 | 568-03-21350 | GUARD | 1002-1087 | |
| 26 | 01010-51220 | BOLT | 1002-1087 | |
| 27 | 01010-51230 | BOLT | 1002-1087 | |
| 28 | 01602-21236 | WASHER | 1002-1087 | |
| 29 | 568-03-21360 | NET | 1002-@ | |
| 30 | 568-03-21370 | NET | 1002-@ | |
| 31 | 01010-51225 | BOLT | 1002-@ | |
| 32 | 01602-21236 | WASHER | 1002-@ | |
| 33 | 01010-51225 | BOLT | 1002-1087 | |
| 34 | 01602-21236 | WASHER | 1002-1087 | |
| 35 | 07042-20415 | PLUG | 1002-1087 | |
| 36 | 568-03-21610 | STAY | 1033-@ | |
| 37 | 01643-31232 | WASHER | 1033-1087 | |
| 38 | 01602-21236 | WASHER | 1033-1087 | |
| 39 | 01010-51230 | BOLT | 1033-1087 | |
| 40 | 01643-31232 | WASHER | 1033-1087 | |
| 41 | 01602-21236 | WASHER | 1033-1087 | |
| 42 | 01010-51240 | BOLT | 1033-1087 |
