| Item | Part No. | Part Name | Qty | Serial No. |

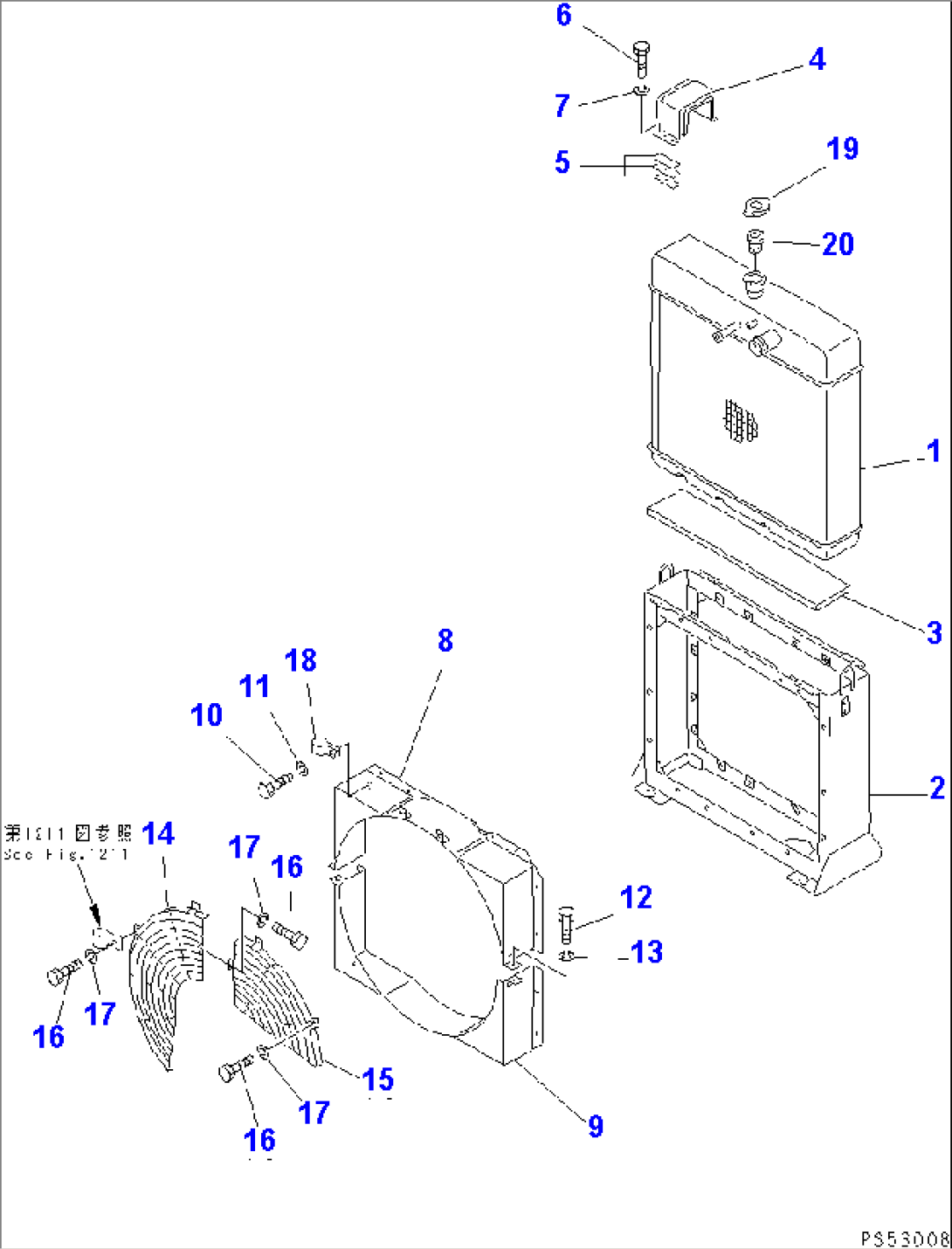

| 234-991-1312 | RADIATOR ASS'Y | 11001-12000 | ||
| 1 | 234-03-31700 | CORE ASS'Y | 11001-@ | |
| 2 | 234-03-31111 | FRAME | 11001-@ | |
| 3 | 234-03-11130 | SEAT,RUBBER | 11001-@ | |
| 4 | 424-03-11150 | CLAMP | 11001-@ | |
| 5 | 281-03-12560 | SHIM¤ 0.6MM | 11001-@ | |
| 6 | 01010-50820 | BOLT | 11001-@ | |
| 7 | 01602-20825 | WASHER,SPRING | 11001-@ | |
| 8 | 234-991-1350 | SHROUD | 11001-12000 | |
| 9 | 234-991-1320 | SHROUD | 11001-12000 | |
| 10 | 01010-51014 | BOLT | 11001-@ | |
| 11 | 01602-21030 | WASHER,SPRING | 11001-@ | |
| 12 | 01010-51016 | BOLT | 11001-@ | |
| 13 | 01602-21030 | WASHER,SPRING | 11001-@ | |
| 14 | 234-991-1340 | NET,WIRE | 11001-12000 | |
| 15 | 234-991-1330 | NET,WIRE | 11001-12000 | |
| 16 | 01010-51016 | BOLT | 11001-12000 | |
| 17 | 01602-21030 | WASHER,SPRING | 11001-12000 | |
| 18 | 232-03-11210 | CLIP | 11001-@ | |
| 19 | 23S-03-11150 | CAP ASS'Y,PRESSURE | 11001-@ | |
| 20 | 230-03-11470 | STRAINER | 11001-@ |
