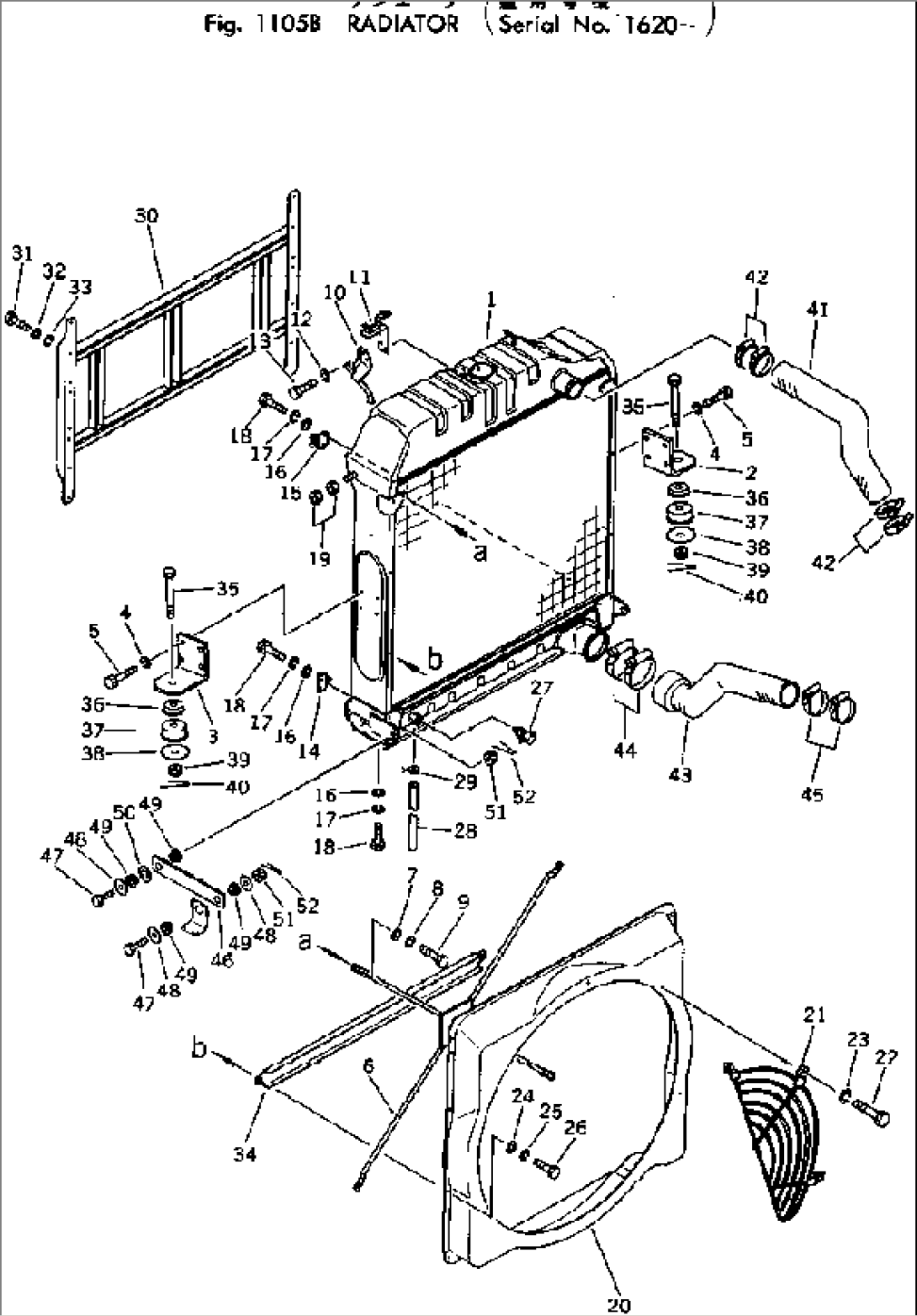

| Item | Part No. | Part Name | Qty | Serial No. |
| 565-03-12102 | RADIATOR ASS'Y | 1620- | ||
| 1 | 565-03-12111 | RADIATOR ASS'Y | 1620- | |
| 2 | 565-03-12411 | BRACKET,R.H. | 1620- | |
| 3 | 565-03-12421 | BRACKET,L.H. | 1620- | |
| 4 | 01602-01030 | WASHER | 1424- | |
| 5 | 01050-31025 | BOLT | 1424- | |
| 6 | 565-03-12430 | STAY | 1424- | |
| 7 | 01642-00810 | WASHER | 1424- | |
| 8 | 01602-00825 | WASHER | 1424- | |
| 9 | 01010-30820 | BOLT | 1424- | |
| 10 | 565-03-12461 | GUIDE | 1620- | |
| 11 | 565-03-12470 | HOLDER | 1424- | |
| 12 | 01602-00619 | WASHER | 1424- | |
| 13 | 01010-30616 | BOLT | 1424- | |
| 14 | 565-03-12440 | BRACKET,L.H. | 1424- | |
| 15 | 565-03-12450 | BRACKET,R.H. | 1424- | |
| 16 | 01642-00608 | WASHER | 1620- | |
| 17 | 01602-00619 | WASHER | 1620- | |
| 18 | 01010-30616 | BOLT | 1620- | |
| 19 | 01580-01210 | NUT | 1620- | |
| 20 | 565-03-12121 | SHROUD | 1424- | |
| 21 | 565-03-12140 | NET | 1424- | |
| 22 | 01010-31020 | BOLT | 1424- | |
| 23 | 01602-01030 | WASHER | 1424- | |
| 24 | 01643-00623 | WASHER | 1620- | |
| 25 | 01602-00619 | WASHER | 1424- | |
| 26 | 01010-30616 | BOLT | 1424- | |
| 27 | 565-03-12130 | VALVE | 1424- | |
| 28 | 07270-01240 | TUBE | 1424- | |
| 29 | 04059-01010 | WIRE | 1424- | |
| 30 | 565-03-12510 | STAY | 1620- | |
| 31 | 01010-30616 | BOLT | 1620- | |
| 32 | 01602-00619 | WASHER | 1620- | |
| 33 | 01643-00623 | WASHER | 1620- | |
| 34 | 565-03-12540 | STAY | 1620- | |
| 35 | 01012-31280 | BOLT | 1620- | |
| 36 | 565-03-12231 | CUSHION | 1620- | |
| 37 | 565-03-12241 | CUSHION | 1620- | |
| 38 | 566-03-11230 | SPACER | 1424- | |
| 39 | 01590-01215 | NUT | 1424- | |
| 40 | 04050-03022 | PIN | 1424- | |
| 41 | 565-03-12210 | HOSE | 1424- | |
| 42 | 07281-00709 | CLAMP | 1424- | |
| 43 | 565-03-12220 | HOSE | 1424- | |
| 44 | 07281-00909 | CLAMP | 1424- | |
| 45 | 07281-00709 | CLAMP | 1424- | |
| 46 | 565-03-12250 | PLATE | 1424- | |
| 47 | 01012-31235 | BOLT | 1424- | |
| 48 | 565-54-15180 | WASHER | 1424- | |
| 49 | 565-03-12261 | CUSHION | 1620- | |
| 50 | 01640-02232 | WASHER | 1424- | |
| 51 | 01590-01215 | NUT | 1424- | |
| 52 | 04050-03022 | PIN | 1424- |
