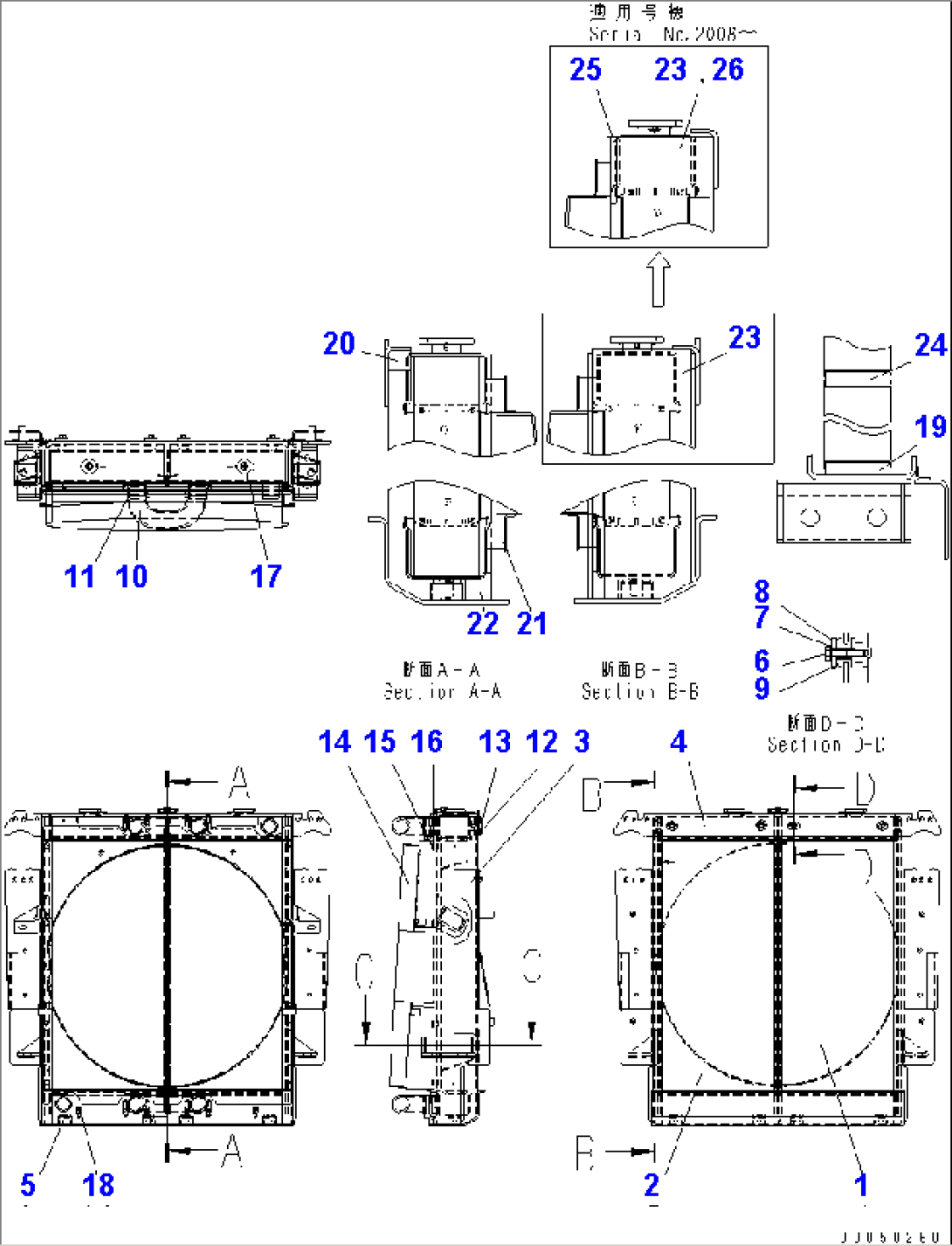

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-03-21103 | COOLER ASS'Y | 2405- | ||
| \0\56D-03-21102 | COOLER ASS'Y | 2001-2404 | ||
| 56D-03-21203 | RADIATOR ASS'Y | 2405- | ||
| \0\56D-03-21202 | RADIATOR ASS'Y | 2001-2404 | ||
| 1 | 56D-03-21211 | CORE | 2405- | |
| 1 | \0\56D-03-21210 | CORE | 2001-2404 | |
| 2 | 56D-03-21221 | CORE | 2405- | |
| 2 | \0\56D-03-21220 | CORE | 2001-2404 | |
| 3 | 56D-03-21231 | BRACKET | 2551- | |
| 3 | \0\56D-03-21230 | BRACKET | 2001-2550 | |
| 4 | 56D-03-21240 | BRACKET | 2001- | |
| 5 | 23C-03-51751 | CUSHION | 2001- | |
| 6 | 01010-81050 | BOLT | 2001- | |
| 7 | 01643-31032 | WASHER | 2001- | |
| 8 | 207-03-75590 | PLATE | 2405- | |
| 8 | 207-03-75590 | PLATE | 2001-2404 | |
| 9 | 195-03-41380 | CUSHION | 2001- | |
| 10 | 56D-03-21250 | HOSE | 2001- | |
| 11 | 07299-00070 | CLAMP | 2001- | |
| 12 | 01010-81025 | BOLT | 2001- | |
| 13 | 01643-31032 | WASHER | 2001- | |
| 14 | 56D-03-21260 | SHROUD | 2001- | |
| 15 | 01010-81025 | BOLT | 2001- | |
| 16 | 01643-31032 | WASHER | 2001- | |
| 17 | 104-03-41230 | CAP | 2001- | |
| 18 | 205-03-62660 | PLUG | 2001- | |
| 18 | 07000-11007 | O-RING | 2001- | |
| 19 | 56D-03-21270 | PACKING | 2001-2007 | |
| 20 | 56D-03-21280 | PACKING | 2001- | |
| 21 | 56D-03-21291 | PACKING | 2008- | |
| 21 | \0\56D-03-21290 | PACKING | 2001-2007 | |
| 22 | 56D-03-21310 | PACKING | 2001- | |
| 23 | 56D-03-21321 | PACKING | 2008- | |
| 23 | \0\56D-03-21320 | PACKING | 2001-2007 | |
| 24 | 56D-03-21330 | PACKING | 2001- | |
| 25 | 56D-03-21360 | PACKING | 2008- | |
| 26 | 56D-03-21370 | PACKING | 2008- |
