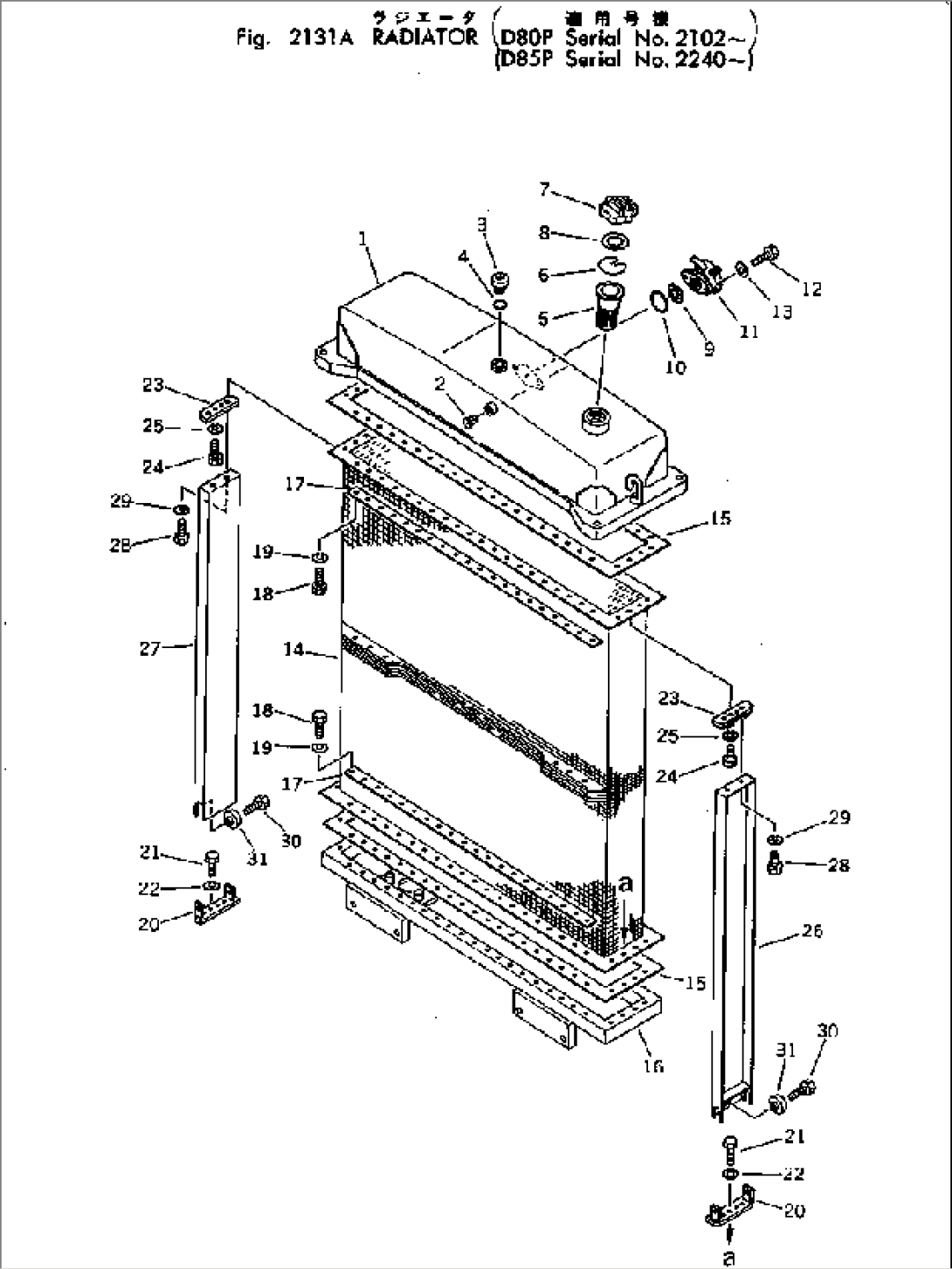

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-03-00080 | RADIATOR CORE ASS'Y | 2240- | ||
| 154-03-00090 | UPPER TANK ASS'Y | 2240- | ||
| 1 | 154-03-11117 | TANK,UPPER | 2240- | |
| 2 | 07049-01012 | PLUG | 2240- | |
| 3 | 07040-13618 | PLUG | 2240- | |
| 4 | 07002-43634 | O-RING | 2240- | |
| 5 | 07056-00048 | STRAINER | 2001- | |
| 6 | 07057-03271 | RING | 2001- | |
| 7 | 07053-10000 | CAP | 2001- | |
| 8 | 07053-00002 | GASKET | 2001- | |
| 9 | 175-03-32570 | SCREEN | 2001- | |
| 10 | 07000-43045 | O-RING | 2240- | |
| 11 | 154-03-11682 | VALVE | 2001- | |
| 12 | 01010-51025 | BOLT | 2001- | |
| 13 | 01602-21030 | WASHER,SPRING | 2001- | |
| 14 | 154-03-21132 | CORE | 2240- | |
| 15 | 154-03-11143 | GASKET | 2001- | |
| 16 | 154-03-21123 | TANK,LOWER | 2240- | |
| 17 | 154-03-11151 | PLATE | 2001- | |
| 18 | 01010-51030 | BOLT | 2240- | |
| 19 | 01602-21030 | WASHER,SPRING | 2001- | |
| 20 | 154-03-13150 | PLATE | 2240- | |
| 21 | 01010-51235 | BOLT | 2240- | |
| 22 | 01602-21236 | WASHER | 2240- | |
| 23 | 154-03-13140 | PLATE | 2240- | |
| 24 | 01010-51235 | BOLT | 2240- | |
| 25 | 01602-21236 | WASHER,SPRING | 2240- | |
| 26 | 154-03-12823 | PLATE | 2240- | |
| 27 | 154-03-12842 | PLATE | 2240- | |
| 28 | 01010-51250 | BOLT | 2240- | |
| 29 | 01602-21236 | WASHER,SPRING | 2240- | |
| 30 | 01010-51030 | BOLT | 2240- | |
| 31 | 195-03-22160 | SEAT | 2240- |
