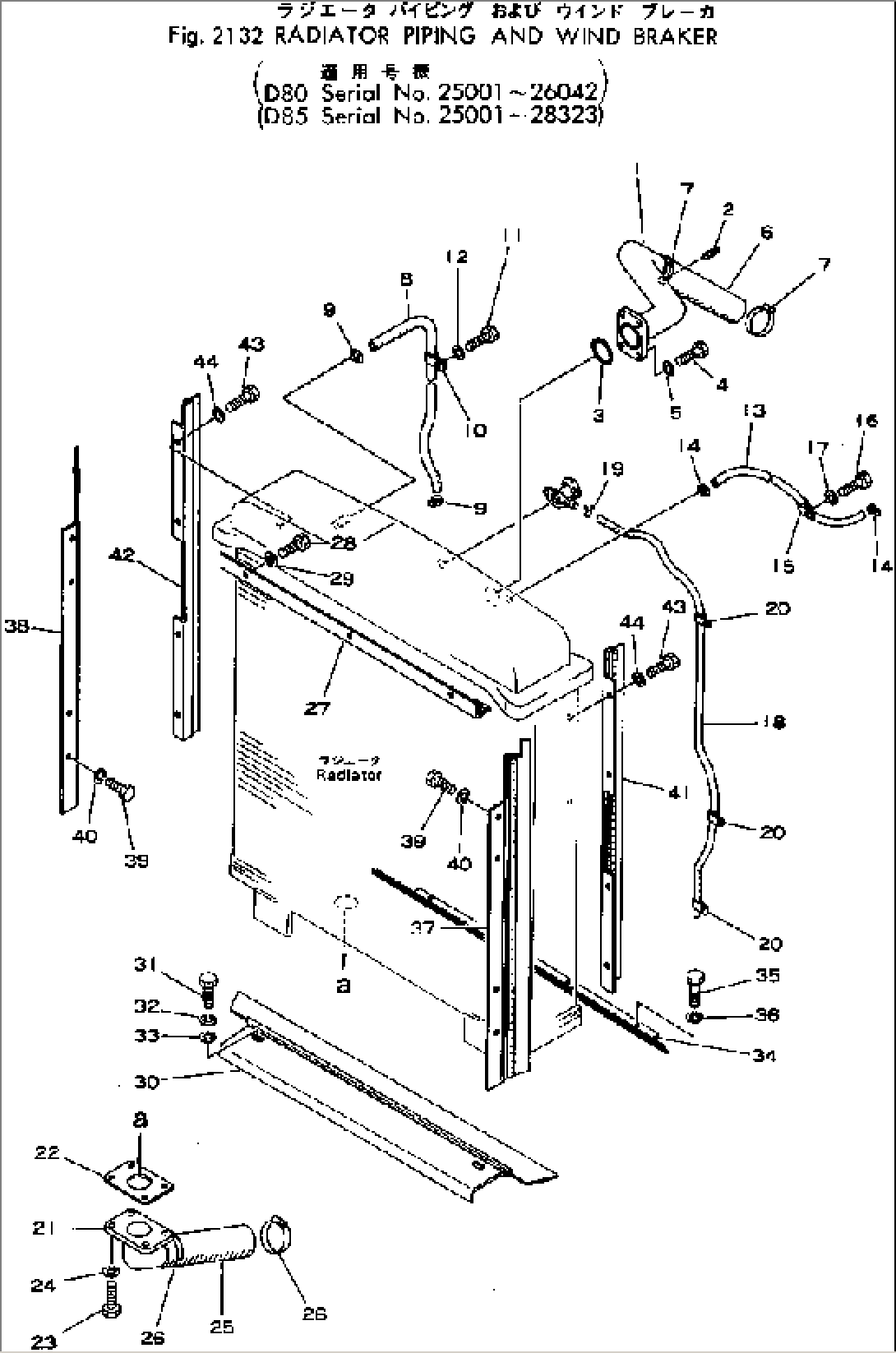

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-03-00106 | RADIATOR CORE ASS'Y | 26001-28323 | ||
| \3\154-03-00105 | RADIATOR CORE ASS'Y | 25001-26000 | ||
| (154-03-00106,154-03-11535) | ||||
| 154-03-00127 | UPPER TANK ASS'Y | 26001-28323 | ||
| \3\154-03-00126 | UPPER TANK ASS'Y | 25001-26000 | ||
| (154-03-00127,154-03-11535) | ||||
| 1 | 154-03-11116 | TANK,UPPER | 26001-28323 | |
| 1 | \3\154-03-11115 | TANK,UPPER | 25001-26000 | |
| (154-03-11116,154-03-11535) | ||||
| 2 | 07056-00048 | STRAINER | 25001-@ | |
| 3 | 07057-03271 | RING | 25001-@ | |
| 4 | 07053-10000 | CAP | 25001-@ | |
| 5 | 07053-00002 | GASKET | 25001-@ | |
| 6 | 154-03-11682 | VALVE | 25001-@ | |
| 7 | 175-03-32570 | SCREEN | 25001-@ | |
| 8 | 07000-03045 | O-RING | 25001-28323 | |
| 9 | 01010-31025 | BOLT | 25001-@ | |
| 10 | 01602-01030 | WASHER,SPRING | 25001-@ | |
| 11 | 154-03-11251 | NIPPLE | 25001-26000 | |
| 12 | 07000-03022 | O-RING | 25001-26000 | |
| 13 | 154-03-21131 | CORE | 25001-28323 | |
| 14 | 154-03-11143 | GASKET | 25001-@ | |
| 15 | 154-03-21122 | TANK,LOWER | 25001-28323 | |
| 16 | 154-03-11151 | PLATE | 25001-@ | |
| 17 | 01010-31025 | BOLT | 25001-28323 | |
| 18 | 01602-01030 | WASHER,SPRING | 25001-@ | |
| 19 | 154-03-11164 | SHIELD | 25001-28323 | |
| 20 | 154-03-11213 | SHIM, 0.6MM | 25001-28323 | |
| 21 | 01010-31240 | BOLT | 25001-28323 | |
| 22 | 01602-01236 | WASHER | 25001-28323 | |
| 23 | 175-03-31490 | SHIM, 0.6MM | 25001-28323 | |
| 24 | 01010-31025 | BOLT | 25001-28323 | |
| 25 | 01602-01030 | WASHER | 25001-28323 | |
| 26 | 154-03-11611 | SHIM, 0.6MM | 25001-@ | |
| 27 | 01010-31675 | BOLT | 25001-28323 | |
| 28 | 01602-01648 | WASHER | 25001-28323 | |
| 29 | 154-03-11961 | BRACKET,L.H. | 25054-28323 | |
| 29 | \0\154-03-11960 | BRACKET,L.H. | 25001-25053 | |
| 30 | 154-03-11971 | BRACKET,R.H. | 25054-28323 | |
| 30 | \0\154-03-11970 | BRACKET,R.H. | 25001-25053 | |
| 31 | 01010-31235 | BOLT | 25001-28323 | |
| 32 | 01602-01236 | WASHER | 25001-28323 | |
| 33 | 01643-31232 | WASHER | 25001-28323 | |
| 34 | 170-03-13120 | CUSHION | 25001-28323 | |
| 35 | 170-03-13130 | SPACER | 25001-28323 | |
| 36 | 01010-31265 | BOLT | 25001-28323 | |
| 37 | 01602-01236 | WASHER | 25001-28323 |
