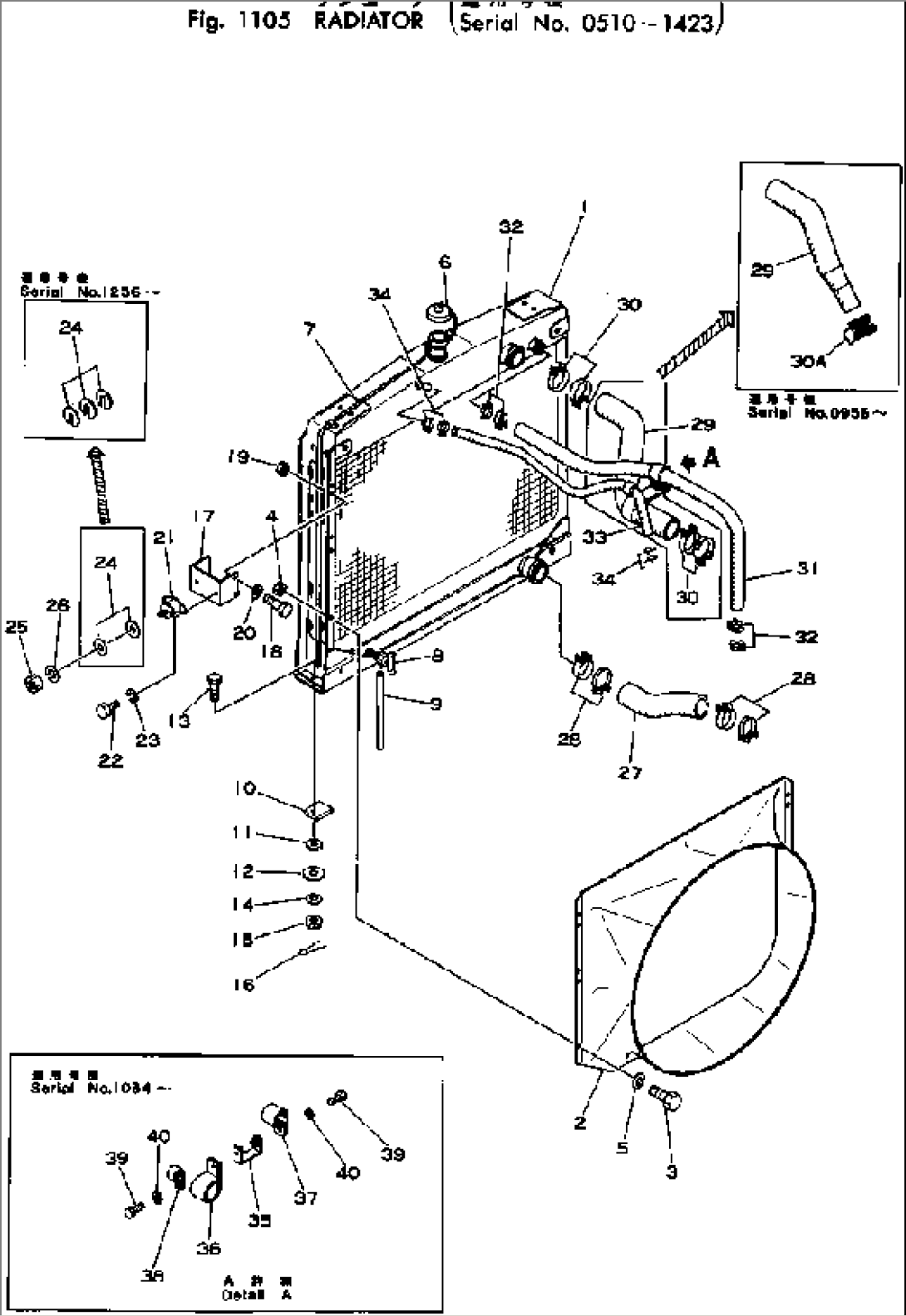

| Item | Part No. | Part Name | Qty | Serial No. |
| 565-03-11014 | RADIATOR ASS'Y | 1231-1423 | ||
| 565-03-11013 | RADIATOR ASS'Y | 1220-1230 | ||
| 565-03-11014 | RADIATOR ASS'Y | 1193-1219 | ||
| 565-03-11013 | RADIATOR ASS'Y | 1184-1192 | ||
| 565-03-11014 | RADIATOR ASS'Y | 1169-1183 | ||
| 565-03-11013 | RADIATOR ASS'Y | 510-1168 | ||
| (\2\565-03-11012) | RADIATOR ASS'Y | (510-869) | ||
| 1 | 565-03-11113 | RADIATOR | 510-1423 | |
| 1 | (\2\565-03-11112) | RADIATOR | (510-869) | |
| 2 | 565-03-11122 | SHROUD | 1231-1423 | |
| 2 | 565-03-11121 | SHROUD | 1220-1230 | |
| 2 | 565-03-11122 | SHROUD | 1193-1219 | |
| 2 | 565-03-11121 | SHROUD | 1184-1192 | |
| 2 | 565-03-11122 | SHROUD | 1169-1183 | |
| 2 | 565-03-11121 | SHROUD | 510-1168 | |
| 3 | 01010-50614 | BOLT | 510-1423 | |
| 4 | 01580-10605 | NUT | 510-1423 | |
| 5 | 01602-20619 | WASHER | 510-1423 | |
| 6 | 565-03-11161 | CAP | 1424-@ | |
| 6 | \0\364-03-11160 | CAP | 510-1423 | |
| 7 | 565-03-11130 | PIPE | 510-1423 | |
| 8 | 565-03-11150 | VALVE | 510-1423 | |
| 9 | 565-03-11650 | PIPE | 510-1423 | |
| 10 | 565-03-11220 | CUSHION | 510-1423 | |
| 11 | 560-03-11210 | CUSHION | .-1423 | |
| 11 | \0\364-03-11310 | RUBBER | 510-. | |
| 12 | 560-03-11230 | WASHER | 510-1423 | |
| 13 | 01052-51485 | BOLT | 742-1423 | |
| 13 | 01052-51475 | BOLT | 726-741 | |
| 13 | 01052-51490 | BOLT | 510-725 | |
| 14 | 01640-21426 | WASHER | 510-1423 | |
| 15 | 01593-11411 | NUT | 510-1423 | |
| 16 | 04050-13028 | PIN | 510-1423 | |
| 17 | 565-03-11260 | BRACKET | 1256-1423 | |
| 17 | 565-03-11261 | BRACKET | 510-1255 | |
| 18 | 01010-50820 | BOLT | 510-1423 | |
| 19 | 01580-10806 | NUT | 510-1423 | |
| 20 | 01602-20825 | WASHER | 510-1423 | |
| 21 | 565-03-11270 | CUSHION | 510-1423 | |
| 22 | 01010-50820 | BOLT | 510-1423 | |
| 23 | 01602-20825 | WASHER | 510-1423 | |
| 24 | 565-03-11720 | SHIM, 0.5MM | 1256-1423 | |
| 24 | 565-03-11290 | SHIM, 0.5MM | 510-1255 | |
| 24 | 565-03-11730 | SHIM, 1.0MM | 1256-1423 | |
| 24 | 565-03-11740 | SHIM, 1.2MM | 1256-1423 | |
| 24 | 565-03-11280 | SHIM, 1.0MM | 510-1255 | |
| 25 | 01580-11008 | NUT | 510-1423 | |
| 26 | 01602-21030 | WASHER | 510-1423 | |
| 27 | 565-03-11621 | HOSE,OUTLET | 510-1423 | |
| 28 | 07281-00709 | CLAMP | 935-1423 | |
| 28 | 07281-00709 | CLAMP | .-934 | |
| 28 | \0\07280-06929 | CLAMP | 510-. | |
| 29 | 565-03-11612 | HOSE,INLET | 956-1423 | |
| 29 | 565-03-11611 | HOSE,INLET | 510-955 | |
| 30 | 07281-00709 | CLAMP | 956-1423 | |
| 30 | 07281-00709 | CLAMP | 935-955 | |
| 30 | 07281-00709 | CLAMP | .-934 | |
| 30 | \0\07280-06929 | CLAMP | 510-. | |
| 30A | 07281-00609 | CLAMP | 956-1423 | |
| 31 | 576-03-11720 | HOSE | 510-1423 | |
| 32 | 07281-00419 | CLAMP | 935-1423 | |
| 32 | 07281-00419 | CLAMP | .-934 | |
| 32 | \0\07280-03826 | CLAMP | 510-. | |
| 33 | 07260-00975 | HOSE | 510-1423 | |
| 34 | 07281-00197 | CLAMP | .-1423 | |
| 34 | \0\07280-02023 | CLAMP | 510-. | |
| 35 | 565-03-11711 | BRACKET | 1148-1423 | |
| 35 | 565-03-11710 | BRACKET | 1034-1147 | |
| 36 | 568-03-12240 | CLIP | 1034-1423 | |
| 37 | 575-03-17250 | CLIP | 1034-1423 | |
| 38 | 08036-01814 | CLIP | 1034-1423 | |
| 39 | 01010-31020 | BOLT | 1034-1423 | |
| 40 | 01602-01030 | WASHER | 1034-1423 |
