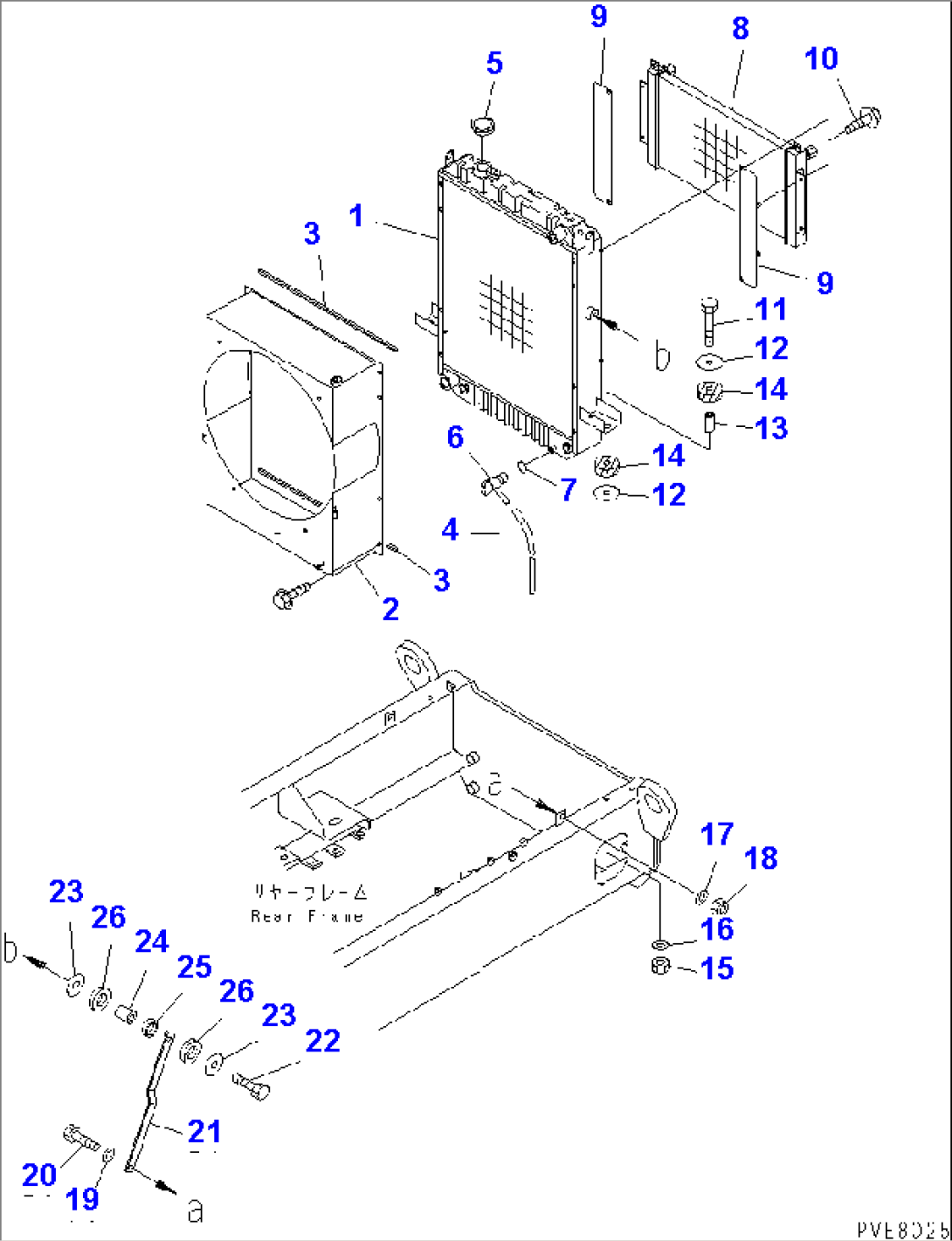

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-03-21052 | RADIATOR ASS'Y | 54516-@ | ||
| 417-03-21051 | RADIATOR ASS'Y | 53001-54515 | ||
| 417-03-21282 | RADIATOR ASS'Y | 54516-@ | ||
| 417-03-21281 | RADIATOR | 53001-54515 | ||
| 1 | 417-03-21191 | RADIATOR CORE ASS'Y | 54516-@ | |
| 1 | 417-03-21190 | RADIATOR CORE ASS'Y | 53001-54515 | |
| 2 | 417-03-21262 | SHROUD | 53001-@ | |
| 3 | 416-03-11131 | PACKING | 53001-@ | |
| 4 | 416-03-11151 | HOSE | 53001-@ | |
| 5 | 416-03-11170 | CAP | 53001-@ | |
| 6 | 415-03-11150 | COCK | 53001-@ | |
| 7 | 415-03-11160 | O-RING | 53001-@ | |
| 8 | 418-62-25120 | OIL COOLER ASS'Y | 53001-@ | |
| 9 | 417-62-25160 | BRACKET | 53001-@ | |
| 10 | 01435-20816 | BOLT | 53001-@ | |
| 11 | 01010-81265 | BOLT | 53001-54571 | |
| 12 | 416-03-11210 | WASHER | 53001-54571 | |
| 13 | 415-03-11210 | SPACER | 53001-54571 | |
| 14 | 416-03-11221 | CUSHION | 53001-54571 | |
| 15 | 01580-01210 | NUT | 53001-54571 | |
| 16 | 01643-31232 | WASHER | 53001-54571 | |
| 17 | 01643-31232 | WASHER | 53001-54571 | |
| 18 | 01580-01210 | NUT | 53001-54571 | |
| 19 | 01643-31232 | WASHER | 53001-54571 | |
| 20 | 416-03-11281 | BOLT | 54516-54571 | |
| 20 | 416-03-11282 | BOLT | 53001-54515 | |
| 21 | 417-03-21161 | PLATE | 54516-@ | |
| 21 | \0\417-03-21160 | PLATE | 53001-54515 | |
| 22 | 01010-81245 | BOLT | 53001-@ | |
| 23 | 419-43-17920 | WASHER | 53001-@ | |
| 24 | 416-03-11270 | SPACER | 53001-@ | |
| 25 | 416-03-11250 | CUSHION | 53001-@ | |
| 26 | 416-03-11260 | CUSHION | 53001-@ |
