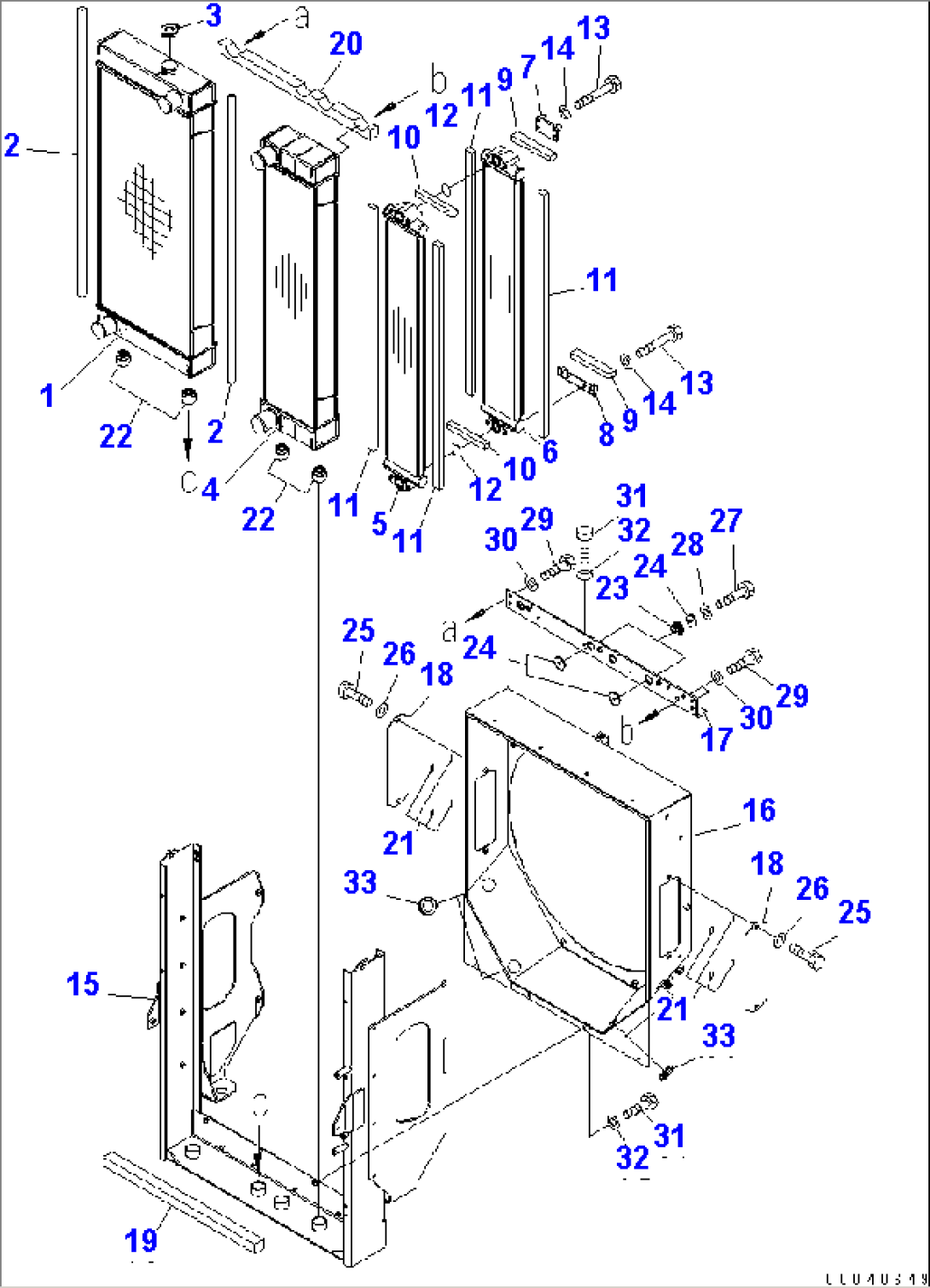

| Item | Part No. | Part Name | Qty | Serial No. |
| 423-03-41102 | COOLING ASS'Y | 65799-65932 | ||
| 423-03-41101 | COOLING ASS'Y | 65001-65798 | ||
| 1 | 423-03-41110 | RADIATOR ASS'Y | 65001-@ | |
| 2 | 423-03-41220 | SEAL (BONDED) | 65001-@ | |
| 3 | 416-03-11170 | CAP | 65001-@ | |
| 4 | 423-03-41120 | AFTER COOLER A. | 65001-@ | |
| 423-03-41131 | OIL COOLER ASS'Y | 65001-@ | ||
| 5 | 423-03-41230 | OIL COOLER | 65001-@ | |
| 6 | 423-03-41240 | OIL COOLER | 65001-@ | |
| 7 | 423-03-41250 | PLATE | 65001-@ | |
| 8 | 423-03-41261 | PLATE | 65001-@ | |
| 9 | 423-03-41270 | SEAL (BONDED) | 65001-@ | |
| 10 | 423-03-41280 | SEAL (BONDED) | 65001-@ | |
| 11 | 423-03-41290 | SEAL (BONDED) | 65001-@ | |
| 12 | 07000-13035 | O-RING | 65001-@ | |
| 13 | 01010-81080 | BOLT | 65001-@ | |
| 14 | 01643-31032 | WASHER | 65001-@ | |
| 15 | 423-03-41142 | FRAME | 65799-65932 | |
| 15 | 423-03-41141 | FRAME | 65001-65798 | |
| 16 | 423-03-41151 | SHROUD | 65799-65932 | |
| 16 | 423-03-41150 | SHROUD | 65001-65798 | |
| 17 | 423-03-41160 | PLATE | 65001-65932 | |
| 18 | 423-03-41170 | PLATE | 65001-@ | |
| 19 | 423-03-41180 | SEAL (BONDED) | 65001-@ | |
| 20 | 423-03-41190 | SEAL (BONDED) | 65001-65932 | |
| 21 | 421-09-21420 | SHEET (BONDED) | 65001-@ | |
| 22 | 23C-03-51751 | CUSHION | 65001-65932 | |
| 23 | 195-03-41380 | CUSHION | 65001-65932 | |
| 24 | 207-03-75590 | PLATE | 65001-65932 | |
| 25 | 01010-D1020 | BOLT | 65001-65932 | |
| 26 | 01643-71032 | WASHER | 65001-65932 | |
| 27 | 01010-81050 | BOLT | 65001-@ | |
| 28 | 01643-31032 | WASHER | 65001-@ | |
| 29 | 01010-81025 | BOLT | 65001-65932 | |
| 30 | 01643-31032 | WASHER | 65001-65932 | |
| 31 | 01010-80820 | BOLT | 65001-@ | |
| 32 | 01643-30823 | WASHER | 65001-@ | |
| 33 | 09415-03614 | CAP | 65001-@ |
