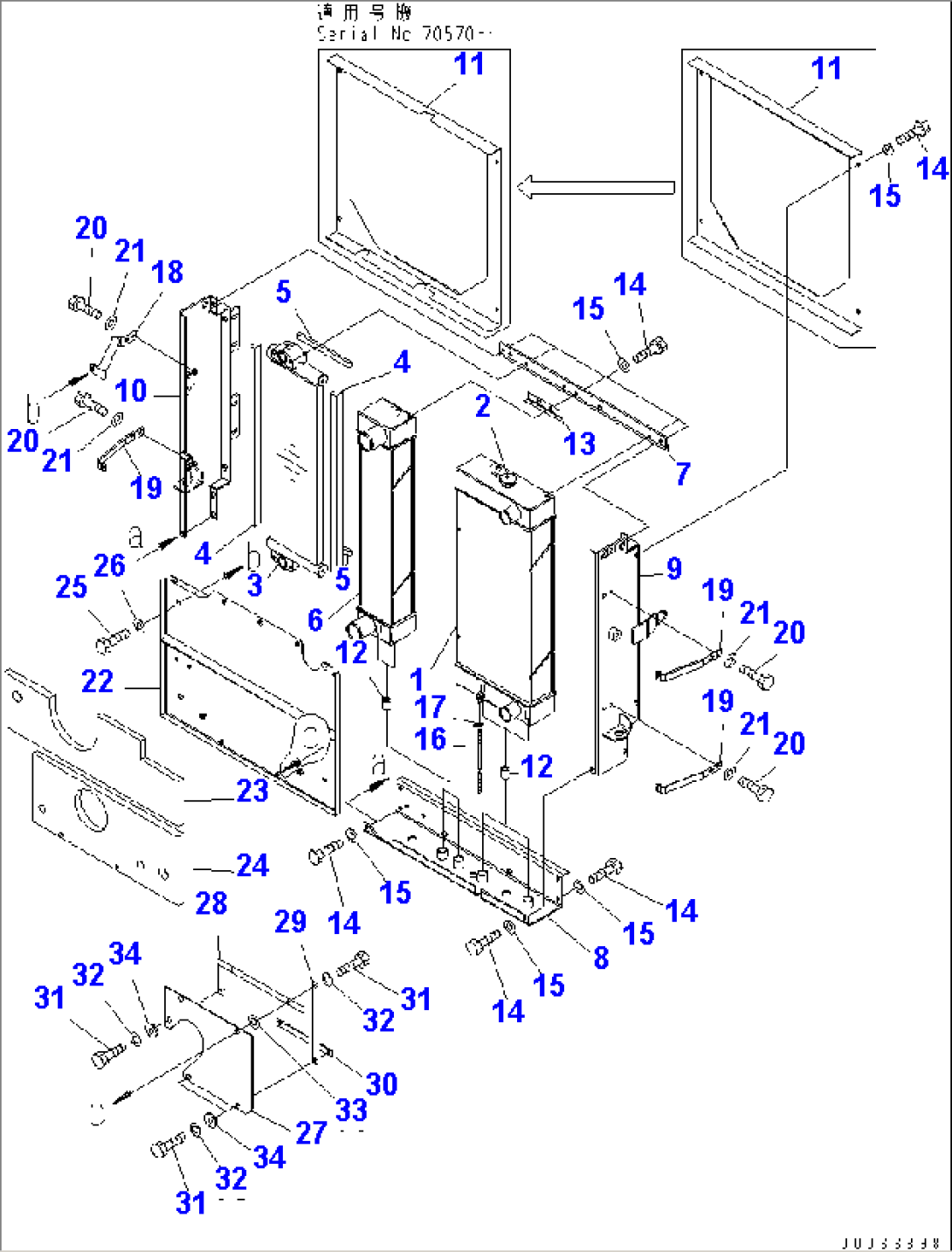

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-31106 | RADIATOR ASS'Y | 70570- | ||
| \0\418-03-31105 | RADIATOR ASS'Y | 70445-70569 | ||
| 1 | 418-03-31113 | RADIATOR | 70001- | |
| 2 | 416-S14-2270 | CAP | 70445- | |
| 3 | 418-03-31122 | OIL COOLER | 70001- | |
| 4 | TR1192-8673411 | PACKING | 70001- | |
| 5 | TR1192-8673420 | PACKING | 70001- | |
| 6 | 418-03-31132 | AFTERCOOLER | 70001- | |
| 7 | 418-03-31413 | PLATE | 70570- | |
| 7 | 418-03-31412 | PLATE | 70001-70569 | |
| 8 | 418-03-31425 | FRAME | 70570- | |
| 8 | 418-03-31424 | FRAME | 70445-70569 | |
| 9 | 418-03-31434 | FRAME | 70445- | |
| 10 | 418-03-31443 | FRAME | 70570- | |
| 10 | 418-03-31442 | FRAME | 70001-70569 | |
| 11 | 418-03-31453 | SHROUD | 70570- | |
| 11 | 418-03-31452 | SHROUD | 70001-70569 | |
| 12 | 418-03-31480 | CUSHION | 70001- | |
| 13 | 418-03-31491 | PLATE | 70001- | |
| 14 | 01010-81020 | BOLT | 70001- | |
| 15 | 01643-31032 | WASHER | 70001- | |
| 16 | 418-03-31570 | HOSE | 70001- | |
| 17 | 20Y-03-11330 | CLIP | 70001- | |
| 18 | 418-03-31174 | GRIP | 70001- | |
| 19 | 418-03-31232 | BRACKET | 70001- | |
| 20 | 01010-81020 | BOLT | 70445- | |
| 21 | 01643-31032 | WASHER | 70445- | |
| 22 | 418-03-31166 | BAFFLE | 70001- | |
| 23 | 418-03-31373 | SHEET | 70001- | |
| 24 | 418-03-31381 | SHEET | 70001- | |
| 25 | 01010-81020 | BOLT | 70445- | |
| 26 | 01643-31032 | WASHER | 70445- | |
| 27 | 418-03-31622 | SHEET | 70056- | |
| 28 | 418-03-31631 | BRACKET | 70056- | |
| 29 | 418-03-31641 | PLATE | 70056- | |
| 30 | 418-03-31651 | PLATE | 70056- | |
| 31 | 01010-80825 | BOLT | 70001- | |
| 32 | 01643-30823 | WASHER | 70001- | |
| 33 | 203-54-56970 | WASHER | 70001- | |
| 34 | 417-03-31120 | COLLAR | 70056- |
