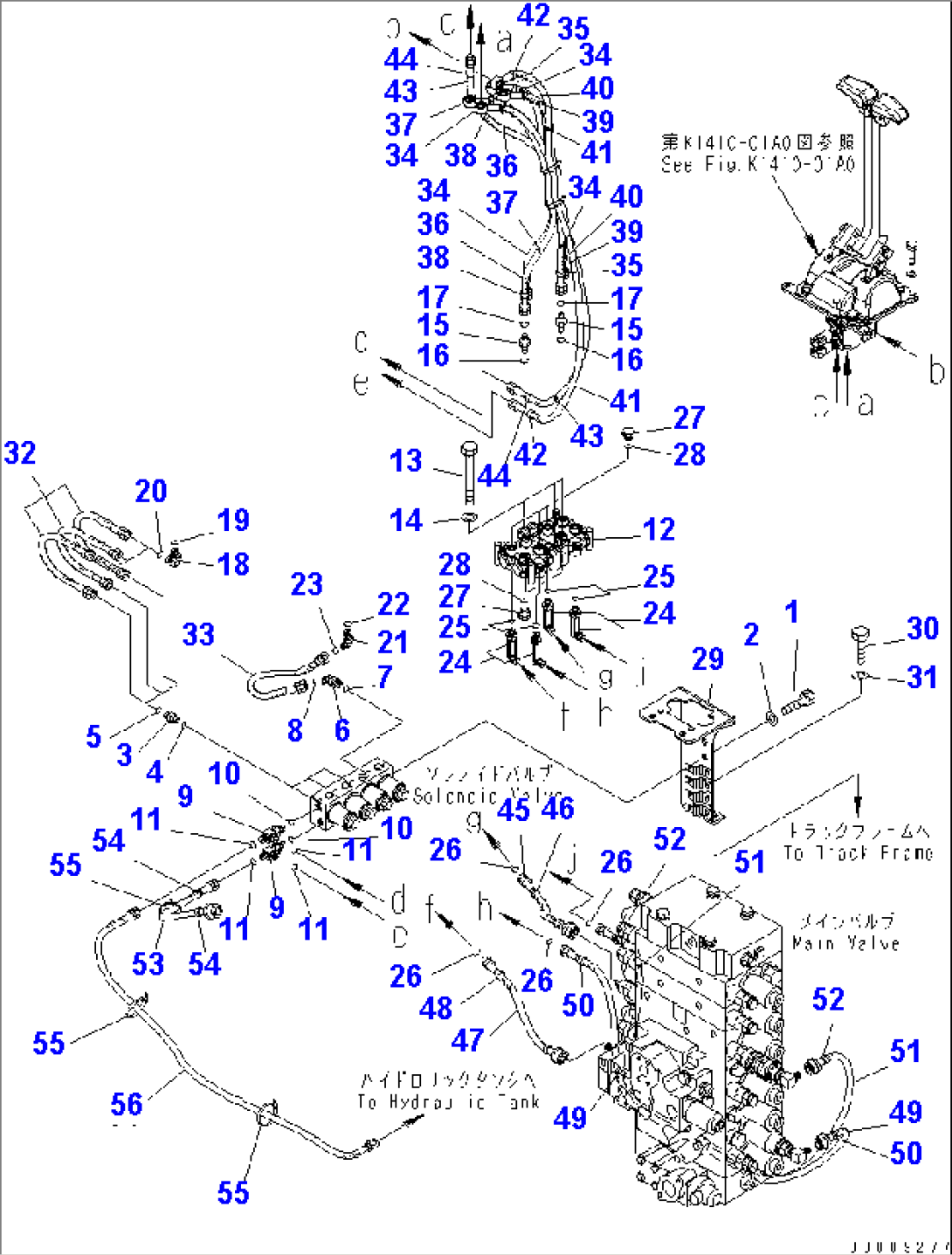

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81230 | BOLT | 1001- | |
| 2 | 01643-31232 | WASHER | 1001- | |
| 3 | 02781-0021D | UNION | 1001- | |
| 4 | 07002-11423 | O-RING | 1001- | |
| 5 | 02896-11008 | O-RING | 1001- | |
| 6 | 02783-10210 | ELBOW | 1001- | |
| 7 | 07002-11423 | O-RING | 1001- | |
| 8 | 02896-11008 | O-RING | 1001- | |
| 9 | 11Y-62-12330 | ELBOW | 1001- | |
| 10 | 07002-11423 | O-RING | 1001- | |
| 11 | 02896-11008 | O-RING | 1001- | |
| 12 | (702-19-23000) | VALVE ASS'Y | 1001- | |
| 13 | 01010-81070 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 02781-0021D | UNION | 1001- | |
| 16 | 07002-11423 | O-RING | 1001- | |
| 17 | 02896-11008 | O-RING | 1001- | |
| 18 | 02782-10210 | ELBOW | 1001- | |
| 19 | 07002-11423 | O-RING | 1001- | |
| 20 | 02896-11008 | O-RING | 1001- | |
| 21 | 02783-10210 | ELBOW | 1001- | |
| 22 | 07002-11423 | O-RING | 1001- | |
| 23 | 02896-11008 | O-RING | 1001- | |
| 24 | 02782-10212 | ELBOW | 1001- | |
| 25 | 07002-11423 | O-RING | 1001- | |
| 26 | 02896-11008 | O-RING | 1001- | |
| 27 | 07040-11409 | PLUG | 1001- | |
| 28 | 07002-11423 | O-RING | 1001- | |
| 29 | 8240-62-1321 | BRACKET | 1001- | |
| 30 | 01010-81230 | BOLT | 1029- | |
| 30 | 01010-81225 | BOLT | 1001-1028 | |
| 31 | 01643-31232 | WASHER | 1001- | |
| 32 | 02760-002A3 | HOSE | 1001- | |
| 33 | 8240-62-1930 | HOSE | 1029- | |
| 33 | \0\02760-002A3 | HOSE | 1001-1028 | |
| 34 | 8240-62-1340 | HOSE | 1001- | |
| 35 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 36 | 20Y-62-22820 | BAND, BLUE | 1001- | |
| 37 | 8240-62-1350 | HOSE | 1001- | |
| 38 | 20Y-62-22860 | BAND, BROWN | 1001- | |
| 39 | 8240-62-1360 | HOSE | 1001- | |
| 40 | 20Y-62-22850 | BAND, GREEN | 1001- | |
| 41 | 8240-62-1680 | HOSE | 1001- | |
| 42 | 20Y-62-22830 | BAND, WHITE | 1001- | |
| 43 | 02760-00210 | HOSE, 1000MM | 1001- | |
| 44 | 20Y-62-22840 | BAND, BLACK | 1001- | |
| 45 | 8240-62-1370 | HOSE | 1001- | |
| 46 | 20Y-62-22850 | BAND, GREEN | 1001- | |
| 47 | 207-62-72540 | HOSE, 420MM | 1001- | |
| 48 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 49 | 207-62-72560 | HOSE, 1300MM | 1001- | |
| 50 | 20Y-62-22860 | BAND, BROWN | 1001- | |
| 51 | 20Y-62-43980 | HOSE, 1450MM | 1001- | |
| 52 | 20Y-62-22820 | BAND, BLUE | 1001- | |
| 53 | 8255-62-4650 | HOSE | 1001- | |
| 54 | 20Y-62-22830 | BAND, WHITE | 1001- | |
| 55 | 08034-20519 | BAND | 1001- | |
| 56 | 02760-00212 | HOSE, 1200MM | 1001- |
