| Item | Part No. | Part Name | Qty | Serial No. |
| (20K-22-32001) | AXLE ASS'Y,REAR | K40001- | ||

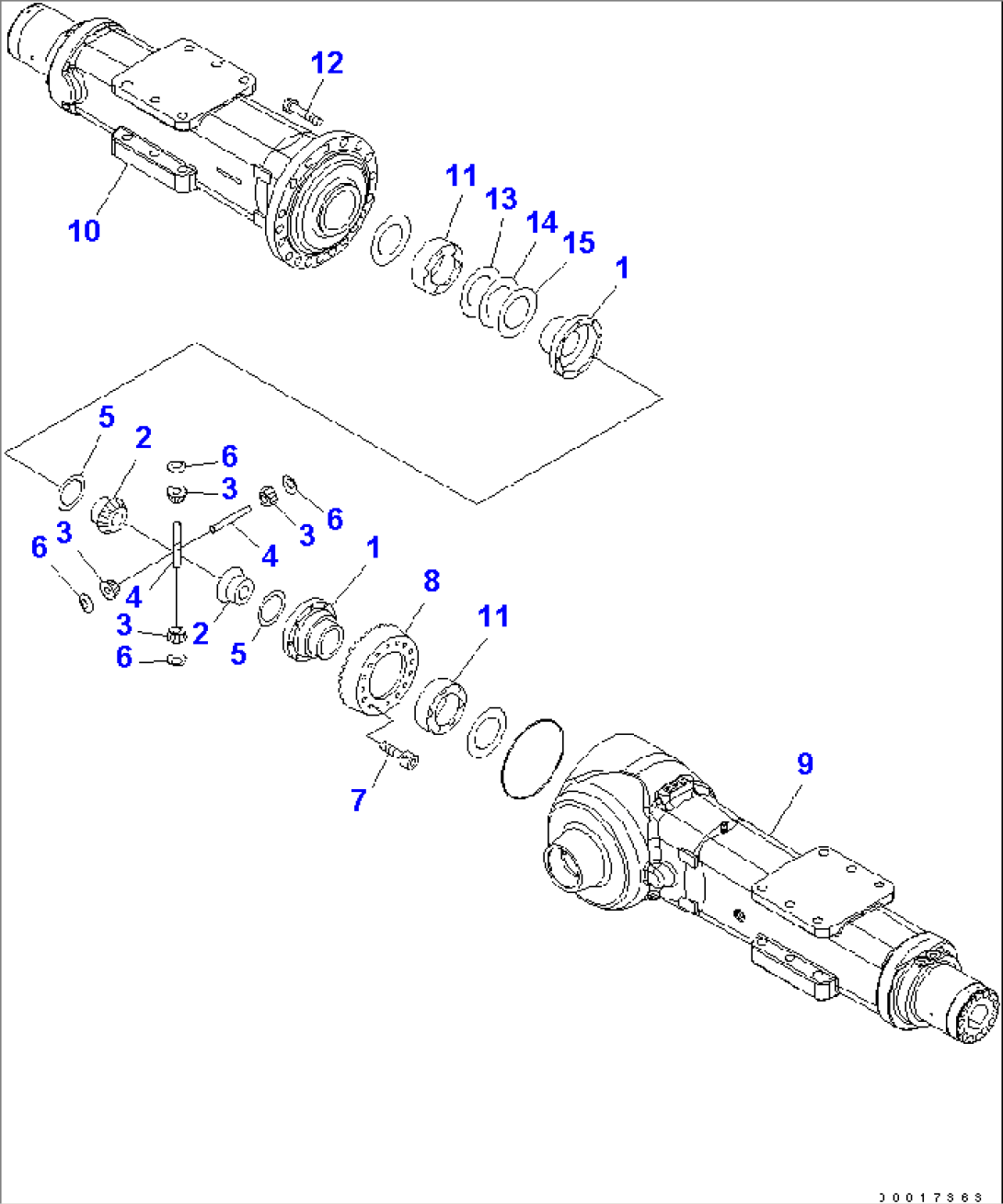

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S1150-61A1 TO S1150-64A1. | ||||
| 20K-22-31450 | BEVEL GEAR ASS'Y | K40001- | ||
| 1 | 20K-22-31460 | CASING | K40001- | |
| 2 | 20K-22-31470 | GEAR,BEVEL | K40001- | |
| 3 | 20K-22-31480 | GEAR,BEVEL | K40001- | |
| 4 | 20K-22-31490 | PIN | K40001- | |
| 5 | 20K-22-31510 | SPACER | K40001- | |
| 6 | 20K-22-31520 | WASHER | K40001- | |
| 7 | 20K-22-31530 | SCREW | K40001- | |
| 8 | 20K-22-31540 | GEAR ASS'Y | K40001- | |
| 9 | 20K-22-31550 | BODY,LONG | K40001- | |
| 10 | 20K-22-31560 | BODY,SHORT | K40001- | |
| 11 | 20K-22-31570 | BEARING,ROLLER | K40001- | |
| 12 | 20K-22-31580 | SCREW | K40001- | |
| 13 | 20K-22-31590 | SHIM | K40001- | |
| 14 | 20K-22-31610 | SHIM | K40001- | |
| 15 | 20K-22-31620 | SHIM | K40001- |
