| Item | Part No. | Part Name | Qty | Serial No. |
| (20K-22-31001) | AXLE ASS'Y,REAR | 20001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S1150-61A0 TO S1150-64A0. | ||||

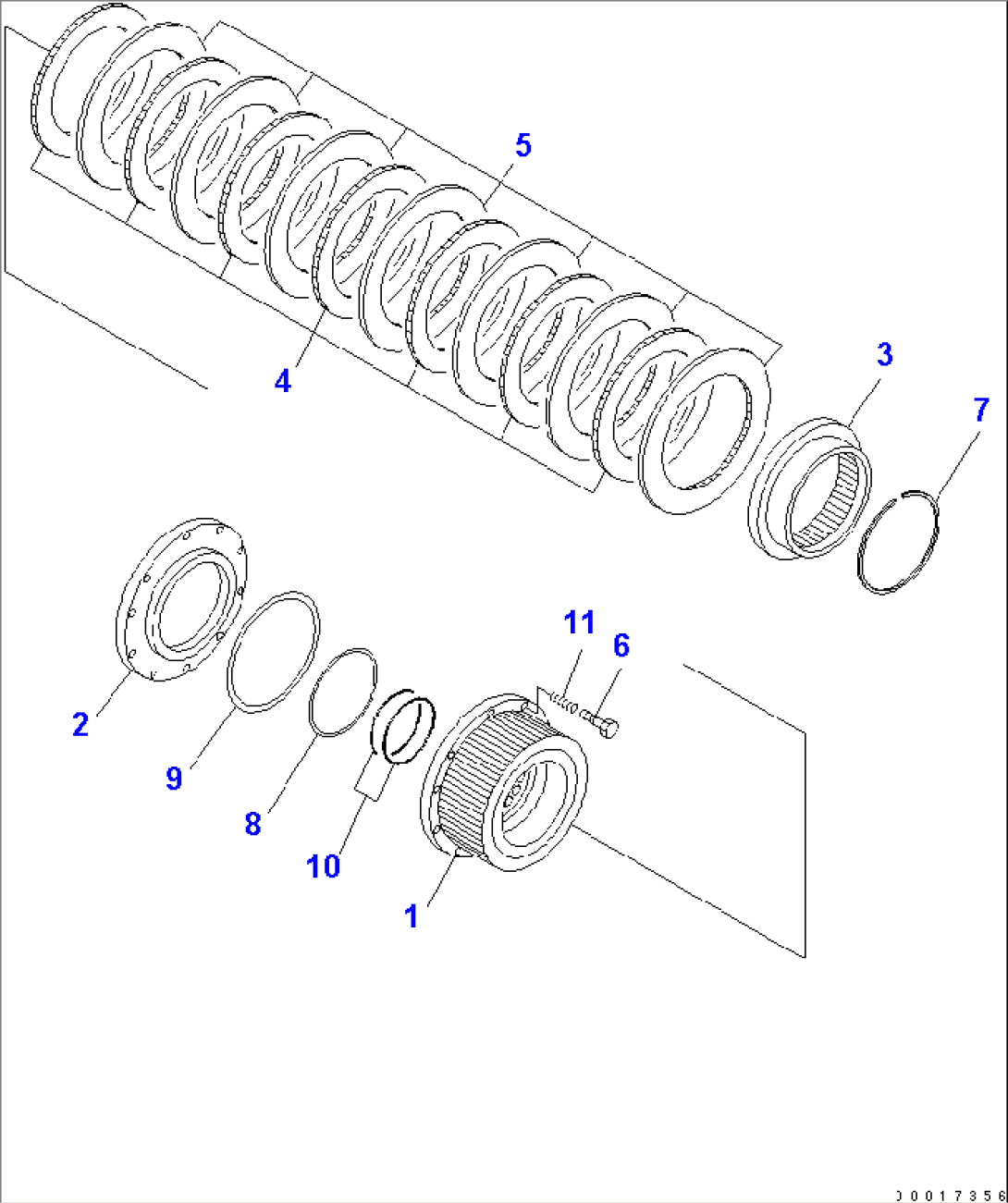

| 20K-22-31290 | BRAKE ASS'Y | 20001- | ||
| 1 | 20K-23-31860 | PISTON | 20001- | |
| 2 | 20K-23-31870 | BODY,INNER | 20001- | |
| 3 | 20K-23-31880 | WASHER,THRUST | 20001- | |
| 4 | 20K-23-31890 | DISC,OUTER | 20001- | |
| 5 | 20K-23-31910 | DISC,INNER | 20001- | |
| 6 | 20K-23-31920 | SCREW | 20001- | |
| 7 | 20K-23-31930 | CIRCLIP | 20001- | |
| 8 | 20K-23-31940 | GASKET,PISTON | 20001- | |
| 9 | 20K-23-31950 | GASKET,PISTON | 20001- | |
| 10 | 20K-23-31960 | O-RING | 20001- | |
| 11 | 20K-23-31970 | SPRING | 20001- |
