| Item | Part No. | Part Name | Qty | Serial No. |

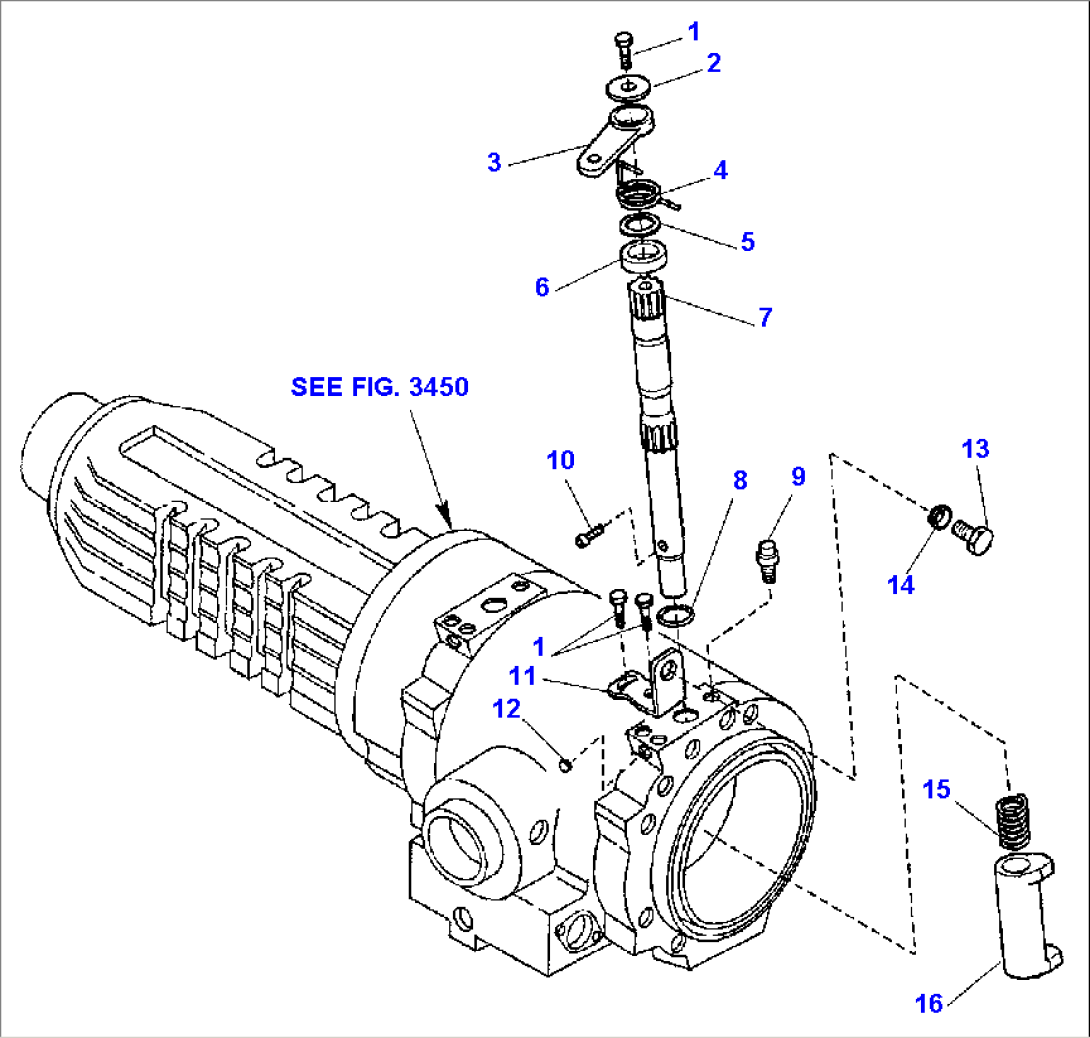

| \0 | (200040610) | REAR AXLE, ASSY | 97F20172- | |
| 1 | CA0127920 | BOLT | 97F20172- | |
| 2 | CA0132622 | WASHER | 97F20172- | |
| 3 | CA0136122 | BRAKES LEVER | 97F20172- | |
| 4 | CA0133680 | SPRING, R.H. | 97F20172- | |
| 4 | CA0133681 | SPRING, L.H. | 97F20172- | |
| 5 | CA0137861 | BUSH | 97F20172- | |
| 6 | CA0137860 | SPACER | 97F20172- | |
| 7 | CA0137863 | BRAKES SHAFT | 97F20172- | |
| 8 | CA0032990 | O-RING | 97F20172- | |
| 9 | CA0116792 | BREATHER | 97F20172- | |
| 10 | CA0137864 | BOLT | 97F20172- | |
| 11 | CA0137858 | BRACKET | 97F20172- | |
| 12 | CA0021580 | PLUG | 97F20172- | |
| 13 | CA0138337 | LOCKING BOLT | 97F20172- | |
| 14 | CA0138338 | NUT | 97F20172- | |
| 15 | CA0133552 | SPRING | 97F20172- | |
| 16 | CA0132689 | CAM | 97F20172- | |
| SEE FIG. 3450 |
