| Item | Part No. | Part Name | Qty | Serial No. |

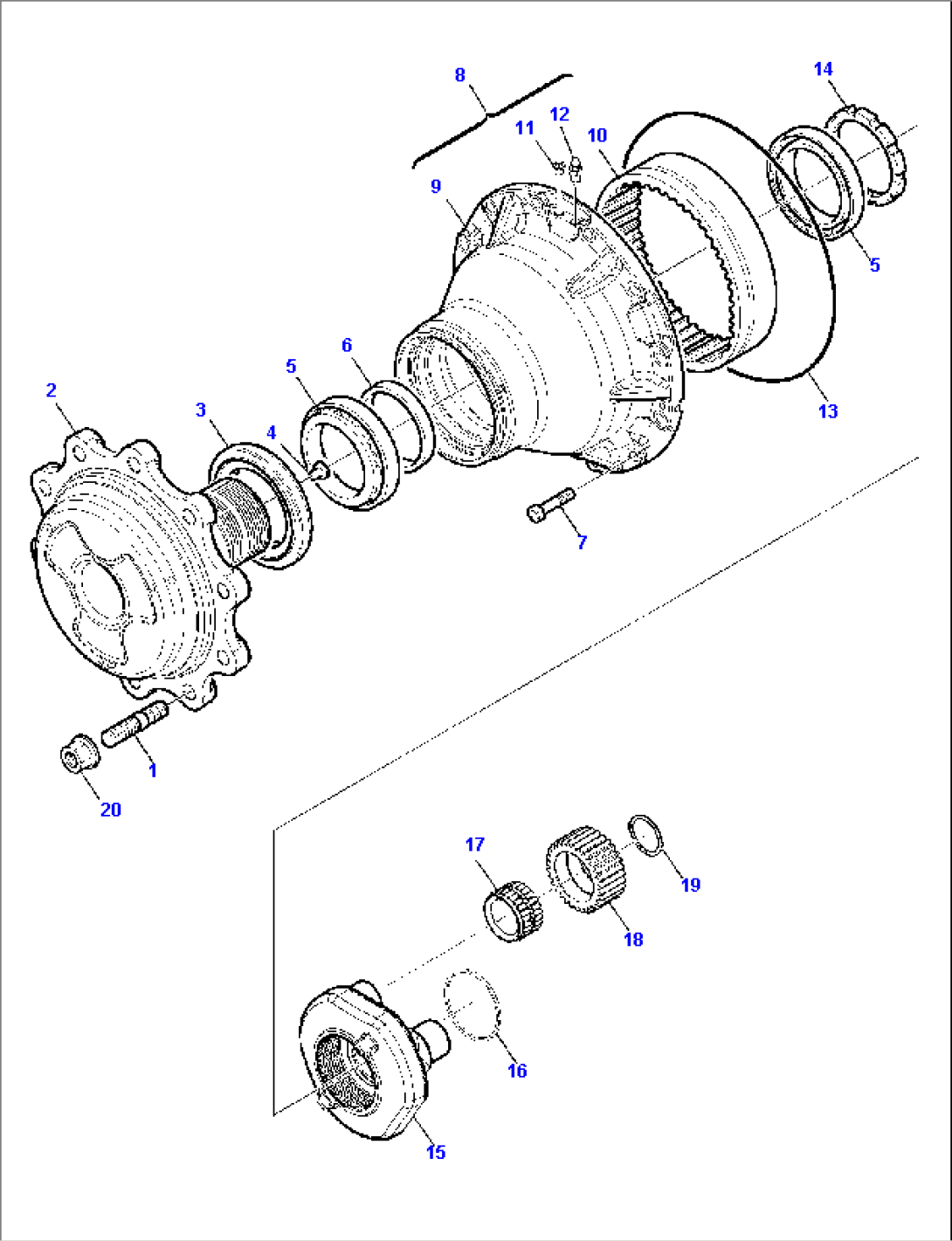

| \0 | (42N-23-11200) | REAR AXLE, ASSY. | F10003- | |
| 1 | CA0116957 | STUD | F10003- | |
| 2 | CA0148482 | FLANGE | F10003- | |
| 3 | CA0047702 | SEAL | F10003- | |
| 4 | CA0115682 | SLIDE BLOCK | F10003- | |
| 5 | CA0118370 | BEARING | F10003- | |
| 6 | CA0148942 | THRUST WASHER | F10003- | |
| 7 | CA0021967 | SCREW | F10003- | |
| 8 | CA0068353 | KIT, WHEEL HUB | F10003- | |
| 9 | \6\ | WHEEL HUB | F10003- | |
| 10 | CA0142833 | CROWN WHEEL | F10003- | |
| 11 | CA0021570 | PLUG | F10003- | |
| 12 | CA0116792 | PLUG | F10003- | |
| 13 | CA0028565 | RING | F10003- | |
| 14 | CA0148626 | RING, NUT | F10003- | |
| 15 | CA0642998 | PLANET WHEEL CARRIER | F10003- | |
| 16 | CA0642260 | RING, SNAP | F10003- | |
| 17 | CA0642513 | BEARING | F10003- | |
| 18 | CA0642529 | PLANET WHEEL | F10003- | |
| 19 | CA0024805 | RING, SNAP | F10003- | |
| 20 | CA0022381 | NUT | F10003- |
