| Item | Part No. | Part Name | Qty | Serial No. |
| M721165207050 | AXLE ASS'Y | 1001- | ||
| 1 | M721165207060 | SHAFT,AXLE | 1001- | |
| M721165207080 | WHEEL HUB ASS'Y | 1001- | ||
| 2 | M711165270800 | HUB | 1001- | |
| 3 | M023020800000 | BEARING | 1001- | |
| 4 | M710059110320 | RETAINER | 1001- | |
| 5 | M710059110330 | SEAL,OIL | 1001- | |
| 6 | M710230070710 | STUD | 1001- | |
| 7 | M018211600006 | NUT | 1001- | |
| 8 | M711165270720 | NUT,HUB | 1001- | |
| 9 | M023020600000 | BEARING | 1001- | |
| 10 | M011612400001 | WASHER | 1001- | |
| 11 | M012310050000 | WASHER,LOCK | 1001- | |
| 12 | M012300050000 | NUT | 1001- | |
| 13 | M710230070770 | COVER,HUB | 1001- | |
| 14 | M018010600106 | BOLT | 1001- | |
| 15 | M011600600006 | WASHER,SPRING | 1001- | |
| 16 | M711165272600 | DISC | 1001- | |
| 17 | M720021507270 | WHEEL | 1001- |
- Главная
- Каталог запчастей
- Другое
- Ec260z 1 s/n 1001 up
- Axle

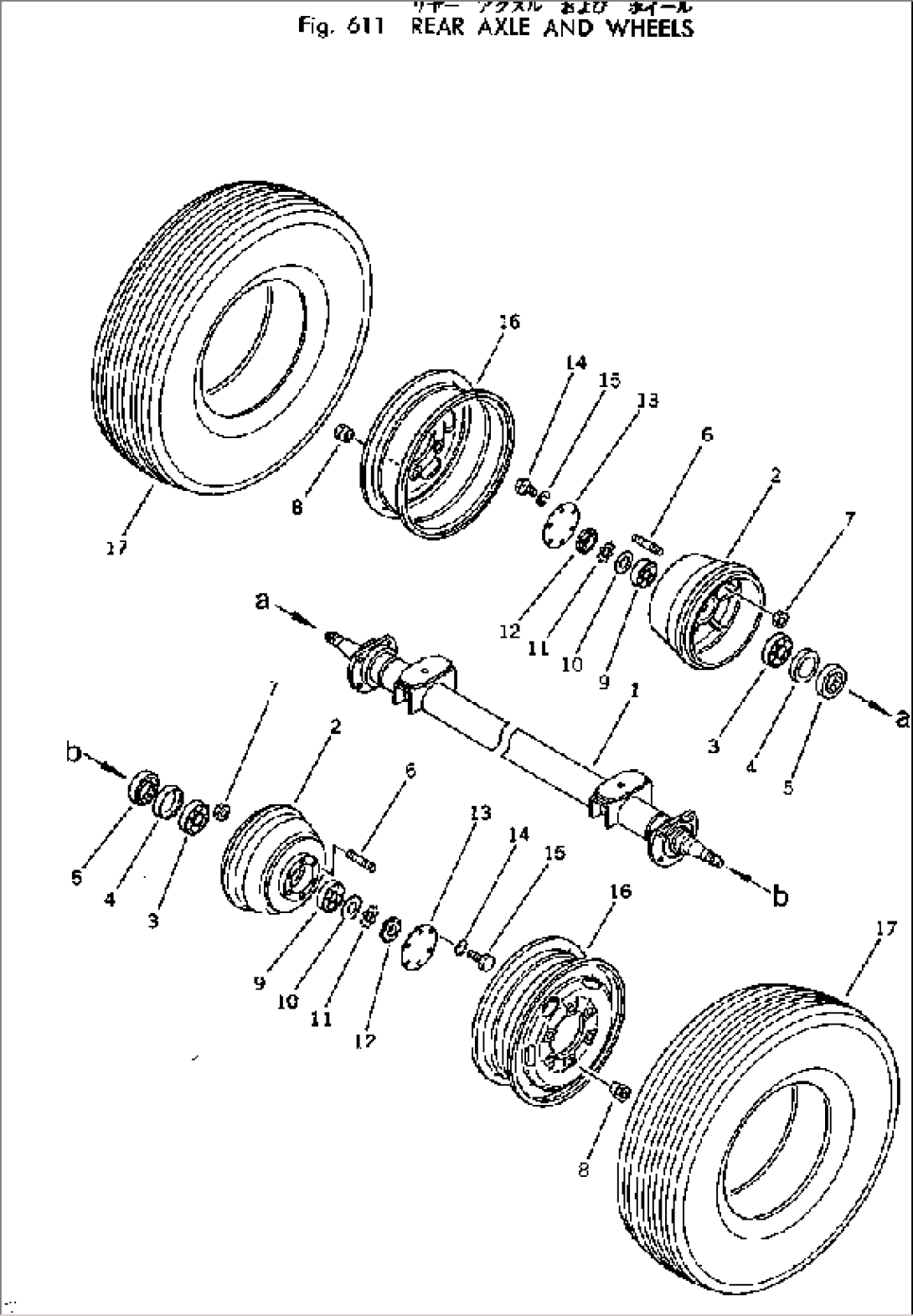

- Rear axle and wheels
